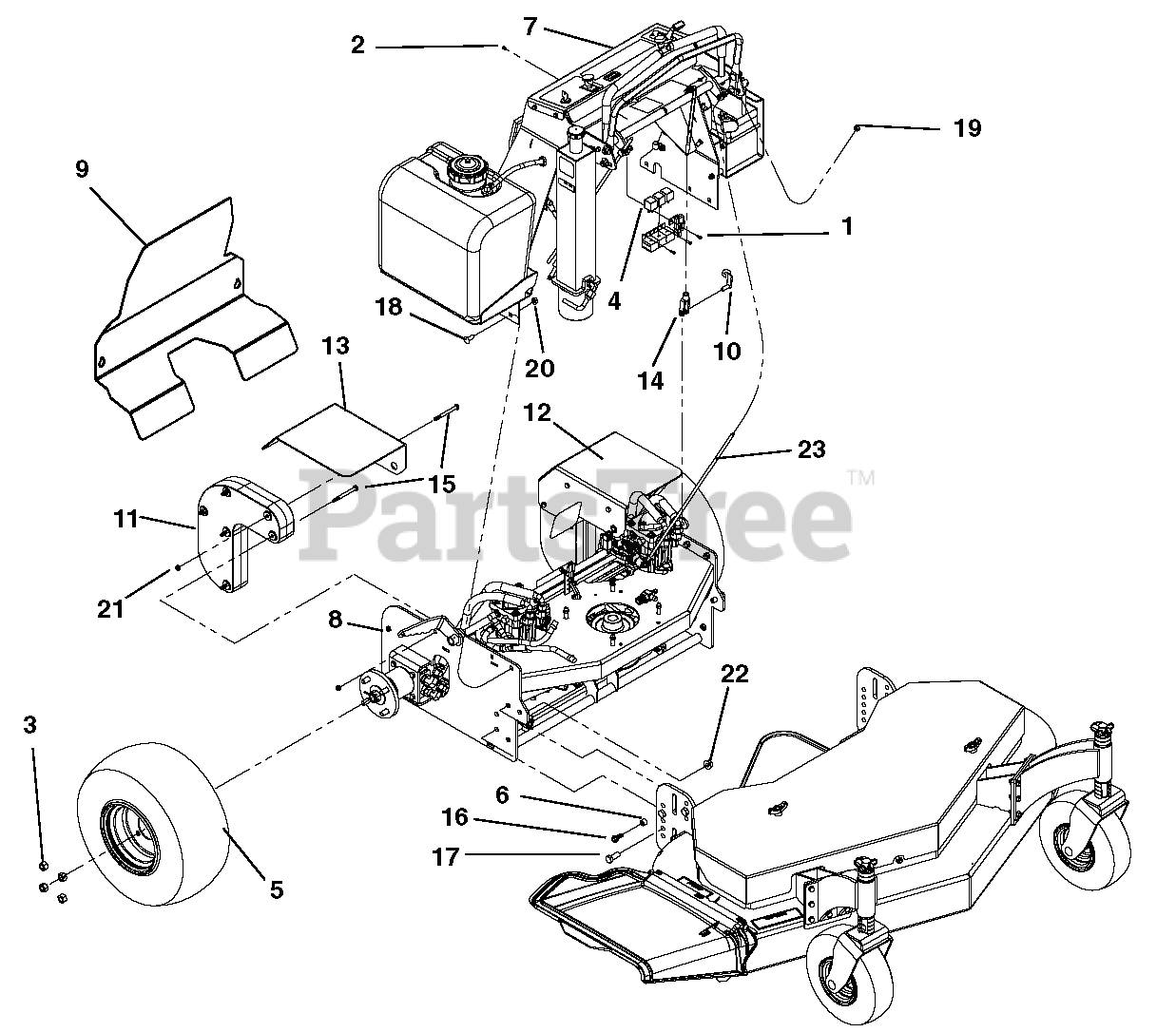

994602 (GSRKA1952S) - Great Dane Surfer Walk-Behind Mower (SN: 000101 & Above) Main Frame Assembly Parts Diagram

Surfer Walk-Behind Mower

Main Frame Assembly Parts Diagram

  • Title
1

Gravely D24020

Bolt, Hex 8-32 x .5

$

$

Not available

2

Gravely M63431

Nut, Locking, Nylon 8-32

$

$

Not available

3

Gravely 00960526

Nut, Lug .5-20
(Superseded to 06517600)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 00102770

Relay, ISO Mini Electric

$21.99

$

Usually ships in 4-12 days

0

5

Gravely 00200779

Assembly, Tire/Wheel 18/8.5 x 8

$

$

Not available

6

Gravely 00200672

Spacer, .625 x .120 x .400

$12.99

$

Usually ships in 4-12 days

0

7

Gravely N/A

Assembly, Console (See Console Components on page 21.)

Note: (See Console Components on page 21.)

$

$

Currently unavailable

8

Gravely 03731101

Power Unit (See Engine, Hydraulic and Mainframe Assembly on page 8.)

Note: (See Engine, Hydraulic and Mainframe Assembly on page 8.)

$

$

Not available

9

Gravely 03732640

Foot Guard w/Decals S/O

$

$

Not available

10

Gravely 00200658

Pin, CVS SPG 3/8" Yoke

$

$

Not available

11

Gravely 00200775

Weight, Cast Drilled

$

$

Not available

12

Gravely 00200737

Fender, LH

$

$

Not available

13

Gravely 00200739

Fender, RH

$

$

Not available

14

Gravely 00251907

Yoke, 3/8-24 RH Adjustable

$15.99

$

Usually ships in 4-12 days

0

15

Gravely 00960055

Bolt, .31-18 x 3.25 Grade 5

$

$

Not available

16

Gravely 00960044

Bolt, .38-16 x 1.00 Grade 8

$2.49

$

Usually ships in 4-12 days

0

17

Gravely 00960113

Bolt, .50-13 x 1.25 Grade 5
(Superseded to 05958900)

$3.49

$

In Stock, only 1 left!

0

18

Gravely 00963019

Bolt, Round Head Square Neck .38-16 x 1.00

$

$

Not available

19

Gravely 00964003

Nut, Hex .312-24

$

$

Not available

20

Gravely 00964016

Nut, Locking, .375-16
(Superseded to 06534900)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 00967115

Nut, Locking, Nylon .312-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

22

Gravely 00967192

Nut, Locking .50-13

$

$

Not available

23

Gravely D13029

Control Rod

$43.99

$

Usually ships in 4-12 days

0
