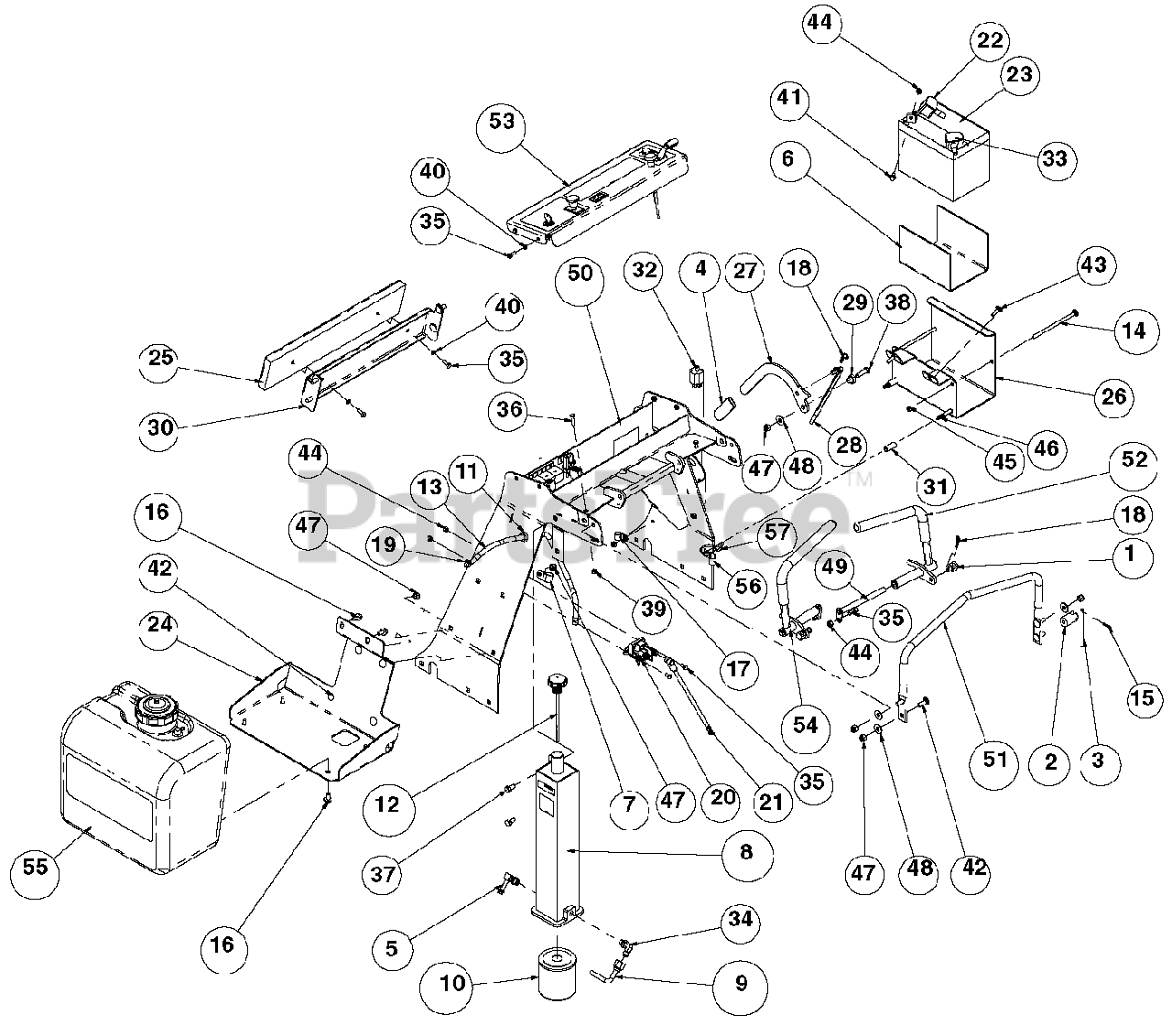

994602 (GSRKA1952S) - Great Dane Surfer Walk-Behind Mower (SN: 000101 & Above) Fuel, Hydraulic And Handle Assembly Parts Diagram

Surfer Walk-Behind Mower

Fuel, Hydraulic And Handle Assembly Parts Diagram

  • Title

1

Gravely D13028

Swivel Adjuster

$83.99

$

Usually ships in 4-12 days

0

2

Gravely D13308

Base, Lock Lever Y

$

$

Not available

3

Gravely D13309

Lever, Lock Y

$

$

Not available

4

Gravely D18079

Grip, PVC .250 x 1.00 x 3.63

$3.99

$

Usually ships in 4-12 days

0

5

Gravely D24028

Fitting, 90 9/16 MOR x 3/8 Hose

$

$

Not available

6

Gravely D28159

Strip, Battery Insulator

$15.99

$

Usually ships in 4-12 days

0

7

Gravely E53830

P-Clip, .750 Insulated

$3.99

$

Usually ships in 4-12 days

0

8

Gravely TCA15373

Reservoir, Hydraulic S/O

$

$

Not available

9

Gravely GDA10066

Elbow, Fitting

$

$

Not available

10

Gravely GDA10137

Filter, Oil

$22.99

$

In Stock, only 3 left!

0

11

Gravely 03278800

Clamp, Fuel Line

$1.49

$

In Stock, Qty 20+

0

12

Gravely TCA15122

Cap, Filler Oil

$

$

Not available

13

Gravely TCU21265

Hose, 1/4" ID Low Perm Fuel 50

$

$

Not available

14

Gravely 03H1832

Bolt, 5/16-18 x 6.00 CRG 2 Y

$

$

Not available

15

Gravely 34H60

Pin, Spring

$

$

Not available

16

Gravely 19M7865

Screw, Hex, FL,JDS123, M8 x 1.25 x 16

$

$

Not available

17

Gravely 00111886

P-Clip, .500 Insulated
(Superseded to 06900512)

$

$

Not available

18

Gravely 00121080

Pin, Hair .091 x 1.63 5/16-1/2 Y
(Superseded to 06700219)

$2.99

$

In Stock, Qty 9

0

19

Gravely 00201008

Grommet, Round Rubber .625 x .19

$

$

Not available

20

Gravely 03551000

Solenoid, 12 V Starter

$34.99

$

In Stock, Qty 15

0

21

Gravely 00180842

Cable, 12" Starter

$15.99

$

In Stock, only 1 left!

0

22

Gravely 00181148

Cable, Battery Starter - 48"

$38.99

$

Usually ships in 4-12 days

0

23

Gravely 00191832

Battery, 12V-U1-CCA270 Min
(Superseded to 01554800)

$

$

Not available

24

Gravely 00200603

Bracket, Fuel Tank Mounting

$

$

Not available

25

Gravely 00200606

Pad, Thigh

$

$

Not available

26

Gravely 00200787

Tray, Battery

$

$

Not available

27

Gravely 00200614

Lever, Brake

$

$

Not available

28

Gravely 00200615

Link. Brake Y

$28.99

$

Usually ships in 4-12 days

0

29

Gravely 00200671

Bushing, Brake Pivot Y

$

$

Not available

30

Gravely 00200690

Weldment, Thigh Pad Bracket

$

$

Not available

31

Gravely 00200692

Bushing, .364 x .540 x 1.250 Y

$

$

Not available

32

Gravely 00200705

Switch, NO-NO-NC Grey Plunger

$17.99

$

In Stock, only 1 left!

0

33

Gravely 00200777

Cable, Battery Negative 30"

$

$

Not available

34

Gravely 00313270

Fitting, 90 9/16 MOR x 9/16 MJIC

$9.49

$

Usually ships in 4-12 days

0

35

Gravely 00960001

Bolt, 1/4-20 x .750 Hex 5 Y

$

$

Not available

36

Gravely 00960002

Bolt, 1/4-20 x 1.00 Hex 5 Y
(Superseded to 05947700)

$1.49

$

In Stock, Qty 9

0

37

Gravely 00960045

Bolt, 3/8-16 x .750 Hex 5 Y
(Superseded to 05959400)

$1.49

$

In Stock, Qty 20+

0

38

Gravely 00960047

Bolt, 3/8-16 x 1.25 Hex 5 Y
(Superseded to 05958000)

$1.49

$

In Stock, Qty 20+

0

39

Gravely AA960500

Nut, 1/4-20 Standard Hex Grade 5 Y

$

$

Not available

40

Gravely AA960600

Washer, .250 Med. Spring Lock Y

$

$

Not available

41

Gravely AA963001

Bolt, 1/4-20 x .625 WSH Y

$

$

Not available

42

Gravely 00963019

Bolt, 3/8-16 x 1.00 CRG 5 SN Y

$

$

Not available

43

Gravely 00963074

Bolt, 5/16-18 x 1.00 CRG 2 Y

$

$

Not available

44

Gravely 00964040

Locknut, 1/4-20 Whiz Y

$

$

Not available

45

Gravely 00967115

Locknut, 5/16-18 Nyloc Y
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

46

Gravely 00967185

Bolt, 5/16-18 x 2.00 Round Head Square Neck 5 Y
(Superseded to 06200127)

$3.99

$

Usually ships in 4-12 days

0

47

Gravely 00968087

Locknut, 3/8-16 Nyloc Y

$

$

Not available

48

Gravely 00960702

Washer, .375 REG Flat Y
(Superseded to 06435900)

$1.49

$

In Stock, Qty 20+

0

49

Gravely 00203893

Weldment, Pin and Lock

$34.99

$

Usually ships in 4-12 days

0

50

Gravely 03740500

Great Dane Console With Decals

$

$

Not available

51

Gravely 03730751

Handle, Support

$112.99

$

Usually ships in 4-12 days

0

52

Gravely 03730900

LH Control Lever W/Grip

$

$

Not available

53

Gravely 03731503

Assembly, Control Panel w/Decals (switches sold seperately)

Note: (switches sold seperately)

$

$

Not available

54

Gravely 03731000

RH Control Lever W/Grip

$246.99

$

In Stock, only 1 left!

0

55

Gravely TCA15021

Tank, Fuel Assembly

$

$

Not available

56

Gravely AH89557

P-Clip, .50 Insulated

$5.49

$

In Stock, only 1 left!

0

57

Gravely 00111910

Cable Tie .15 x 8.50

$

$

Not available
