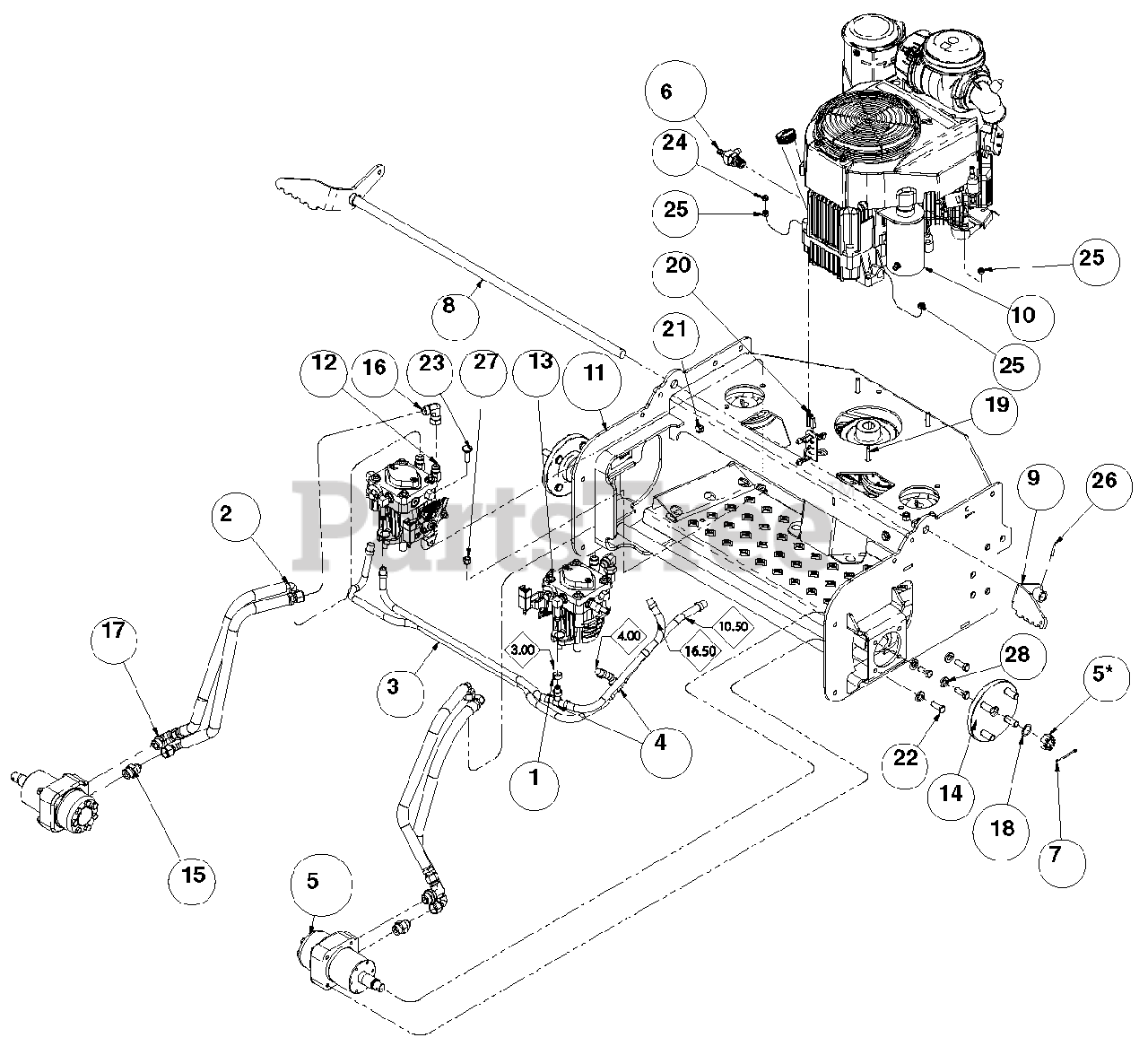

994602 (GSRKA1952S) - Great Dane Surfer Walk-Behind Mower (SN: 000101 & Above) Engine, Hydraulic And Mainframe Assembly Parts Diagram

Surfer Walk-Behind Mower

Engine, Hydraulic And Mainframe Assembly Parts Diagram

  • Title

1

Gravely D18379

Clamp, Hose - 1/2" Pinch

$3.99

$

In Stock, only 2 left!

0

2

Gravely D18394

Hose Assembly

$92.99

$

Usually ships in 4-12 days

0

3

Gravely DT5332

Hose, 3/8 SAE 30R7 Fuel & Oil

$5.99

$

Usually ships in 4-12 days

0

4

Gravely M86863

Fitting, TUN 3/8 Hose

$

$

Not available

5

Gravely 04915500

Motor, Wheel HGM-12P-7172 (*Includes Castle Nut, tighten to 163 N•m (120 lbf-ft))
(Superseded to 05015500)

Note: (*Includes Castle Nut, tighten to 163 N•m (120 lbf-ft))

$905.99

$

Usually ships in 4-12 days

0

6

Gravely TCA16240

Fitting, Oil Drain

$

$

Not available

7

Gravely 11H237

Pin, Cot .125 x 2.00 Extp Y

$

$

Not available

8

Gravely 00200612

Weldment, Brake Shaft

$

$

Not available

9

Gravely 00200616

Weldment, RH Brake Arm

$

$

Not available

10

Gravely 00200675

Engine, Kawasaki 19HP FH580V (994101, 105)

Note: (994101, 105)

$

$

Not available

Gravely 00191123

Engine, Kawasaki 23HP FH680V (994102)

Note: (994102)

$

$

Not available

11

Gravely 03731110

Weldment, Deck Frame w/Decals

$

$

Not available

12

Gravely 00200721

Assembly, HYD Pump (See Pump Components on page 14.)

Note: (See Pump Components on page 14.)

$

$

Not available

13

Gravely 00200722

Assembly, HYD Pump (See Pump Components on page 14.)

Note: (See Pump Components on page 14.)

$1612.99

$

Usually ships in 4-12 days

0

14

Gravely 00200954

Assembly, Rear Wheel Hub

$

$

Not available

15

Gravely 00231104

Fitting, ADP 3/4-16FJIC x 7/8-14MOR

$

$

Not available

16

Gravely 00231046

Fitting, ADP MJIC-FSWJIC 6500-08-08

$

$

Not available

17

Gravely 00231647

Fitting, ADP JIC-ORB 2062-10-8S

$

$

Not available

18

Gravely 00150052

Bushing, Mach., .75 x 1.25 x .048

$

$

Not available

19

Gravely 00960025

Bolt, .3125-18 x 1.50 Hex 5 Y

$

$

Not available

20

Gravely 00960026

Bolt, .3125-18 x 1.75 Hex 5 Y
(Superseded to 05901804)

$2.99

$

In Stock, Qty 8

0

21

Gravely 00960044

Bolt, .375-16 x 1.00 FGH 8 Y

$2.49

$

Usually ships in 4-12 days

0

22

Gravely 00960046

Bolt, .375-16 x 1.00 Hex 5 Y
(Superseded to 05948700)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 00963053

Bolt, .375-16 x 1.25 CRG 5 Y

$

$

Not available

24

Gravely 00967034

Nut, .3125-18 JAM GR5 Y

$

$

Not available

25

Gravely 00967115

Locknut, .3125-18 Nyloc Y
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

26

Gravely 00967155

Pin, Roll .156 x 1.00

$

$

Not available

27

Gravely 00968087

Locknut, .375-16 Nyloc Y

$

$

Not available

28

Gravely 00960602

Washers, .375 Medium Spring Lock

$

$

Not available
