994601 (GSRKA1948S) - Great Dane Surfer Walk-Behind Mower (SN: 000101 & Above) Foot Plate Parts Diagram

Surfer Walk-Behind Mower

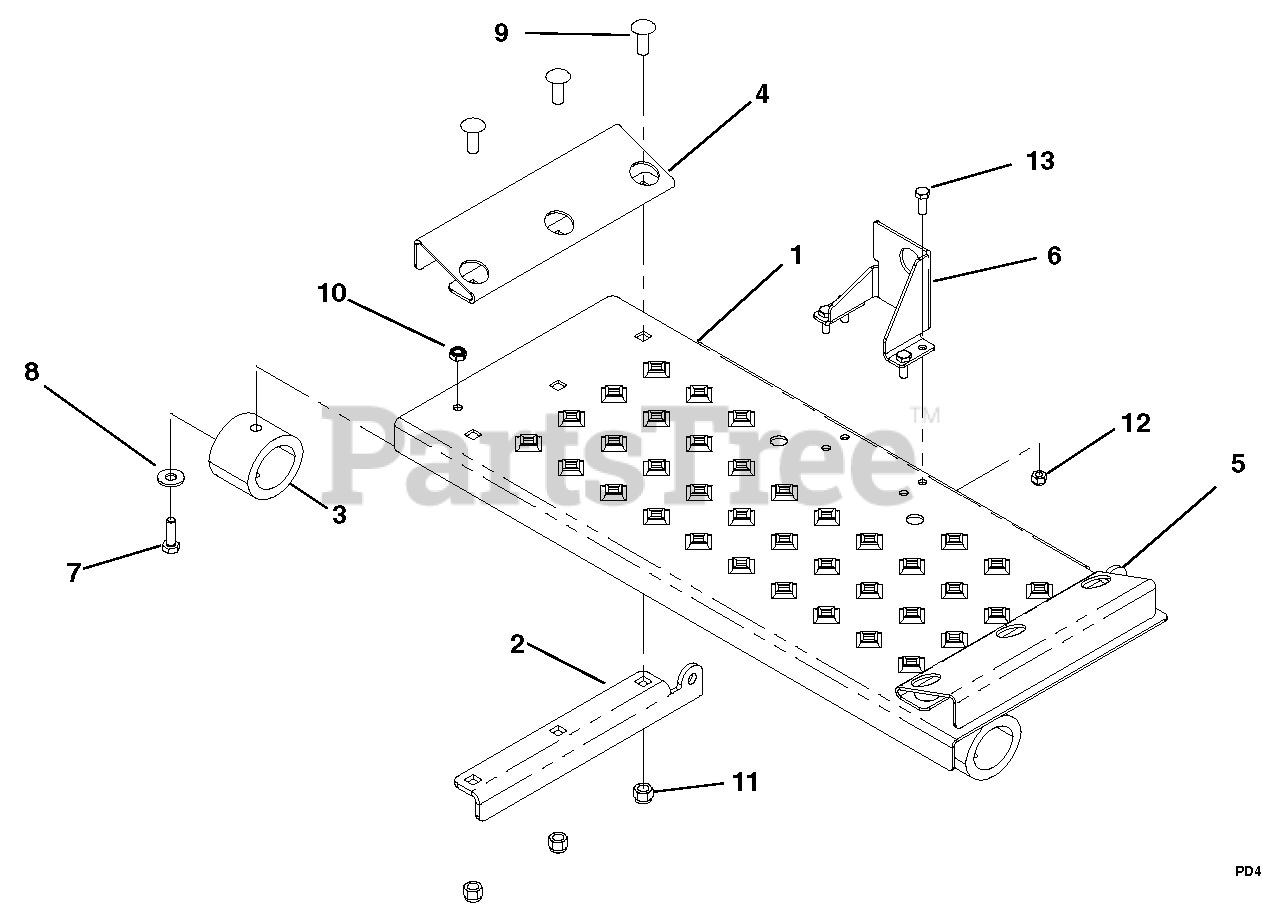

Foot Plate Parts Diagram

  • Title

1

Gravely 00200618

Plate, Platform

$

$

Not available

2

Gravely 00200619

Plate, Platform Tab RH

$

$

Not available

3

Gravely 00200655

Bumper, Miner GBR-6

$

$

Not available

4

Gravely 00200691

Wedge, Platform

$

$

Not available

5

Gravely 00200693

Plate, Platform Tab LH

$

$

Not available

6

Gravely 00200767

Anchor, OPC

$

$

Not available

7

Gravely 00960023

Bolt, Hex .31-18 x 1.00 Grade 5

$

$

Not available

8

Gravely 00960701

Washer, Flat, Steel .38 x .875 x .083
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 00963019

Bolt, Round Head Square Neck .38 x 1.00

$

$

Not available

10

Gravely 00967115

Locknut, .312-18 Nyloc
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 00968087

Locknut, .38-16 Nyloc

$

$

Not available

12

Gravely 00964048

Locknut, .25-20 Nyloc

$

$

Not available

13

Gravely 00960001

Bolt, .25-20 x .750 Hex 5

$

$

Not available
