994600 (GSRKW2352S) - Great Dane Surfer Walk-Behind Mower (SN: 000101 & Above) Hydraulic Components Parts Diagram

Surfer Walk-Behind Mower

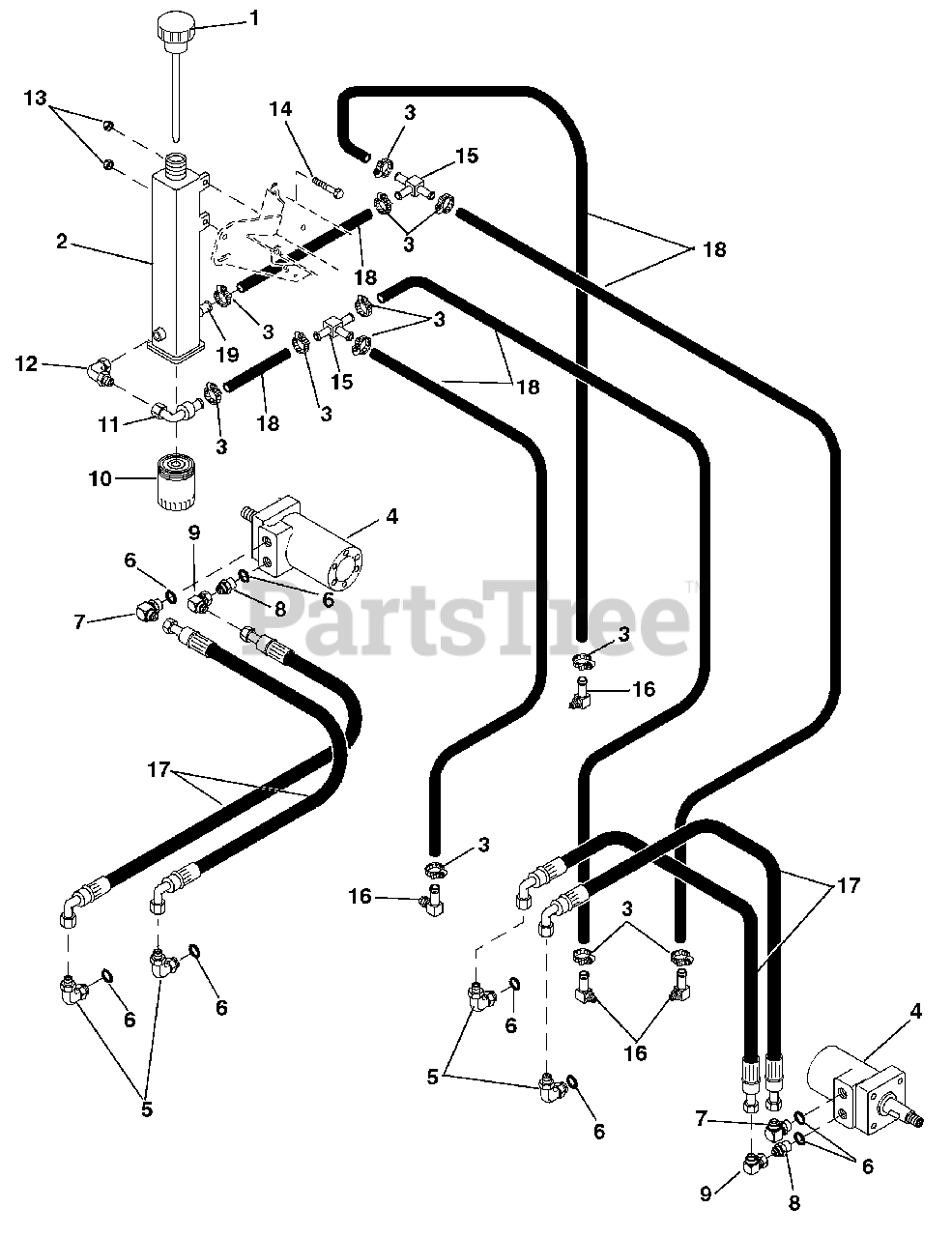

Hydraulic Components Parts Diagram

  • Title

1

Gravely TCA15122

Cap

$

$

Not available

2

Gravely TCA15373

Hydraulic Reservoir, Includes Decal

$

$

Not available

3

Gravely D18379

Hose Clamp

$3.99

$

In Stock, only 2 left!

0

4

Gravely TCA15078

Wheel Motor

$

$

Not available

5

Gravely D14196

Fitting, Includes O-Ring

$5.99

$

Usually ships in 4-12 days

0

6

Gravely R26375

O-Ring, Included With Fitting

$3.99

$

Usually ships in 4-12 days

0

7

Gravely 00231647

Adapter, 7/8 ORB x 3/4JIC x 90

$

$

Not available

8

Gravely 00231104

Adapter, Hydraulic, 3/4-16MJIC x 7/8-14 MOR

$

$

Not available

9

Gravely 00231046

Adapter, 3/4 FESW x 3/4 MJIC x 90

$

$

Not available

10

Gravely GDA10137

Element, Oil Filter

$22.99

$

In Stock, only 3 left!

0

11

Gravely GDA10066

Elbow Fitting

$

$

Not available

12

Gravely 00313270

Adapter 2503-6-6

$9.49

$

Usually ships in 4-12 days

0

13

Gravely 00968087

Nut, Locking, Nylon 3/8-16

$

$

Not available

14

Gravely 00960045

Bolt, Hex 3/8-16 x 3/4 Grade 5
(Superseded to 05959400)

$1.49

$

In Stock, Qty 20+

0

15

Gravely M86863

Tee Fitting

$

$

Not available

16

Gravely D24028

Fitting, Adapter .562-18 Steel Thread

$

$

Not available

17

Gravely D18394

Hose, High Pressure

$92.99

$

Usually ships in 4-12 days

0

18

Gravely DT5332

Hose, Return, 25 Ft Black - Cut to Length

$5.99

$

Usually ships in 4-12 days

0

19

Gravely GDA10065

Adapter, Straight Fitting

$

$

Not available

Gravely 00879100

Tie Straps

$

$

Not available
