994401 (EFZKA1934S) - EverRide Pro Walk-Behind Mower (SN: 000101 & Above) Wheel and Strut Parts Diagram

Pro Walk-Behind Mower

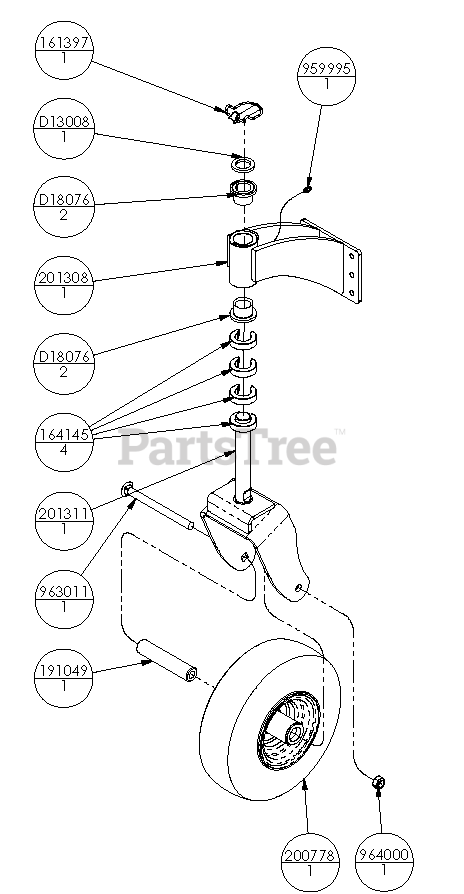

Wheel and Strut Parts Diagram

  • Title
1

Gravely D13008

BUSHING, 1.03 X 1.50 X .179 Y

$9.99

$

In Stock, only 2 left!

0

2

Gravely D18076

BRG, FLG 1.00X1.25X1.00

$6.99

$

In Stock, only 3 left!

0

3

161397

PIN, LNC .438 X 2.00 Y

$

$

Not available

4

164145

C-SPACER, 1.00 X 1.77 X .500

$

$

Not available

5

191049

TUBE, RD 1.00X.500X4.76

$

$

Not available

6

200778

WHEEL, FRONT 11X4X5 SLV MIST

$

$

Not available

7

201308

WLDT, CASTER MOUNT BRACKET 34

$

$

Not available

8

201311

WLDT, FR WHEEL FORK

$

$

Not available

9

963011

BOLT, 1/2-13X6.00 CRG Y

$

$

Not available

10

Gravely 964000

LOCKNUT, 1/2-13 CROWN Y

$

$

Not available

11

959995

FTG, 1/4-28 STRGT GREASE ZERK

$

$

Not available
