994401 (EFZKA1934S) - Ariens Scorpion 34" Stand-On Mower, 19hp Kawasaki (SN: 000101 & Above) Wheel and Strut Parts Diagram
Scorpion 34" Stand-On Mower, 19hp Kawasaki

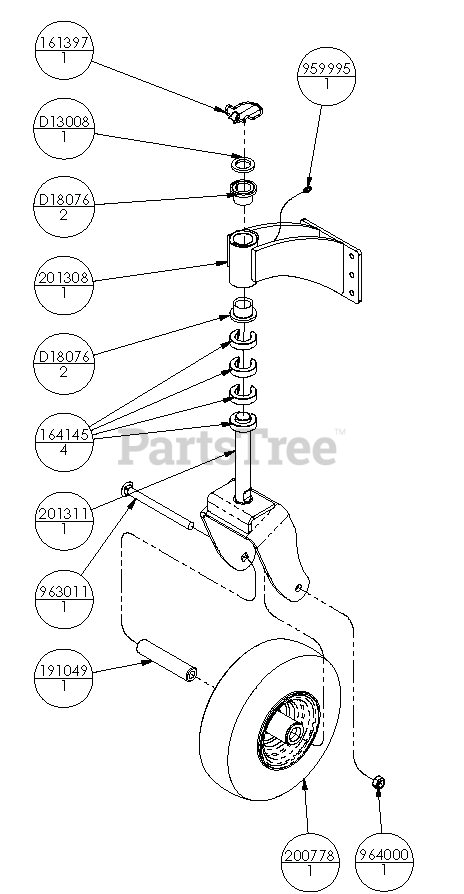

Wheel and Strut Parts Diagram
Ariens D13008
BUSHING, 1.03 X 1.50 X .179 Y
$9.99
$
In Stock, only 2 left!
Ariens D18076
BRG, FLG 1.00X1.25X1.00
$6.99
$
In Stock, only 3 left!
Ariens 00161397
PIN, KLIK .438X2.00
$9.49
$
In Stock, only 2 left!
Ariens 00164145
C-SPACER, 1.00 X 1.77 X .500
$3.99
$
In Stock, Qty 6
Ariens 00191049
TUBE, RD 1.00X.500X4.76
$51.99
$
In Stock, only 2 left!
Ariens 00200778
WHEEL, FRONT 11X4X5
$113.99
$
In Stock, only 1 left!
Ariens 00201308
WLDT, CASTER MOUNT BRKT EVRIDE
$
$
Not available
Ariens 00201311
WLDT, FR WHEEL FORK EVERRIDE
$
$
Not available
$9.49
$
In Stock, only 2 left!
Ariens 964000
LOCKNUT, 1/2-13 CROWN Y
$
$
Not available
Ariens 00959995
FTG, 1/4-28 STRGT GREASE ZERK
$3.49
$
Usually ships in 4-12 days
