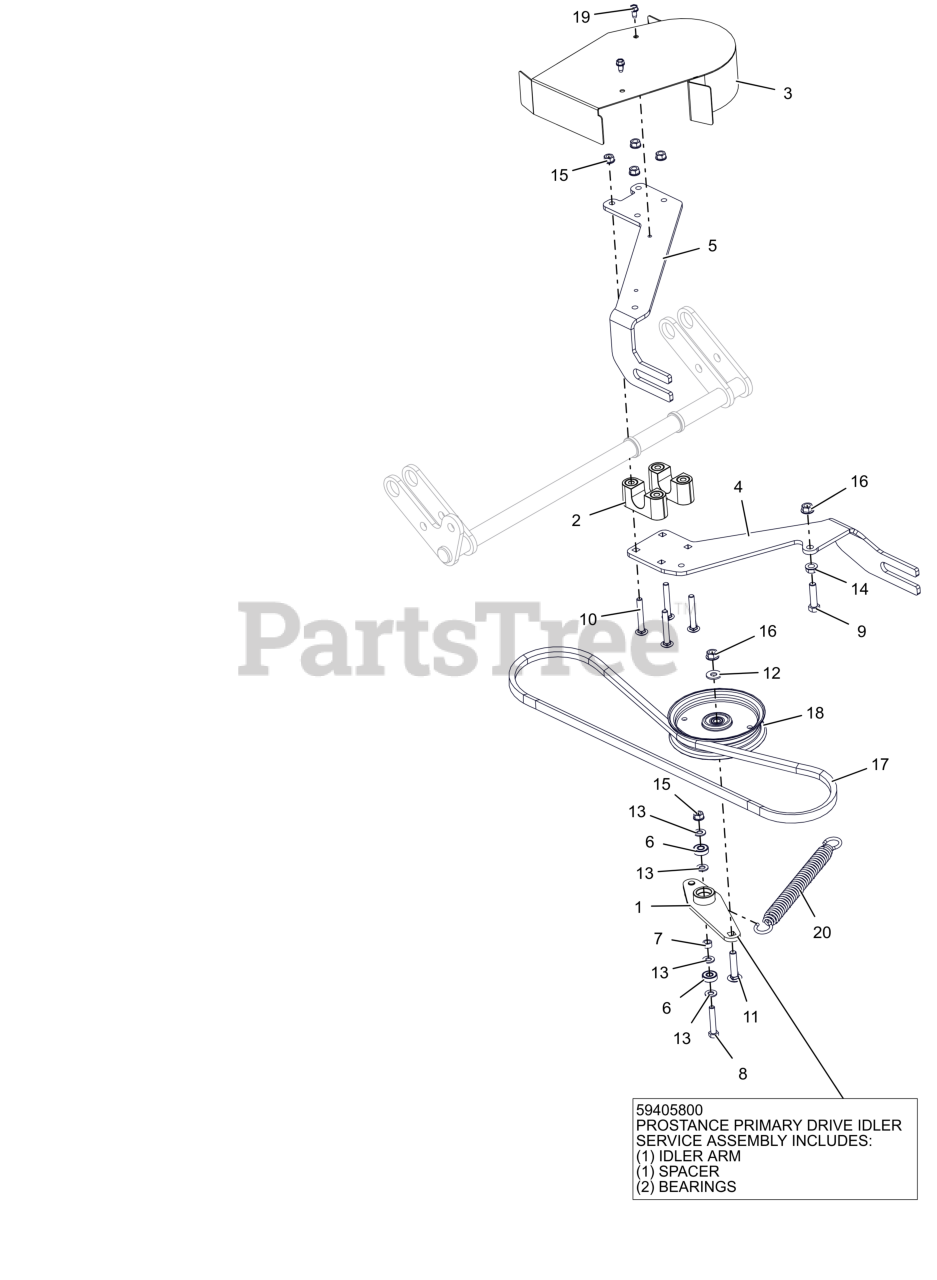

994303 - Ariens Arrow 36" Stand-On Mower, Kawasaki FS (SN: 000101 & Above) Pivoting Idler Parts Diagram

Arrow 36" Stand-On Mower, Kawasaki FS

Pivoting Idler Parts Diagram

  • Title

1

Ariens 05266800

WLDMT, IDLER ARM

$56.99

$

Usually ships in 4-12 days

0

1

Ariens 59405800

PROSTANCE PRIMARY DRIVE IDLER ASSEMBLY

Note: Component Service Assembly includes items 1, 6 and 7

$103.99

$

Usually ships in 4-12 days

0

2

Ariens 07500414

ASM-BUSHING, DECK LIFT

$22.99

$

In Stock, only 4 left!

0

3

Ariens 30177051

WLDMT, TOP IDLER GUARD

$

$

Currently unavailable

4

Ariens 05266651

BRKT, PIVOTING IDLER (BLACK)

$45.99

$

Usually ships in 4-12 days

0

5

Ariens 05266751

BRKT, UPPER PIVOTING IDLER (BLACK)

$68.99

$

Usually ships in 4-12 days

0

6

Ariens 05400719

BRG-BALL .315X.866X.276(608)

$3.99

$

In Stock, only 2 left!

0

7

Ariens 05501408

SPACER, .329/.334 X .500/.505 X .283

$12.99

$

Usually ships in 4-12 days

0

8

Ariens 05901804

BLT, HEX .31-18X1.75 G5 ZCC

$2.99

$

In Stock, Qty 7

0

9

Ariens 05901928

BLT, HEX .38-16X1.50 G5 ZCC

$1.49

$

In Stock, Qty 12

0

10

Ariens 06200311

BLT, RHSSN.31-18X2.25 G5 ZCC

$3.99

$

Usually ships in 4-12 days

0

11

Ariens 06200329

BLT, RHSSN .38-16X1.75 G5 ZCC

$3.99

$

In Stock, Qty 9

0

12

Ariens 06401023

WSHR,FLT .375X.875X.083 ZCC

$1.49

$

In Stock, Qty 20+

0

13

Ariens 06401113

WSHR, HRDN 0.344X0.688X0.065

$4.99

$

Usually ships in 4-12 days

0

14

Ariens 06500735

NUT, SPNLK-FLG .38-16 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

15

Ariens 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

16

Ariens 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

17

Ariens 07200831

V-BELT, 5L RAW EDGE EPDM

$47.99

$

In Stock, Qty 20+

0

18

Ariens 07351200

IDLER- FLAT - 5.00" X .75"

$40.99

$

In Stock, Qty 20+

0

19

Ariens 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

20

Ariens 08300728

SPRING- EXTENSION

$26.99

$

In Stock, Qty 20+

0
