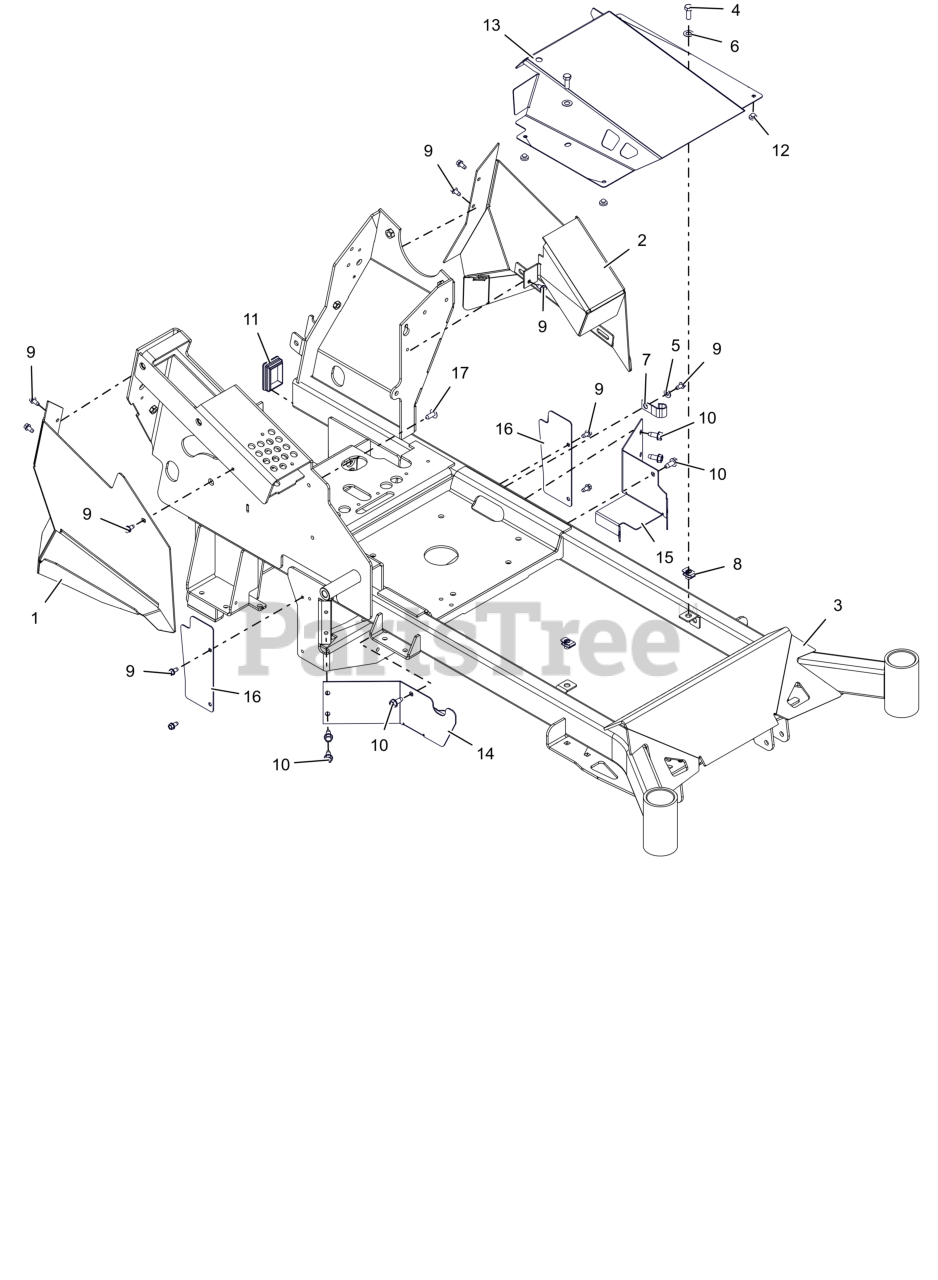

994303 - Ariens Arrow 36" Stand-On Mower, Kawasaki FS (SN: 000101 & Above) Frame, Fenders and Guards Parts Diagram

Arrow 36" Stand-On Mower, Kawasaki FS

Frame, Fenders and Guards Parts Diagram

  • Title

1

Ariens 05265051

WLDMT, RH 32-36" FENDER (BLACK)

$

$

Currently unavailable

2

Ariens 05265100

WLDMT, LH FENDER (BLACK)

$

$

Currently unavailable

3

Ariens 09691359

WLDMT, ARROW 32" - 36" FRAME (ORANGE)

$

$

Currently unavailable

4

Ariens 05901801

BLT, HEX .31-18X.875 G5 ZCC

$2.49

$

In Stock, Qty 11

0

5

Ariens 06401001

WSHR,FLT .281X.625X.065 ZCC

$0.99

$

In Stock, Qty 8

0

6

Ariens 06401107

WSHR, FLT .385X.745X.030 ZCC

$2.49

$

In Stock, only 1 left!

0

7

Ariens 06916000

J-CLAMP

$2.49

$

Usually ships in 4-12 days

0

8

Ariens 07000829

NUT-CLIP RETAINER 5/16-18X.56

$2.49

$

In Stock, Qty 20+

0

9

Ariens 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

10

Ariens 07400127

SCR,TAP .312-18X.75 HWH TR ZCC

$1.49

$

In Stock, Qty 6

0

11

Ariens 07500432

PLUG, RECT 1.575 x 2.362

$

$

Currently unavailable

12

Ariens 07503100

BUMPER GROMMET

$3.49

$

In Stock, only 3 left!

0

13

Ariens 09691559

COVER, BELT CE (ORANGE)

$

$

Currently unavailable

14

Ariens 09692251

BRKT, TRANSAXLE GUARD RH (BLACK)

$

$

Currently unavailable

15

Ariens 09692351

BRKT, TRANSAXLE GUARD LH (BLACK)

$

$

Currently unavailable

16

Ariens 30174251

TRANSAXLE CE GUARD (BLACK)

$

$

Currently unavailable

17

Ariens P80-332-A

XMAS TREE FASTNER-BLACK

$2.49

$

Usually ships in 4-12 days

0
