994303 - Ariens Arrow 36" Stand-On Mower, Kawasaki FS (SN: 000101 & Above) Deck, Belt, Blades and Spindles - 36" Parts Diagram
Arrow 36" Stand-On Mower, Kawasaki FS

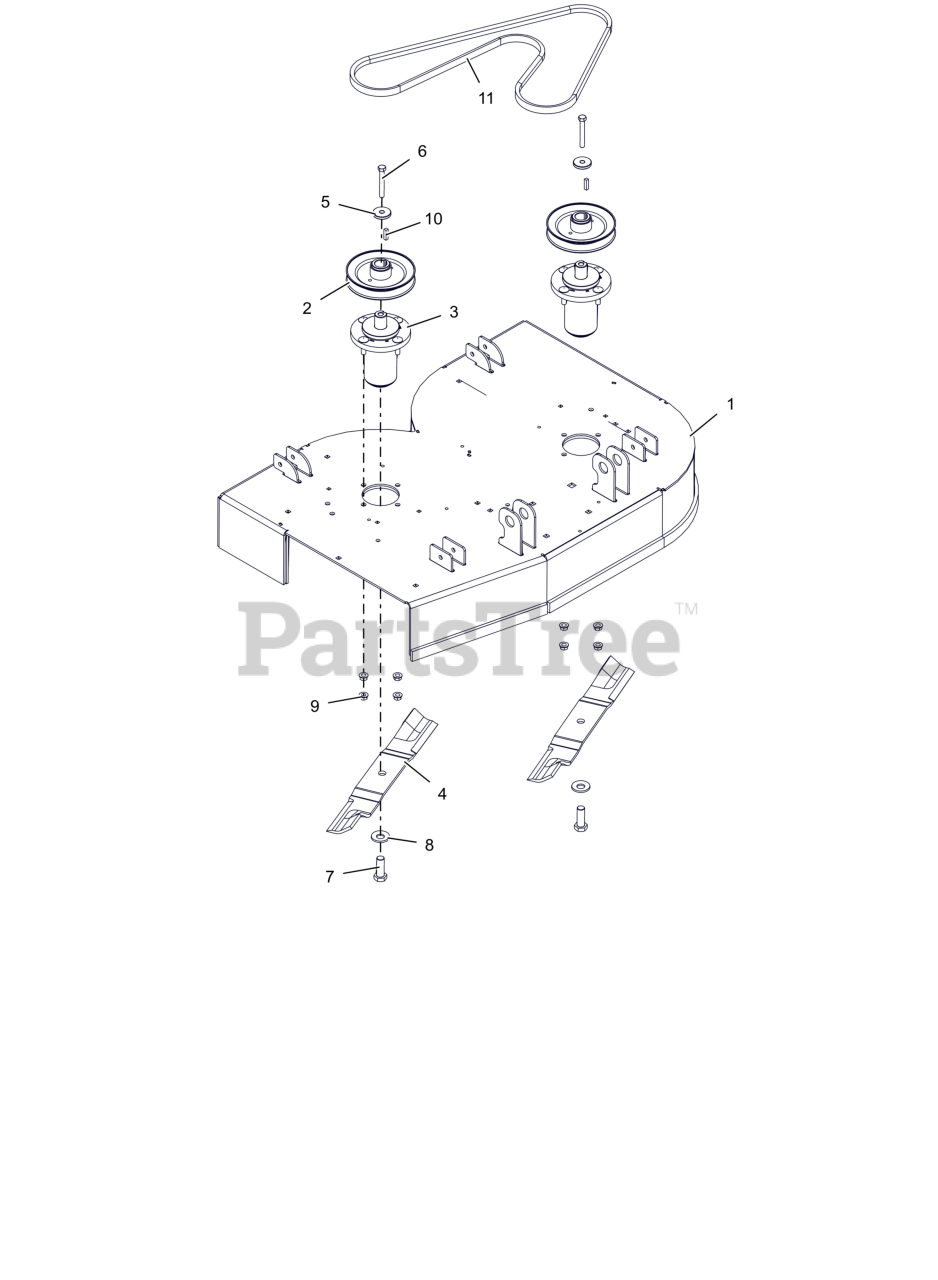

Deck, Belt, Blades and Spindles - 36" Parts Diagram
Ariens 30142059
WLDMT, 36" ARROW DECK (ORANGE)
$
$
Currently unavailable
Ariens 07329300
PULLEY- V-1.000 ID X 5.750 OD
$68.99
$
In Stock, Qty 13
Ariens 58810800
ASM, MAINT FREE ALUM SPINDLE
$239.99
$
In Stock, Qty 20+
Ariens 00450300
BLADE, 18.00" MOWER (HI-LIFT)
$29.99
$
In Stock, Qty 20+
Ariens 04530500
RETAINER, SHEAVE
$7.99
$
In Stock, Qty 20+
Ariens 05901813
BLT, HEX .38-16X2.75 G8 ZCC
$1.49
$
In Stock, Qty 20+
Ariens 05901822
BLT, HEX .62-18X1.75 G8 ZCC
$3.49
$
In Stock, Qty 20+
Ariens 06445700
WSHR-BLVL .669X1.535X.138
$4.99
$
In Stock, Qty 20+
Ariens 06500901
NUT-LK-CTR-FLG .375-16 GF ZCC
$1.49
$
In Stock, Qty 20+
Ariens 06611200
KEY, SQ .25X.25X1.00 RC 40-50
$2.99
$
In Stock, Qty 20+
Ariens 07200832
V-BELT, 5L RAW EDGE EPDM
$
$
Currently unavailable
