994302 - Ariens Arrow 32" Stand-On Mower, Kawasaki FS (SN: 000101 & Above) Operator Platform Parts Diagram

Arrow 32" Stand-On Mower, Kawasaki FS

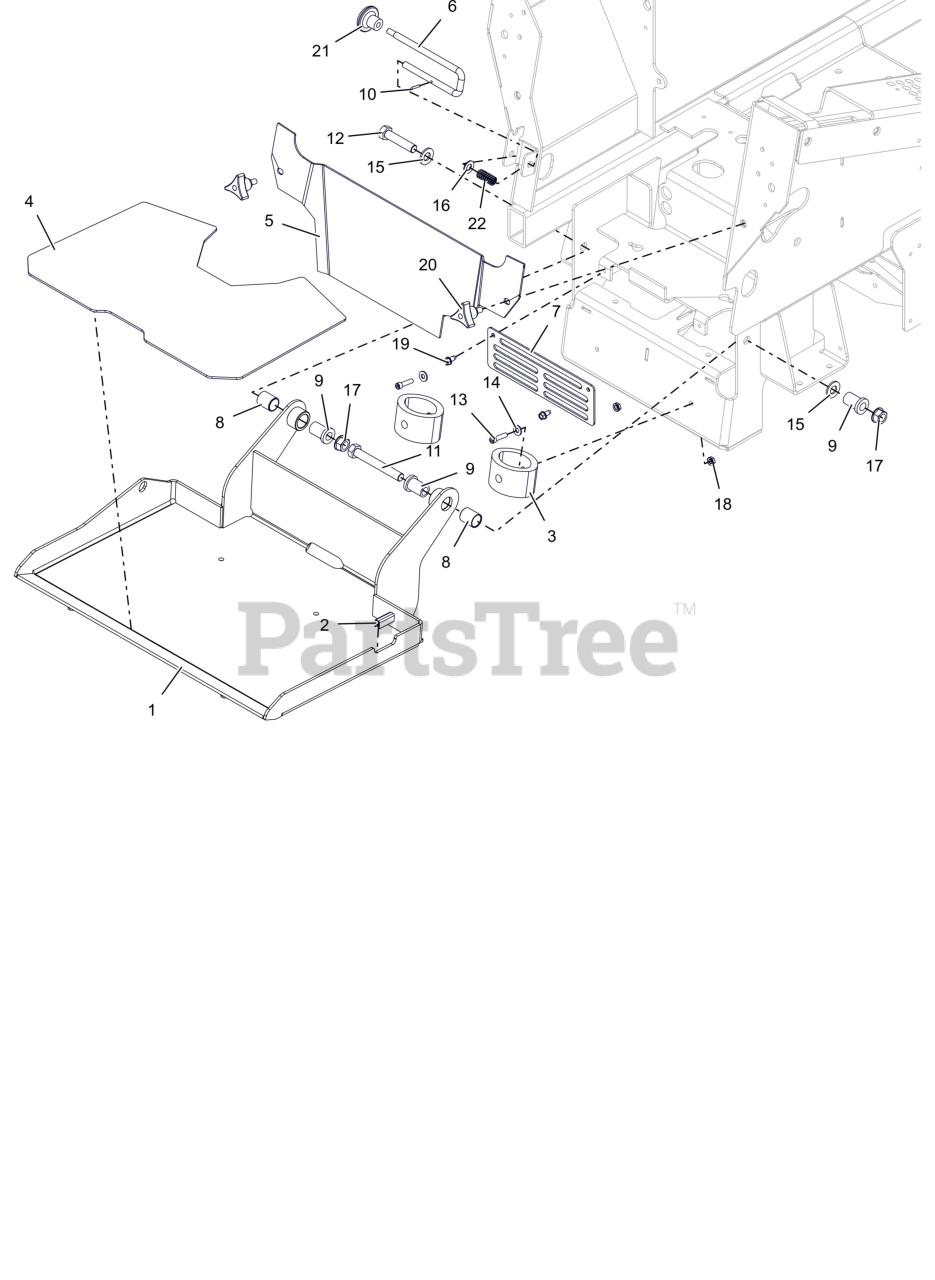

Operator Platform Parts Diagram

  • Title

1

Ariens 05260151

PLATFORM, 32-36" OPERATOR (BLACK)

$

$

Currently unavailable

2

Ariens 00918200

STRIP, COWL

$5.99

$

Usually ships in 4-12 days

0

3

Ariens 05255200

BUMPER, PLATFORM

$33.99

$

Usually ships in 4-12 days

0

4

Ariens 05258700

TAPE, OPERATOR PLATFORM GRIP

$

$

Currently unavailable

5

Ariens 05265851

COVER, REAR TOWER (BLACK)

$

$

Currently unavailable

6

Ariens 05266400

PIN, PLATFORM LOCK

$

$

Currently unavailable

7

Ariens 05268559

GUARD, FOOT (ORANGE)

$

$

Currently unavailable

8

Ariens 05435900

BRG, .750 X .875 X 1.000

$5.99

$

In Stock, Qty 20+

0

9

Ariens 05527200

BSHG-FLG .515X.746X1.290X1.000

$30.99

$

Usually ships in 4-12 days

0

10

Ariens 05803400

PIN-ROLL .125X.75

$0.99

$

In Stock, only 3 left!

0

11

Ariens 05901703

BLT,HEX .50-13X3.75 G5 ZCC

$5.99

$

In Stock, only 4 left!

0

12

Ariens 05901835

BLT, HEX .50-13X2.25 G5 ZCC

$3.49

$

In Stock, Qty 5

0

13

Ariens 05902033

SCR, SKH .25-20X1.00

$1.49

$

Usually ships in 4-12 days

0

14

Ariens 06401001

WSHR,FLT .281X.625X.065 ZCC

$0.99

$

In Stock, Qty 8

0

15

Ariens 06401015

WSHR,FLT .531X1.062X.095 ZCC

$0.99

$

In Stock, Qty 14

0

16

Ariens 06401129

WSHR,FLT-HRD.406X.812X.055 MZC

$1.49

$

In Stock, only 2 left!

0

17

Ariens 06500902

NUT-LK-CTR-FLG .500-13 GG ZCC

$1.49

$

In Stock, Qty 20+

0

18

Ariens 06500921

NUT-KEPS .250-20 ZCC

$1.49

$

In Stock, only 1 left!

0

19

Ariens 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

20

Ariens 07500008

KNOB,WING STUD 5/16-18 X .75

$5.99

$

In Stock, Qty 20+

0

21

Ariens 07539900

KNOB, PUSH -PULL .312-18

$

$

Currently unavailable

22

Ariens 08300028

SPRING, COMPRESSION

$4.99

$

In Stock, Qty 20+

0
