994302 - Ariens Arrow 32" Stand-On Mower, Kawasaki FS (SN: 000101 & Above) Electrical Parts Diagram

Arrow 32" Stand-On Mower, Kawasaki FS

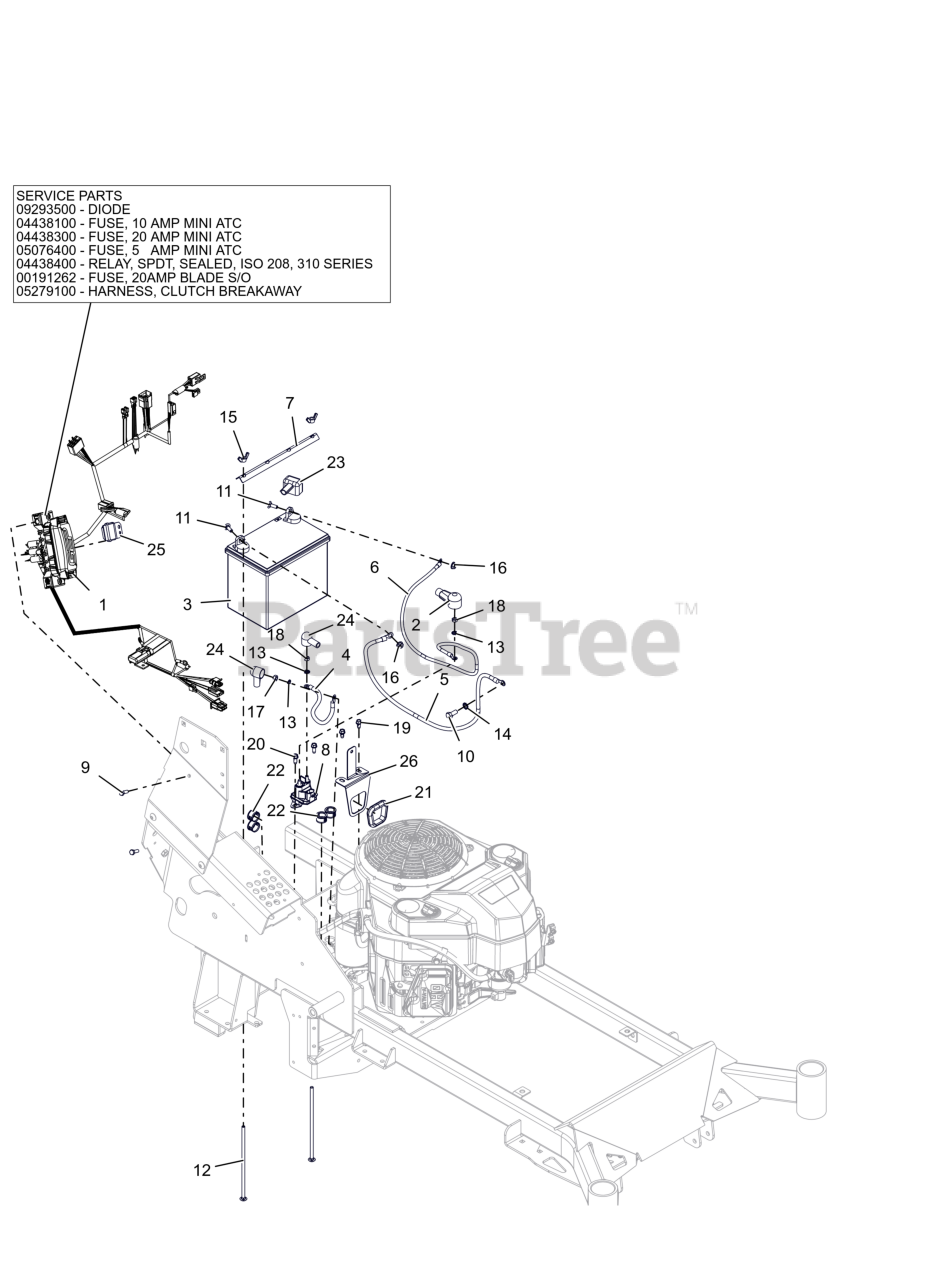

Electrical Parts Diagram

  • Title

1

Ariens 05189700

HARNESS, WIRE PROSTANCE 2019

$

$

Currently unavailable

1

Ariens 09293500

DIODE, CONNECTOR SHELL
(Superseded to 09293501)

Note: Component Service Part

$11.99

$

In Stock, Qty 20+

0

1

Ariens 04438100

FUSE,10 AMP MINI-ATC

Note: Component Service Part

$4.99

$

Usually ships in 4-12 days

0

1

Ariens 04438300

FUSE,20 AMP MINI ATC

Note: Component Service Part

$4.99

$

Usually ships in 4-12 days

0

1

Ariens 05076400

FUSE, 5 AMP MINI-ATC

Note: Component Service Part

$2.49

$

Usually ships in 4-12 days

0

1

Ariens 04438400

RELAY,MICRO5 TERML W/RESISTOR

Note: Component Service Part

$19.99

$

In Stock, Qty 11

0

1

Ariens 00191262

FUSE, 20 AMP BLADE S/O

Note: Component Service Part

$14.99

$

In Stock, only 1 left!

0

1

Ariens 05279100

HARNESS, CLUTCH BREAKAWAY

Note: Component Service Part

$

$

Currently unavailable

2

Ariens 00525800

BOOT, BATTERY TERMINAL-RED

$7.99

$

Usually ships in 4-12 days

0

3

Ariens 01554800

BATTERY, 300 CCA 10U1L

$

$

Not available

4

Ariens 03286000

CABLE-POSITIVE BATTERY 9.00"

$7.99

$

In Stock, only 2 left!

0

5

Ariens 03288100

CABLE-NEGATIVE BATTERY 24.00"

$17.99

$

In Stock, only 2 left!

0

6

Ariens 03288400

CABLE-POSITIVE BATTERY 26.00"

$18.99

$

Usually ships in 4-12 days

0

7

Ariens 03494051

HOLD DOWN

$11.99

$

In Stock, only 2 left!

0

8

Ariens 04781700

SOLENOID, STARTER (SEALED)

$44.99

$

In Stock, Qty 20+

0

9

Ariens 05901610

BLT,HEX M6-1X20 G8.8 ZC120

$2.49

$

Usually ships in 4-12 days

0

10

Ariens 05901628

BLT, HEX M8-1.25X20 G8.8 ZCC

$1.49

$

Usually ships in 4-12 days

0

11

Ariens 06200307

BLT, RHSN .25-20X.750 G5 ZCC

$0.99

$

In Stock, Qty 6

0

12

Ariens 06200424

BLT, RHSN .25-20X7.50 G5 ZCC

$4.99

$

In Stock, Qty 20+

0

13

Ariens 06300118

WSHR,LK-EXT.262X.502X.026 ZCC

$0.99

$

Usually ships in 4-12 days

0

14

Ariens 06300125

WSHR,LK-EXT .326X.599X.031 ZCC

$0.99

$

In Stock, only 1 left!

0

15

Ariens 06500805

NUT- LK-WING .25-20 ZCC

$4.99

$

In Stock, Qty 5

0

16

Ariens 06500824

NUT-SPNLK-FLG .25-20 ZC120

$0.99

$

In Stock, Qty 20+

0

17

Ariens 06500916

NUT-STD .250-20 G2 ZCC

$0.99

$

In Stock, Qty 9

0

18

Ariens 06500925

NUT-STD M6-1.0 ZCC

$0.99

$

Usually ships in 4-12 days

0

19

Ariens 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

20

Ariens 07400135

SCR,TAP .25-20X.625 HWH ZCC

$2.49

$

In Stock, only 3 left!

0

21

Ariens 07500017

GROMMET 1.70ID X 2.0OD

$5.49

$

Usually ships in 4-12 days

0

22

Ariens 07500126

BUSH, PANEL SNAP .687X.875X.56

$3.99

$

In Stock, only 2 left!

0

23

Ariens 07505700

INSULATOR

$9.49

$

Usually ships in 4-12 days

0

24

Ariens 07533200

BOOT, EYELET TERMINAL

$3.49

$

In Stock, only 2 left!

0

25

Ariens 09044200

MODULE,INTERLOCK,DELAY, 1801

$71.99

$

Usually ships in 4-12 days

0

26

Ariens 30152200

GUARD, CLUTCH HARNESS ROUTING

$

$

Currently unavailable
