994302 - Ariens Arrow 32" Stand-On Mower, Kawasaki FS (SN: 000101 & Above) Drive Controls (Continued) Parts Diagram

Arrow 32" Stand-On Mower, Kawasaki FS

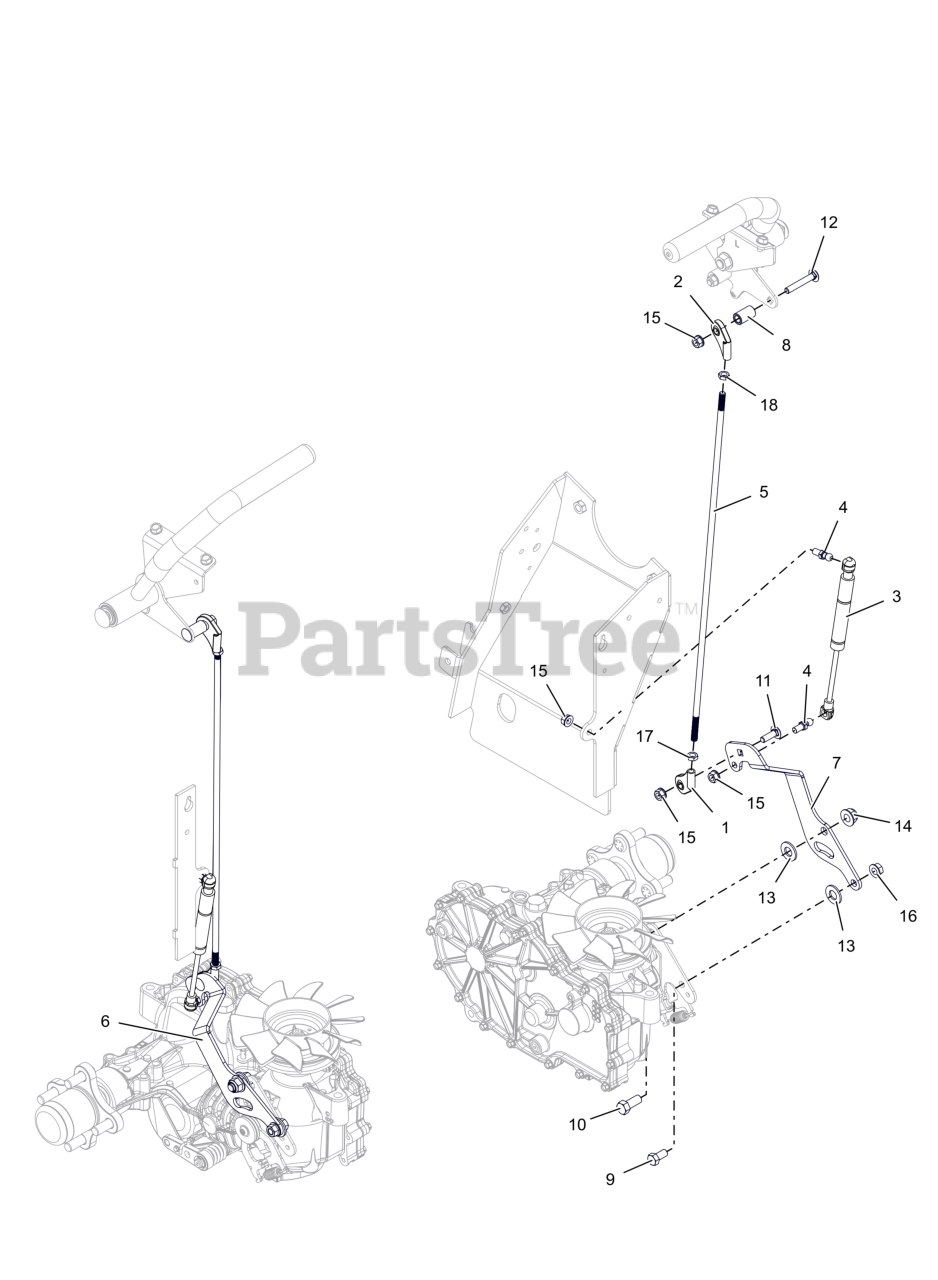

Drive Controls (Continued) Parts Diagram

  • Title

1

Ariens 09158500

END, ROD 5/16-24 RH

$

$

Currently unavailable

2

Ariens 09158600

END, ROD 5/16-24 LH

$

$

Currently unavailable

3

Ariens 03914100

DAMPER, CONTROL
(Superseded to 30151500)

$31.99

$

In Stock, only 2 left!

0

4

Ariens 03652200

STUD- BALL

$3.49

$

In Stock, Qty 20+

0

5

Ariens 05194700

ROD, STEERING

$

$

Currently unavailable

6

Ariens 05259451

ARM, RH 32-36" DRIVE CONTROL (BLACK)

$

$

Currently unavailable

7

Ariens 05259551

ARM, LH 32-36" DRIVE CONTROL (BLACK)

$

$

Currently unavailable

8

Ariens 05501325

SPCR,

$

$

Currently unavailable

9

Ariens 05901702

BLT,HEX .38-16X.75 G5 ZCC

$1.49

$

In Stock, Qty 12

0

10

Ariens 05901913

BLT, HEX .44-14X1.00 G5 ZCC

$2.99

$

In Stock, only 1 left!

0

11

Ariens 06200237

BLT,RHSSN .31-18X1.00 G5 ZCC

$2.49

$

Usually ships in 4-12 days

0

12

Ariens 06200431

BLT, RHSSN .31-18X2.00 G5 ZCC

$3.99

$

In Stock, only 1 left!

0

13

Ariens 06401015

WSHR,FLT .531X1.062X.095 ZCC

$0.99

$

In Stock, Qty 14

0

14

Ariens 06500811

NUT, LK-NYL-FLG .44-14 GR5 ZC120

$5.99

$

In Stock, only 1 left!

0

15

Ariens 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

16

Ariens 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

17

Ariens 06500923

NUT-JAM .312-24 ZCC

$0.99

$

In Stock, Qty 11

0

18

Ariens 06501002

NUT, JAM-LH .312-24 ZCC

$3.99

$

Usually ships in 4-12 days

0
