994302 - Ariens Arrow 32" Stand-On Mower, Kawasaki FS (SN: 000101 & Above) Deck Lift Parts Diagram

Arrow 32" Stand-On Mower, Kawasaki FS

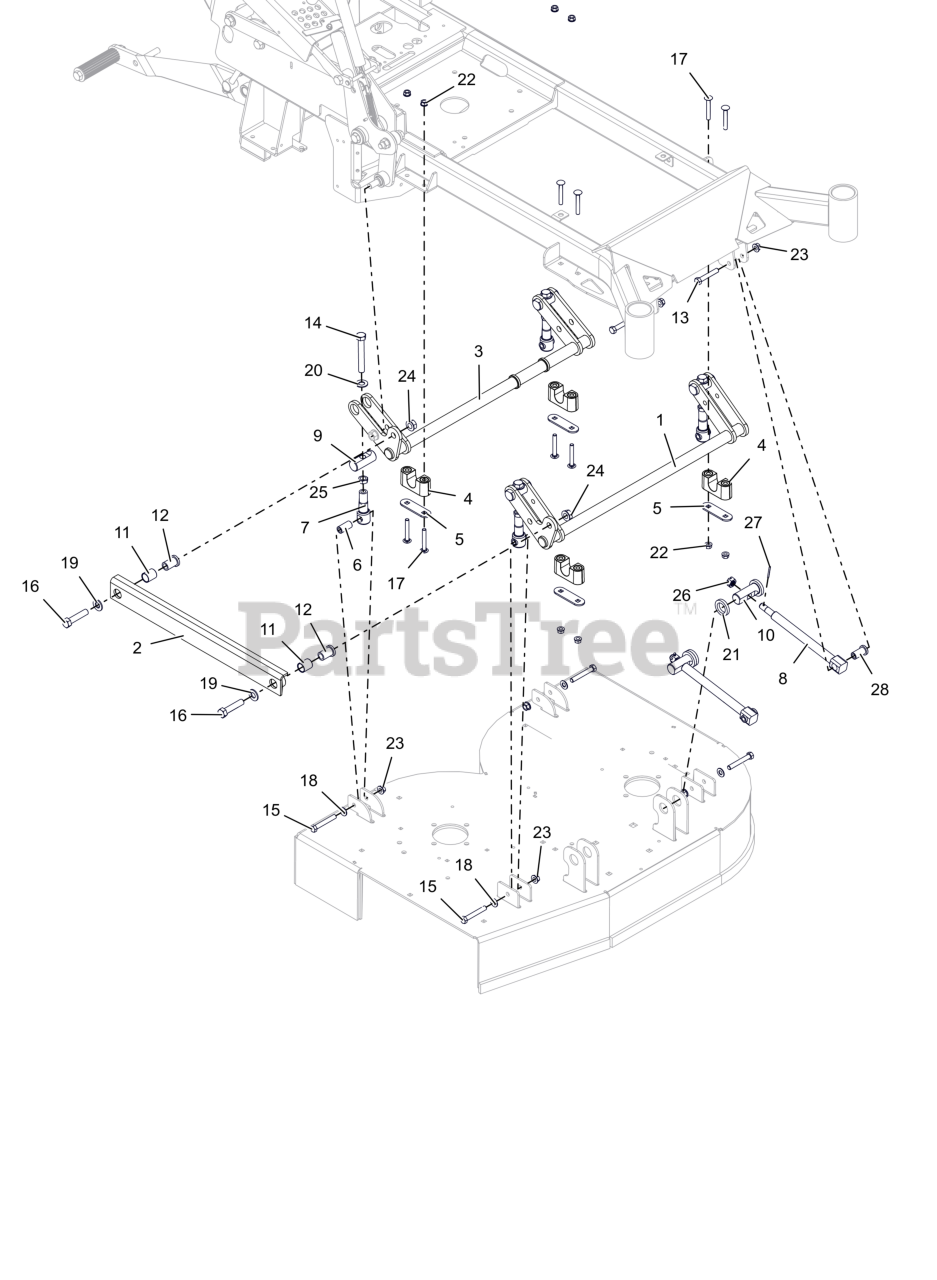

Deck Lift Parts Diagram

  • Title

1

Ariens 05245451

WLDMT, 36" PROSTANCE DECK LIFT (BLACK)

$

$

Currently unavailable

2

Ariens 05246851

WLDMT, DECK LIFT LINK (BLACK)

$

$

Currently unavailable

3

Ariens 05255651

WLDMT, 36" PROSTANCE DECK LIFT (BLACK)

$

$

Currently unavailable

4

Ariens 07500414

ASM-BUSHING, DECK LIFT

$22.99

$

In Stock, only 2 left!

0

5

Ariens 04766551

PLATE, BEARING SUPPORT

$7.99

$

In Stock, only 2 left!

0

6

Ariens 04895200

SPACER, DECK LEVELING

$2.49

$

In Stock, Qty 18

0

7

Ariens 05081400

LINK, DECK LIFT FORMED

$15.99

$

In Stock, Qty 9

0

8

Ariens 05126700

DRAG,LINK-HD

$20.99

$

In Stock, only 2 left!

0

9

Ariens 05149500

PIN, DECK LIFT

$15.99

$

In Stock, Qty 20+

0

10

Ariens 05264200

PIN, DECK LIFT

$

$

Currently unavailable

11

Ariens 05400729

BRG- .750 X .875 X 1.000

$10.99

$

Usually ships in 4-12 days

0

12

Ariens 05527200

BSHG-FLG .515X.746X1.290X1.000

$30.99

$

Usually ships in 4-12 days

0

13

Ariens 05901640

BLT,HEX .38-16X2.25 G5 ZCC

$3.99

$

In Stock, Qty 20+

0

14

Ariens 05901735

BLT, HEX .50-13X3.50F G5 ZCC

$5.99

$

In Stock, only 1 left!

0

15

Ariens 05901811

BLT, HEX .38-16X2.50 G8 ZCC

$3.99

$

In Stock, only 4 left!

0

16

Ariens 05901835

BLT, HEX .50-13X2.25 G5 ZCC

$3.49

$

In Stock, Qty 5

0

17

Ariens 06200311

BLT, RHSSN.31-18X2.25 G5 ZCC

$3.99

$

In Stock, only 2 left!

0

18

Ariens 06401013

WSHR,FLT .406X.812X.065 ZCC

$0.99

$

In Stock, Qty 20+

0

19

Ariens 06401015

WSHR,FLT .531X1.062X.095 ZCC

$0.99

$

In Stock, Qty 14

0

20

Ariens 06401116

WSHR, FLT .557X1.040X.102 ZCC

$1.49

$

In Stock, Qty 20+

0

21

Ariens 06425600

WSHR-FL-STL 1.0X1.50X.25

$5.99

$

In Stock, only 1 left!

0

22

Ariens 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

23

Ariens 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

24

Ariens 06500902

NUT-LK-CTR-FLG .500-13 GG ZCC

$1.49

$

In Stock, Qty 20+

0

25

Ariens 06500911

NUT-JAM .500-13 G2 ZCC

$1.49

$

In Stock, Qty 20+

0

26

Ariens 06505000

NUT-SL .50-13

$3.49

$

In Stock, Qty 17

0

27

Ariens 06700212

PIN,CTR.12X1.25EXTPRSQCT ZC120

$0.99

$

In Stock, Qty 20+

0

28

Ariens 09158400

SPCR, DRAG LINK

$

$

Currently unavailable
