994302 - Ariens Arrow 32" Stand-On Mower, Kawasaki FS (SN: 000101 & Above) Deck Guards and Baffle - 32" Parts Diagram

Arrow 32" Stand-On Mower, Kawasaki FS

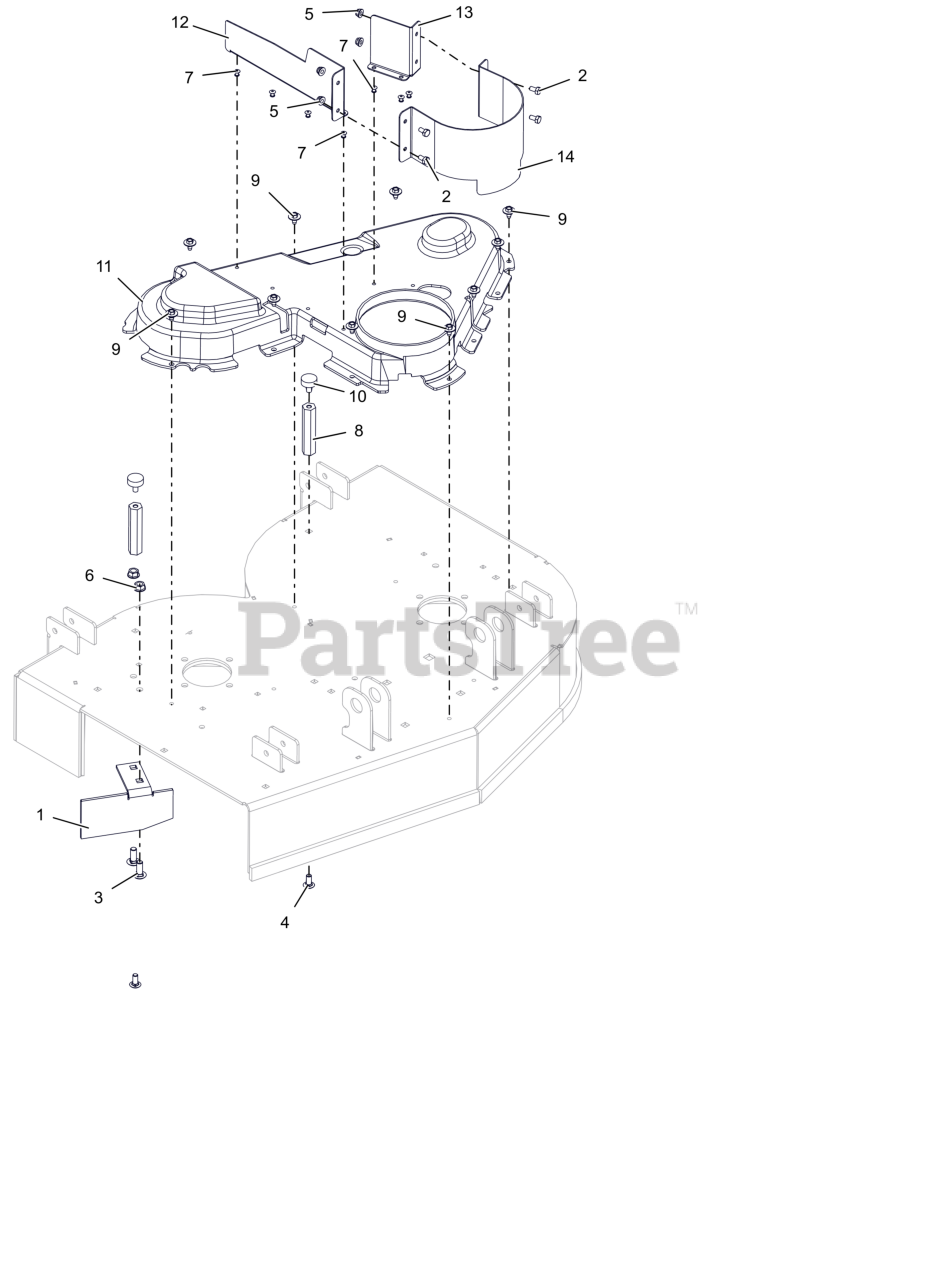

Deck Guards and Baffle - 32" Parts Diagram

  • Title

1

Ariens 05269859

BAFFLE, 32" SIDE DISCHARGE (ORANGE)

$

$

Currently unavailable

2

Ariens 05901705

BLT,HEX .25-20X.50 G5 ZCC

$0.99

$

In Stock, Qty 7

0

3

Ariens 06200235

BLT,RHSSN .38-16X1.00 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

4

Ariens 06200309

BLT, RHSSN.31-18X.750 G5 ZCC

$2.49

$

In Stock, Qty 20+

0

5

Ariens 06500813

NUT,NYL-FLG .25-20 GF ZCC

$1.49

$

In Stock, Qty 14

0

6

Ariens 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

7

Ariens 06800120

RIVET, .1875 AL/AL .126-.250

$1.49

$

Usually ships in 4-12 days

0

8

Ariens 07001831

NUT, .31-18 x 3.500 LG COUPLING

$

$

Currently unavailable

9

Ariens 07400138

SCR, TAP .25-20X.50 LG HWH ZCC

$1.49

$

In Stock, only 2 left!

0

10

Ariens 07533600

BUMPER, RUBBER

$11.99

$

In Stock, only 2 left!

0

11

Ariens 09691859

GUARD, DECK CENTER (ORANGE)

$

$

Currently unavailable

12

Ariens 09691959

GUARD, IDLER RIGHT (ORANGE)

$

$

Currently unavailable

13

Ariens 09692059

GUARD, IDLER LEFT (ORANGE)

$

$

Currently unavailable

14

Ariens 09692159

GUARD, IDLER FRONT (ORANGE)

$

$

Currently unavailable
