994301 (1934 FX) - Ariens Pro-Stance 34" Stand-On Mower, 19hp Kawasaki (SN: 000101 & Above) Wheel Strut Parts Diagram

Pro-Stance 34" Stand-On Mower, 19hp Kawasaki

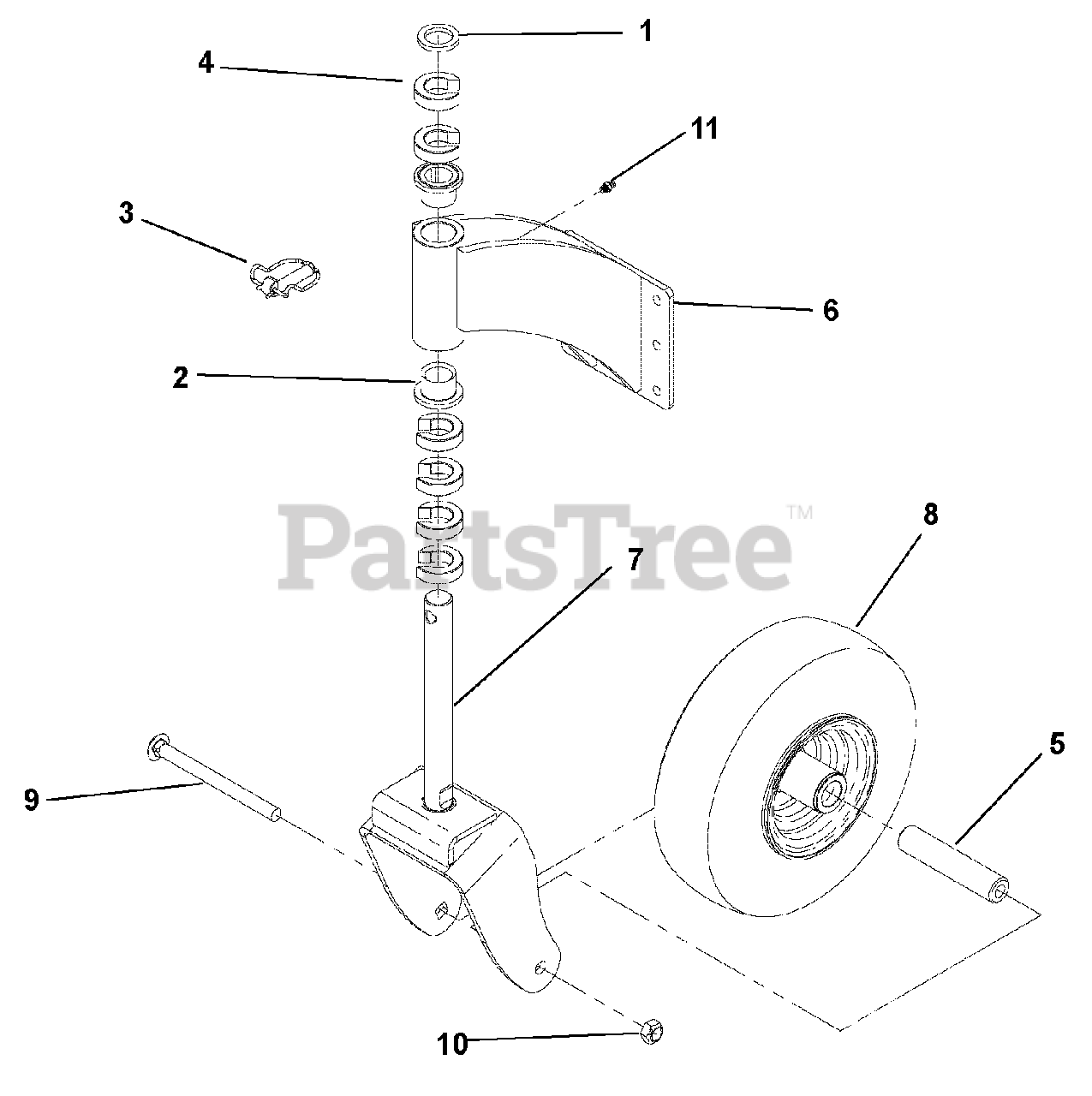

Wheel Strut Parts Diagram

  • Title

1

Ariens 00958000

BUSHING, 1.03X1.501.179
(Superseded to D13008)

$9.99

$

In Stock, only 2 left!

0

2

Ariens 00958100

BRG, FLG 1.00X1.25X1.00
(Superseded to D18076)

$6.99

$

In Stock, only 3 left!

0

3

Ariens 00958200

PIN, LOCK .438 X 2.00
(Superseded to 00161397)

$9.49

$

In Stock, only 2 left!

0

4

Ariens 00958300

C-SPACER, 1.00X1.77X.50
(Superseded to 00164145)

$3.99

$

In Stock, Qty 6

0

5

Ariens 00958400

TUBE, 1.00X.50X4.76
(Superseded to 00191049)

$51.99

$

In Stock, only 2 left!

0

6

Ariens 00958500

WLDMT, CASTER MOUNT BRKT
(Superseded to 00200175)

$

$

Not available

7

Ariens 00958600

WLDMT, FRONT WHEEL FORK
(Superseded to 00200176)

$219.99

$

Usually ships in 4-12 days

0

8

Ariens 00958700

WHEEL, FRONT 11X4X5

$

$

Not available

9

Ariens 05961800

BLT-HEX .50-13X6.00 GR5 YWZC

$

$

Not available

10

Ariens 06536300

@NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$3.99

$

In Stock, only 2 left!

0

11

Ariens 07037900

GREASE ZERK, 1/4-28 STR .69 LG
(Superseded to 00959995)

$3.49

$

Usually ships in 4-12 days

0
