994301 (1934 FX) - Ariens Pro-Stance 34" Stand-On Mower, 19hp Kawasaki (SN: 000101 & Above) Pump Components Parts Diagram

Pro-Stance 34" Stand-On Mower, 19hp Kawasaki

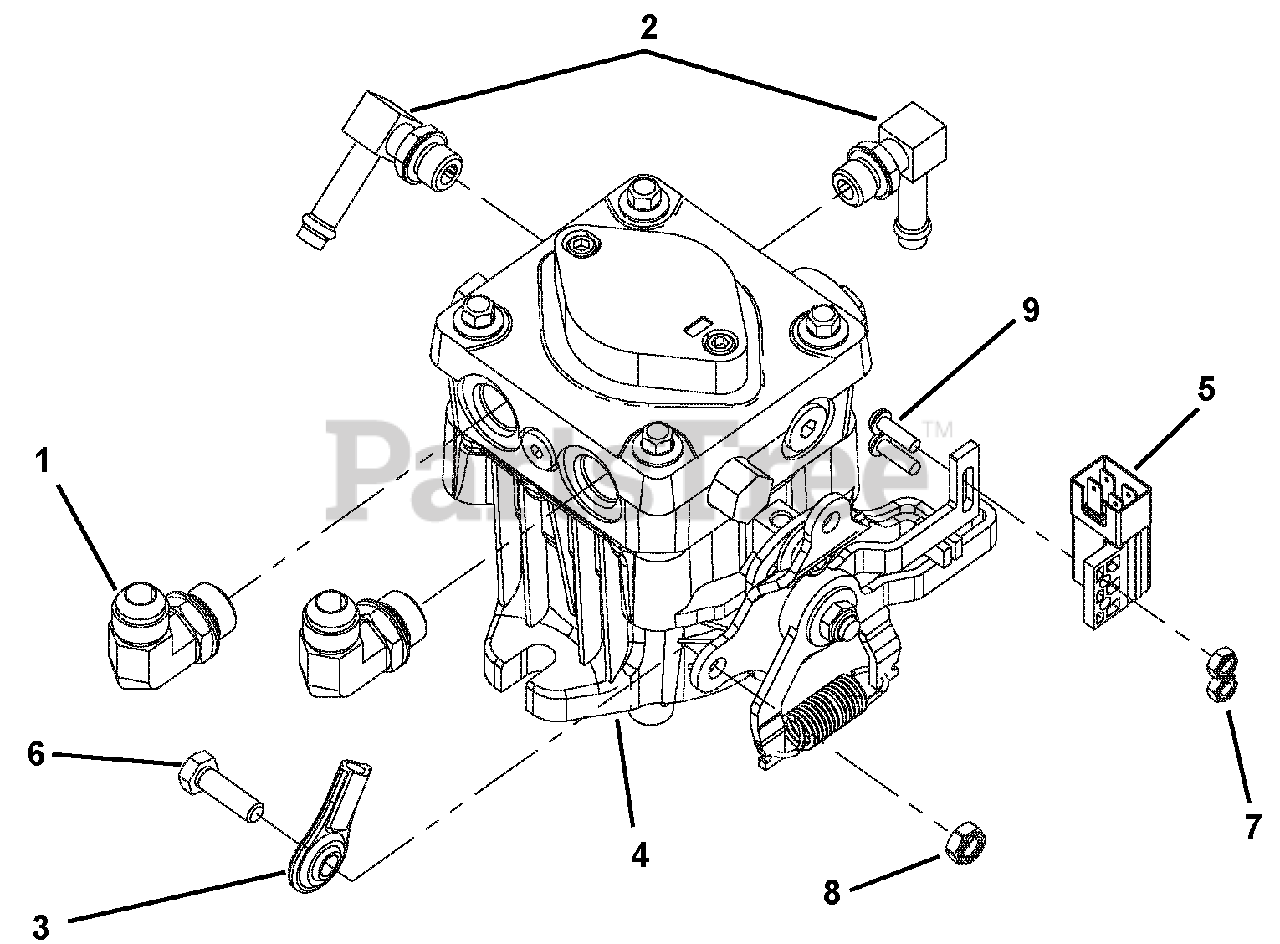

Pump Components Parts Diagram

  • Title
1

Ariens 00954100

FITTING, INCLUDES O-RING
(Superseded to D14196)

$5.99

$

Usually ships in 4-12 days

0

2

Ariens 07019700

FTG-ADPTR .562-18 ST THD

$6.99

$

Usually ships in 4-12 days

0

3

Ariens 08960700

ROD END, 5/16 RH - FEMALE
(Superseded to 03787100)

$12.99

$

In Stock, only 2 left!

0

4

Ariens 00881500

PUMP, LH
(Superseded to TCA14966)

$841.99

$

Usually ships in 4-12 days

0

Ariens 00881400

PUMP, RH
(Superseded to TCA14965)

$841.99

$

Usually ships in 4-12 days

0

5

Ariens 00953100

SWITCH, PLUNGER DP -N.O.-N.C.
(Superseded to 08828100)

$20.99

$

In Stock, only 1 left!

0

6

Ariens 05946900

@BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

7

Ariens 06536000

@NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

8

Ariens 06530200

@NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

9

Ariens 06111100

SCR-MCH 10-24X.62 P/HD

$0.99

$

In Stock, Qty 12

0

NS

Ariens D19003

KIT, PUMP SEAL BDP10 & 12 S/O

$

$

Not available
