994165 - Gravely Pro-Stance 60" Stand-On Mower, Kawasaki FT EFI (SN: 002000 & Above) Deck, Belts, Blades and Spindles - 60" Parts Diagram

Pro-Stance 60" Stand-On Mower, Kawasaki FT EFI

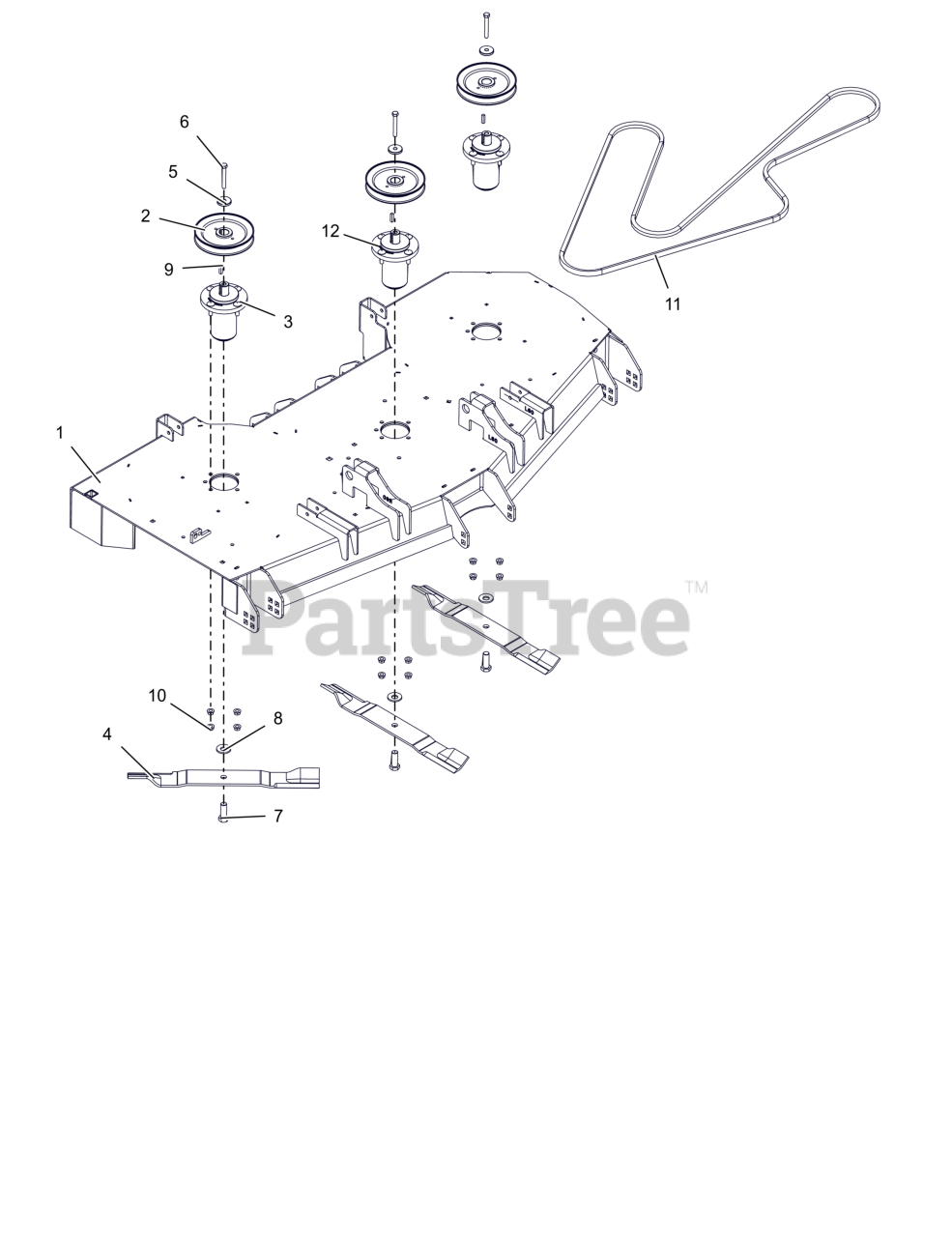

Deck, Belts, Blades and Spindles - 60" Parts Diagram

  • Title
1

Gravely 59408100

KIT- SERVICE 60" DECK W/DECALS

$1422.99

$

Usually ships in 4-12 days

0

2

Gravely 07349051

PULLY, 1.00 ID X 6.34

$136.99

$

Usually ships in 4-12 days

0

3

Gravely 09166700

ASM, ALUM SPINDLE

$129.99

$

Usually ships in 0 days

0

4

Gravely 09081200

BLADE, MOWER (20.50")

$29.99

$

In Stock, Qty 20+

0

5

Gravely 04530500

RETAINER, SHEAVE

$7.99

$

In Stock, Qty 20+

0

6

Gravely 05901813

BLT, HEX .38-16X2.75 G8 ZCC

$1.49

$

In Stock, Qty 20+

0

7

Gravely 05901822

BLT, HEX .62-18X1.75 G8 ZCC

$3.49

$

In Stock, Qty 20+

0

8

Gravely 06445700

WSHR-BLVL .669X1.535X.138

$4.99

$

In Stock, only 3 left!

0

9

Gravely 06611200

KEY, SQ .25X.25X1.00 RC 40-50

$2.99

$

In Stock, Qty 15

0

10

Gravely 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

11

Gravely 07200808

V-BELT, B RAW EDGE EPDM

$125.99

$

In Stock, only 2 left!

0

12

Gravely 58810800

ASM, MAINT FREE ALUM SPINDLE

$239.99

$

In Stock, Qty 20+

0
