994161 - Gravely Pro-Stance 48" Stand-On Mower, Kawasaki FX (SN: 002000 & Above) Drive Controls (Continued) Parts Diagram

Pro-Stance 48" Stand-On Mower, Kawasaki FX

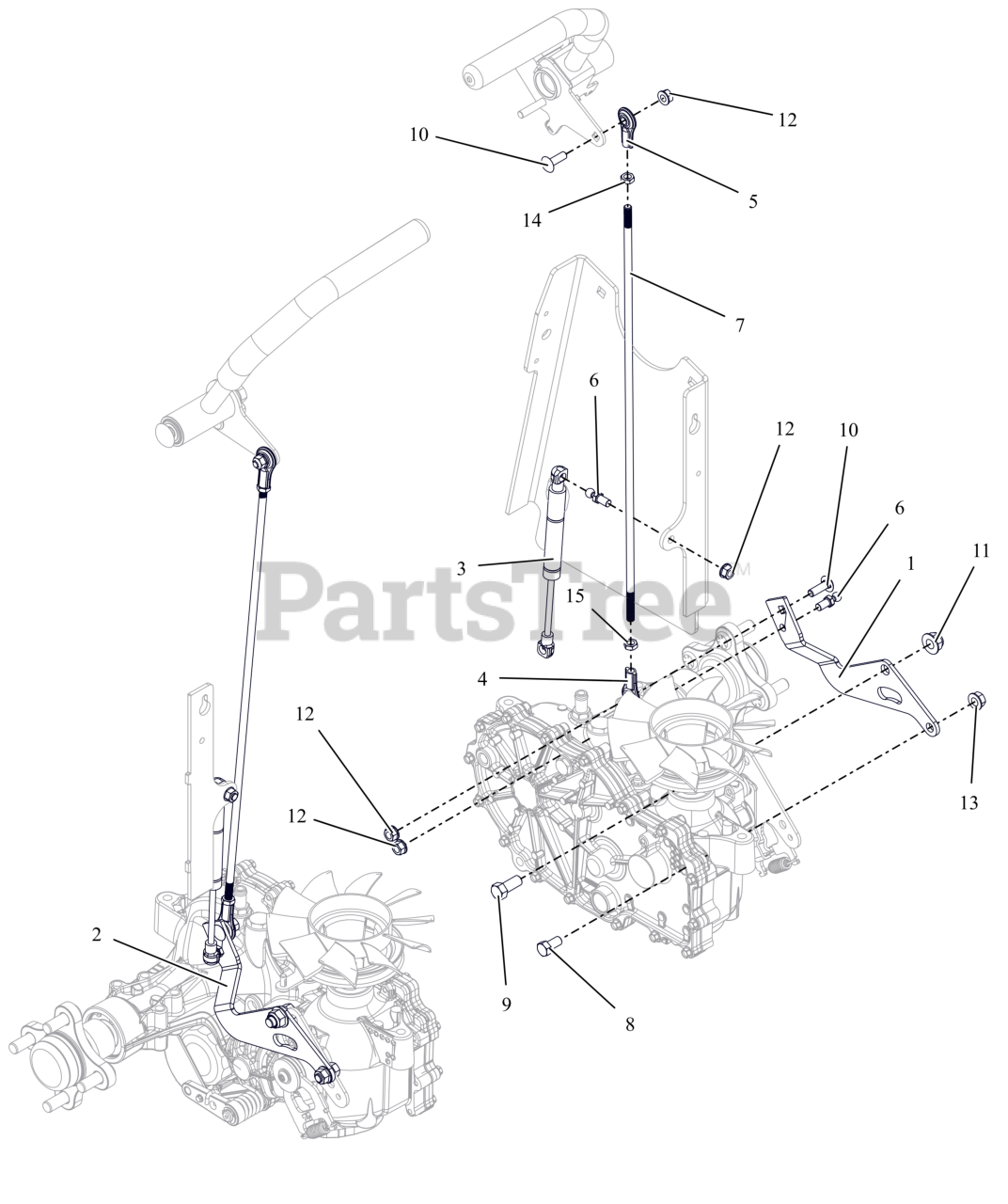

Drive Controls (Continued) Parts Diagram

  • Title

1

Gravely 05193151

ARM, LH DRIVE CONTROL

$

$

Not available

2

Gravely 05193251

ARM, RH DRIVE CONTROL

$

$

Not available

3

Gravely 30151500

DAMPER, CONTROL

$31.99

$

In Stock, only 2 left!

0

4

Gravely 03787100

ALIGNABALL, 5/16 RH THREAD

$12.99

$

In Stock, only 2 left!

0

5

Gravely 03787200

ALIGNABALL, 5/16 LH THREAD
(Superseded to 05298700)

$

$

Not available

6

Gravely 03652200

STUD- BALL

$3.49

$

In Stock, only 3 left!

0

7

Gravely 05194700

ROD, STEERING

$31.99

$

Usually ships in 4-12 days

0

8

Gravely 05901702

BLT,HEX .38-16X.75 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

9

Gravely 05901913

BLT, HEX 0.4375-14X1 GR5 ZCC

$2.99

$

In Stock, only 1 left!

0

10

Gravely 06200237

BLT,RHSSN .31-18X1.00 G5 ZCC

$2.49

$

In Stock, only 3 left!

0

11

Gravely 06500811

NUT,NYL-FLG .44-14 GF ZCC

$5.99

$

In Stock, only 1 left!

0

12

Gravely 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

13

Gravely 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

14

Gravely 06501002

NUT, JAM-LH .312-24 ZCC

$

$

Not available

15

Gravely 06500923

NUT-JAM .312-24 ZCC

$0.99

$

In Stock, Qty 13

0
