994160 - Gravely Z-Stance 32" Stand-On Mower, Kawasaki FS (SN: 000101 & Above) Drive Controls - 32" Parts Diagram

Z-Stance 32" Stand-On Mower, Kawasaki FS

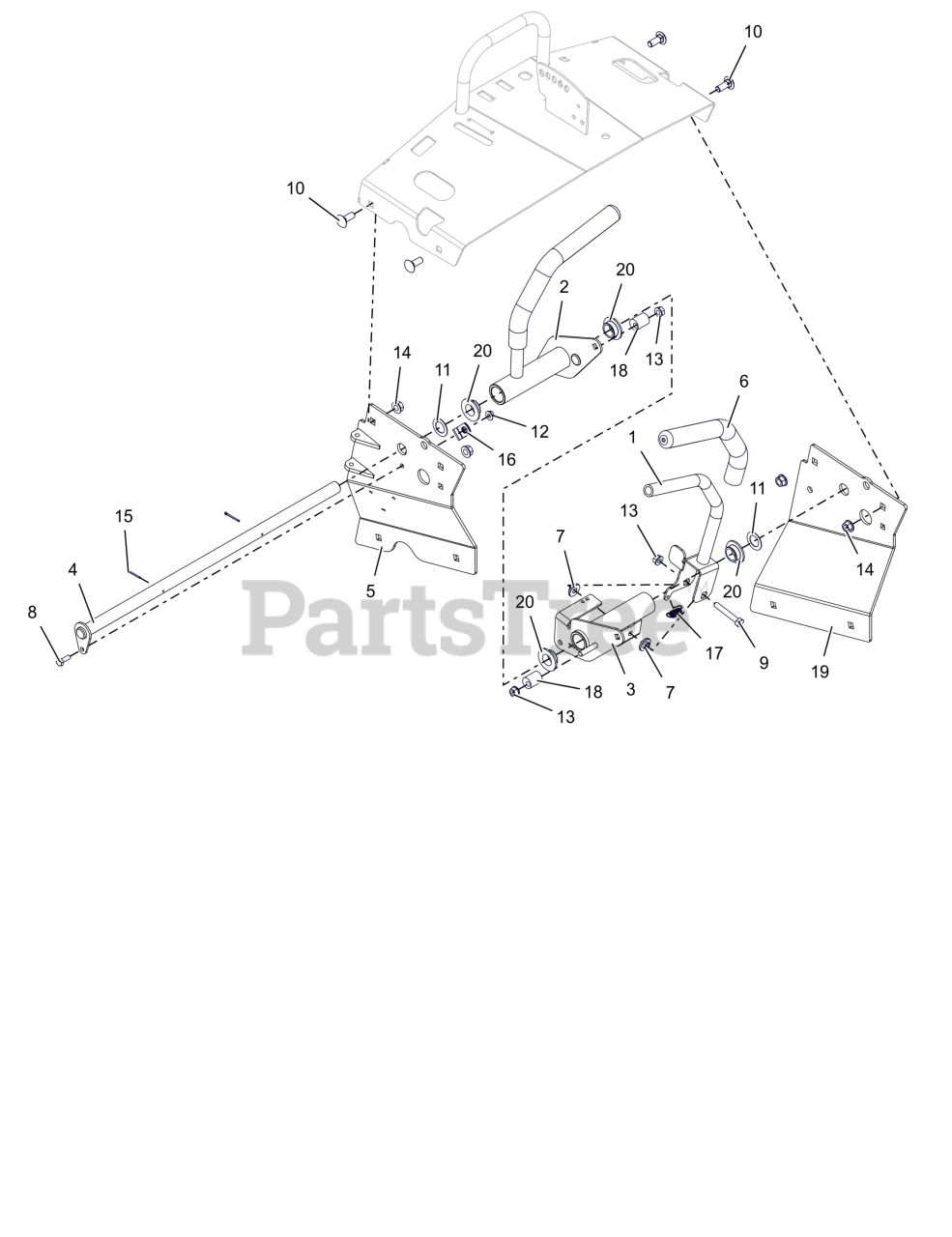

Drive Controls - 32" Parts Diagram

  • Title

1

Gravely 09487951

WLDMT-LH STEERING CONTROL(BLK)

$

$

Not available

2

Gravely 09488051

WLDMT-RH STEERING CONTROL(BLK)

$

$

Not available

3

Gravely 09488151

WMT-LH STEER CNTRL PIVOT (BLK)

$

$

Not available

4

Gravely 09489000

WMT- CONTROL PIVOT SHAFT

$

$

Not available

5

Gravely 09489253

WLDMT-32"TOWER RH SUPPORT(RED)

$

$

Not available

6

Gravely 00675200

GRIP, HANDLEBAR

$9.49

$

In Stock, only 1 left!

0

7

Gravely 01305900

BSHG, FLG .325X.499X.26X.88

$2.49

$

In Stock, only 1 left!

0

8

Gravely 05901716

BLT, HEX .25-20X.75 G5 ZCC

$0.99

$

In Stock, Qty 20+

0

9

Gravely 05901805

BLT, HEX .31-18X2.00 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

10

Gravely 06200313

BLT, RHSN .38-16X1.00 G5 ZCC

$2.49

$

In Stock, Qty 10

0

11

Gravely 06401136

WSHR-FL-STL 0.76X1.225X0.032 ZCC

$3.99

$

Usually ships in 4-12 days

0

12

Gravely 06500821

NUT-LK-CTR-FLG .25-20 ZC120

$0.99

$

In Stock, Qty 20+

0

13

Gravely 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

14

Gravely 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

15

Gravely 06700200

PIN-COTR .09X1.0 PL

$0.99

$

Usually ships in 4-12 days

0

16

Gravely 06900036

CLAMP, CUSHIONED STEEL .75

$5.99

$

Usually ships in 4-12 days

0

17

Gravely 08300036

SPRING, EXT. .043X.438X1.64

$2.49

$

In Stock, only 4 left!

0

18

Gravely 09235700

ECCENTRIC

$4.99

$

Usually ships in 4-12 days

0

19

Gravely 09679753

SUPPORT- 32" TOWER LH (RED)

$

$

Not available

20

Gravely 05501517

BSHG, FLANGED .762 X 1.48 X .44 IGLIDER

$

$

Not available
