994159 - Gravely Z-Stance 48" Stand-On Mower, Kawasaki FS (SN: 000101 & Above) Parking Brake - 48" and 52" Parts Diagram

Z-Stance 48" Stand-On Mower, Kawasaki FS

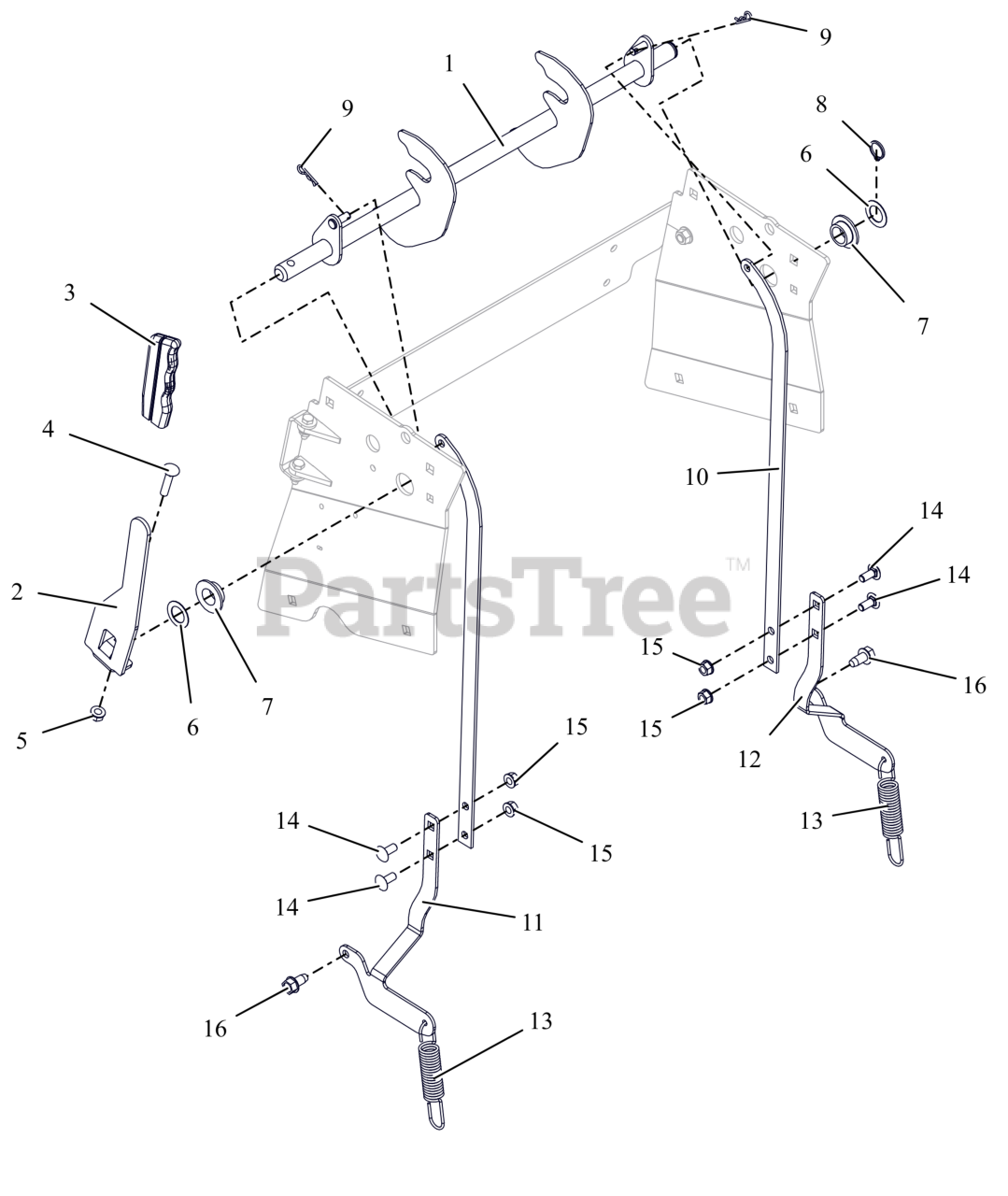

Parking Brake - 48" and 52" Parts Diagram

  • Title

1

Gravely 09485651

WLDMT-48-52"PARK BRK SHFT(BLK)

$

$

Not available

2

Gravely 05259951

HANDLE, PARK BRAKE (BLACK)

$

$

Not available

3

Gravely 05097200

GRIP, PARKING

$5.99

$

Usually ships in 4-12 days

0

4

Gravely 06200233

BLT,RHSN .31-18X1.50 G5 ZCC

$1.49

$

In Stock, Qty 19

0

5

Gravely 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

6

Gravely 06401136

WSHR-FL-STL 0.76X1.225X0.032 ZCC

$3.99

$

Usually ships in 4-12 days

0

7

Gravely 05525200

BSHG-FLG .762X1.48X.44 NYL
(Superseded to 05501517)

$

$

Not available

8

Gravely 05714600

RG-RTNG-EXT .689X.078

$2.49

$

In Stock, Qty 5

0

9

Gravely 06700222

PIN, HAIR #213 .08X1.19 ZCC

$0.99

$

In Stock, Qty 20+

0

10

Gravely 09485551

LINKAGE- PARK BRAKE

$

$

Not available

11

Gravely 09485351

LINKAGE-PARK BRK LOWER RH(BLK)

$15.99

$

Usually ships in 4-12 days

0

12

Gravely 09485451

LINKAGE-PARK BRK LOWER LH(BLK)

$15.99

$

Usually ships in 4-12 days

0

13

Gravely 08333200

SG-TENS .105X.85X5.00 WLD 40

$14.99

$

In Stock, only 2 left!

0

14

Gravely 06200309

BLT, RHSSN.31-18X.750 G5 ZCC

$2.49

$

In Stock, Qty 20+

0

15

Gravely 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

16

Gravely 07400129

SCR,TAP .375-16X.75 HWH TR ZCC

$1.49

$

In Stock, Qty 20+

0
