994159 - Gravely Z-Stance 48" Stand-On Mower, Kawasaki FS (SN: 000101 & Above) Operator Platform - 48" and 52" Parts Diagram

Z-Stance 48" Stand-On Mower, Kawasaki FS

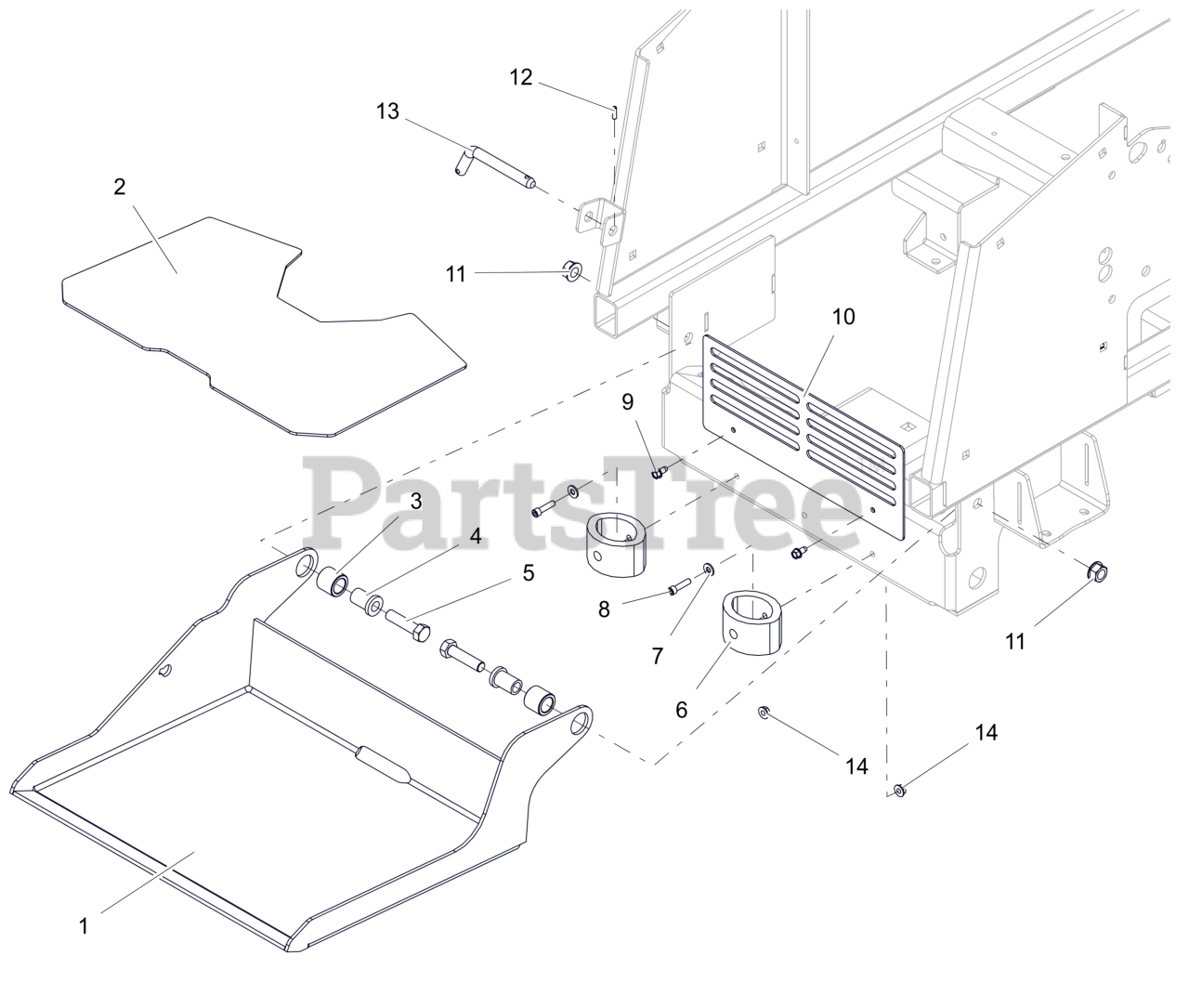

Operator Platform - 48" and 52" Parts Diagram

  • Title

1

Gravely 09488701

PLATFORM, OPERATOR

$

$

Currently unavailable

2

Gravely 05258700

TAPE, OPERATOR PLATFORM GRIP

$113.99

$

Usually ships in 4-12 days

0

3

Gravely 09496303

SPCR, PIVOT

$

$

Currently unavailable

4

Gravely 05527200

BSHG-FLG .515X.746X1.290X1.000

$30.99

$

Usually ships in 4-12 days

0

5

Gravely 05901929

BLT, HEX .50-13X2.00 G5 ZCC

$3.49

$

In Stock, only 1 left!

0

6

Gravely 05255200

BUMPER, PLATFORM

$33.99

$

Usually ships in 4-12 days

0

7

Gravely 06401001

WSHR,FLT .281X.625X.065 ZCC

$0.99

$

In Stock, Qty 20+

0

8

Gravely 05902033

SCR, SKH .25-20X1.00

$1.49

$

Usually ships in 4-12 days

0

9

Gravely 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

10

Gravely 05254253

GUARD, FOOT (RED)

$45.99

$

Usually ships in 4-12 days

0

11

Gravely 06500902

NUT-LK-CTR-FLG .500-13 GG ZCC

$1.49

$

In Stock, Qty 20+

0

12

Gravely 05806200

PIN-ROLL .188X.63

$5.99

$

Usually ships in 4-12 days

0

13

Gravely 07500517

PIN- HOC SELECTOR

$62.99

$

Usually ships in 4-12 days

0

14

Gravely 06500821

NUT-LK-CTR-FLG .25-20 ZC120

$0.99

$

In Stock, Qty 20+

0
