994159 - Gravely Z-Stance 48" Stand-On Mower, Kawasaki FS (SN: 000101 & Above) Idlers and Sheaves - 48" and 52" Parts Diagram

Z-Stance 48" Stand-On Mower, Kawasaki FS

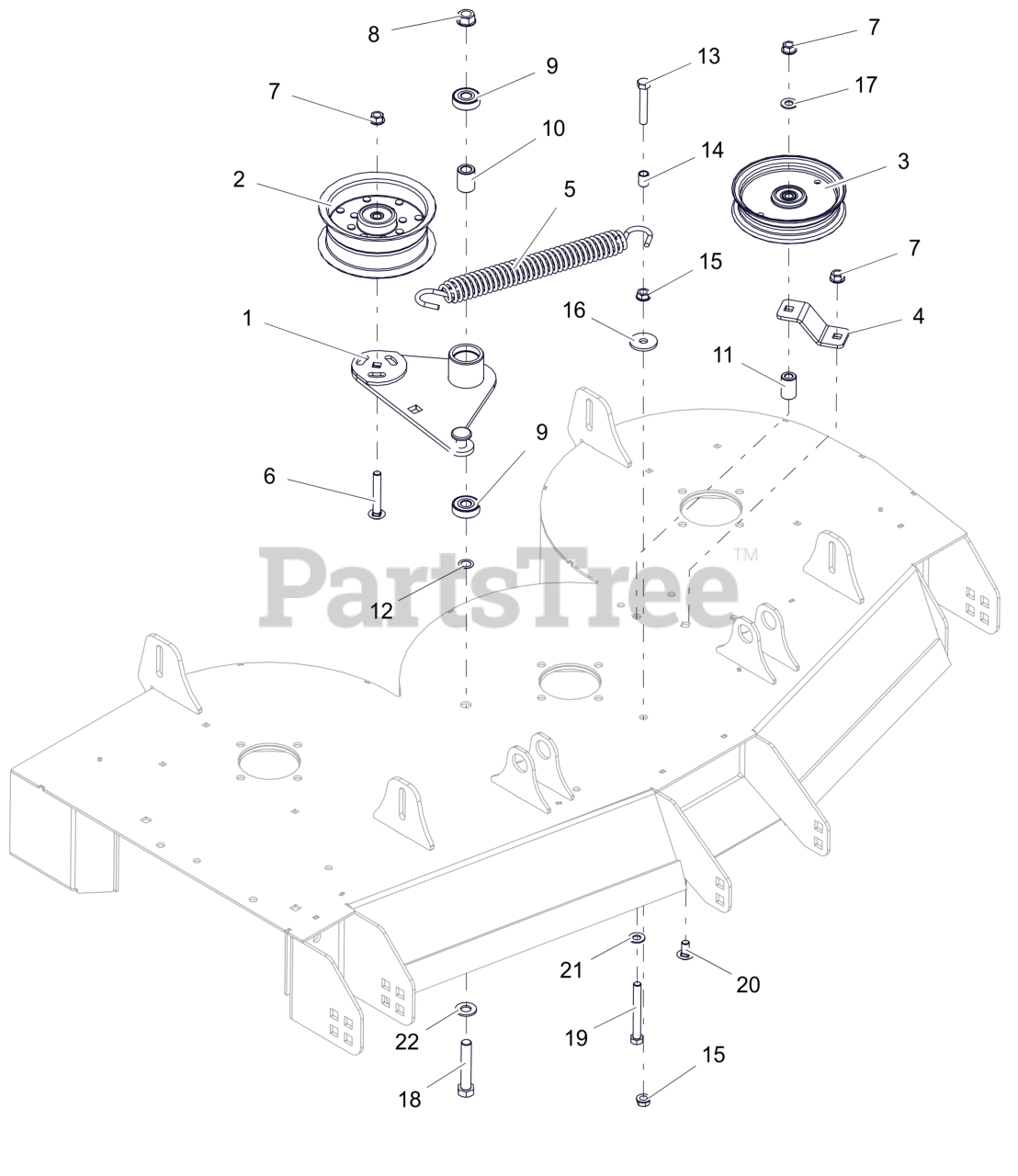

Idlers and Sheaves - 48" and 52" Parts Diagram

  • Title

1

Gravely 09668800

WLDMT- IDLER ARM

$51.99

$

Usually ships in 4-12 days

0

2

Gravely 07300532

PULLEY, FLAT 5.00X2.36X.375

$68.99

$

In Stock, Qty 14

0

3

Gravely 07351200

IDLER- FLAT - 5.00" X .75"

$40.99

$

Usually ships in 4-12 days

0

4

Gravely 04981853

PTO FIXED IDLER MTG BRKT -RED

$9.49

$

In Stock, only 1 left!

0

5

Gravely 08300708

SPRING, EXTENSION

$19.99

$

In Stock, Qty 20+

0

6

Gravely 06200315

BLT, RHSSN.38-16X2.50 G5 ZCC

$3.49

$

In Stock, only 2 left!

0

7

Gravely 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

8

Gravely 06500902

NUT-LK-CTR-FLG .500-13 GG ZCC

$1.49

$

In Stock, Qty 20+

0

9

Gravely 05408000

BRG-BALL .500X1.38X.437

$5.99

$

In Stock, only 4 left!

0

10

Gravely 09357700

SPACER .510 X .867 X 1.1485

$4.99

$

In Stock, Qty 8

0

11

Gravely 05501308

BUSHING, SLV .380X.750X1.190

$4.99

$

In Stock, Qty 20+

0

12

Gravely 06400015

WASHER, .500X.750X.020 THRUST

$1.49

$

In Stock, Qty 20+

0

13

Gravely 05901640

BLT,HEX .38-16X2.25 G5 ZCC

$3.99

$

In Stock, Qty 20+

0

14

Gravely 05501226

SPCR, SLV .385X.500X.652

$3.49

$

In Stock, only 2 left!

0

15

Gravely 06500735

NUT, SPNLK-FLG .38-16 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

16

Gravely 06401121

WSHR,FLT .406X1.375X.135 ZCC

$5.99

$

In Stock, only 1 left!

0

17

Gravely 06401013

WSHR,FLT .406X.812X.065 ZCC

$0.99

$

In Stock, Qty 20+

0

18

Gravely 05901720

BLT,HEX .50-13X2.75 G5 ZCC

$4.99

$

Usually ships in 4-12 days

0

19

Gravely 05901817

BLT, HEX .38-16X3.25 G5 ZCC

$3.99

$

In Stock, Qty 20+

0

20

Gravely 06200336

BLT, RHSSN .38-16X.75 G5 ZCC

$2.49

$

In Stock, Qty 20+

0

21

Gravely 06401013

WSHR,FLT .406X.812X.065 ZCC

$0.99

$

In Stock, Qty 20+

0

22

Gravely 06401015

WSHR,FLT .531X1.062X.095 ZCC

$0.99

$

In Stock, Qty 20+

0
