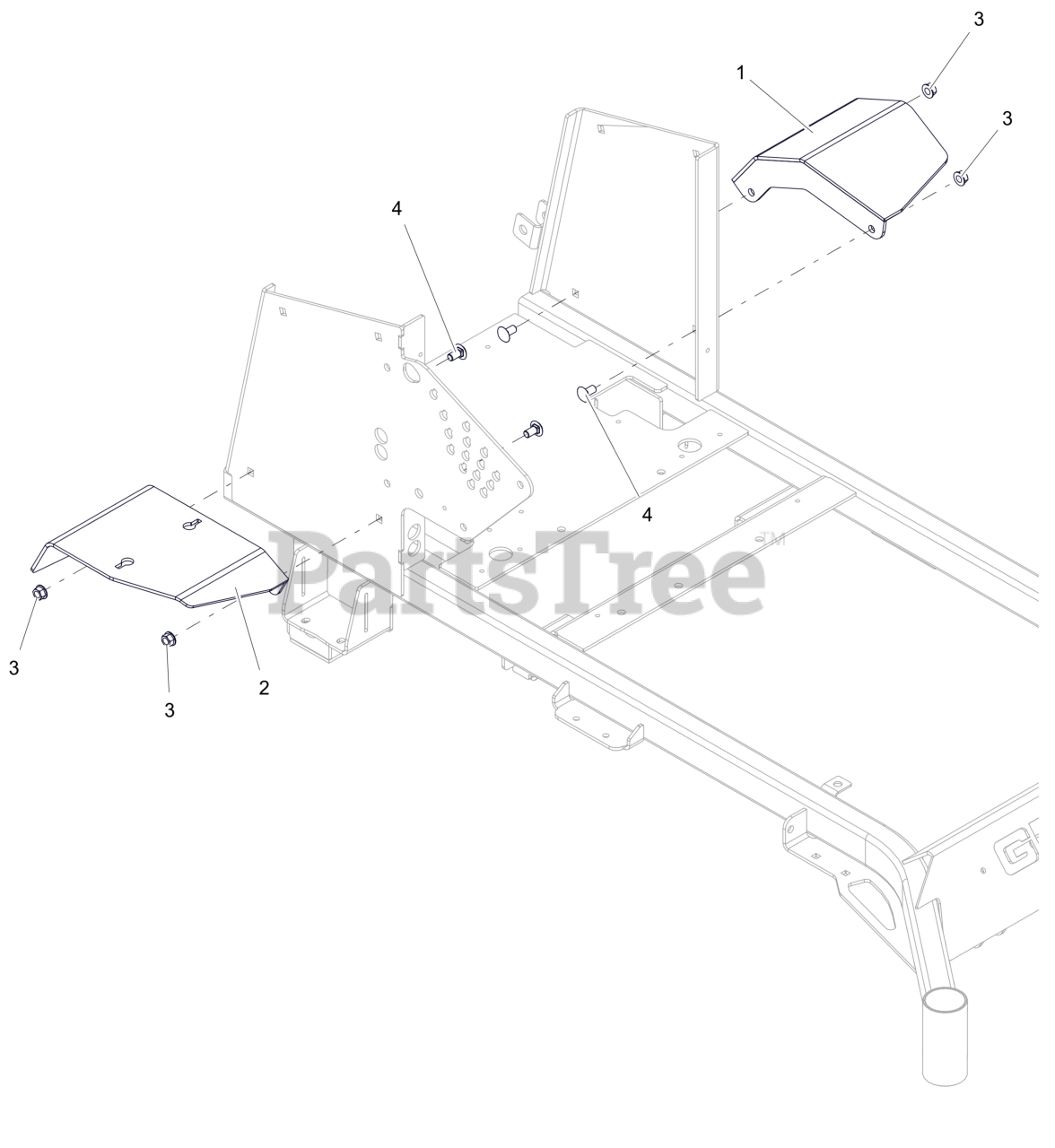

994159 - Gravely Z-Stance 48" Stand-On Mower, Kawasaki FS (SN: 000101 & Above) Fenders Parts Diagram

Z-Stance 48" Stand-On Mower, Kawasaki FS

Fenders Parts Diagram

  • Title

1

Gravely 09495953

WLDMT- LH FENDER (RED)

$

$

Not available

2

Gravely 09487853

WLDMT-RH FNDR/BATTERY MTG(RED)

$

$

Not available

3

Gravely 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

4

Gravely 06200336

BLT, RHSSN .38-16X.75 G5 ZCC

$2.49

$

In Stock, Qty 20+

0
