994159 - Gravely Z-Stance 48" Stand-On Mower, Kawasaki FS (SN: 000101 & Above) Engine and frame - 48" and 52" Parts Diagram

Z-Stance 48" Stand-On Mower, Kawasaki FS

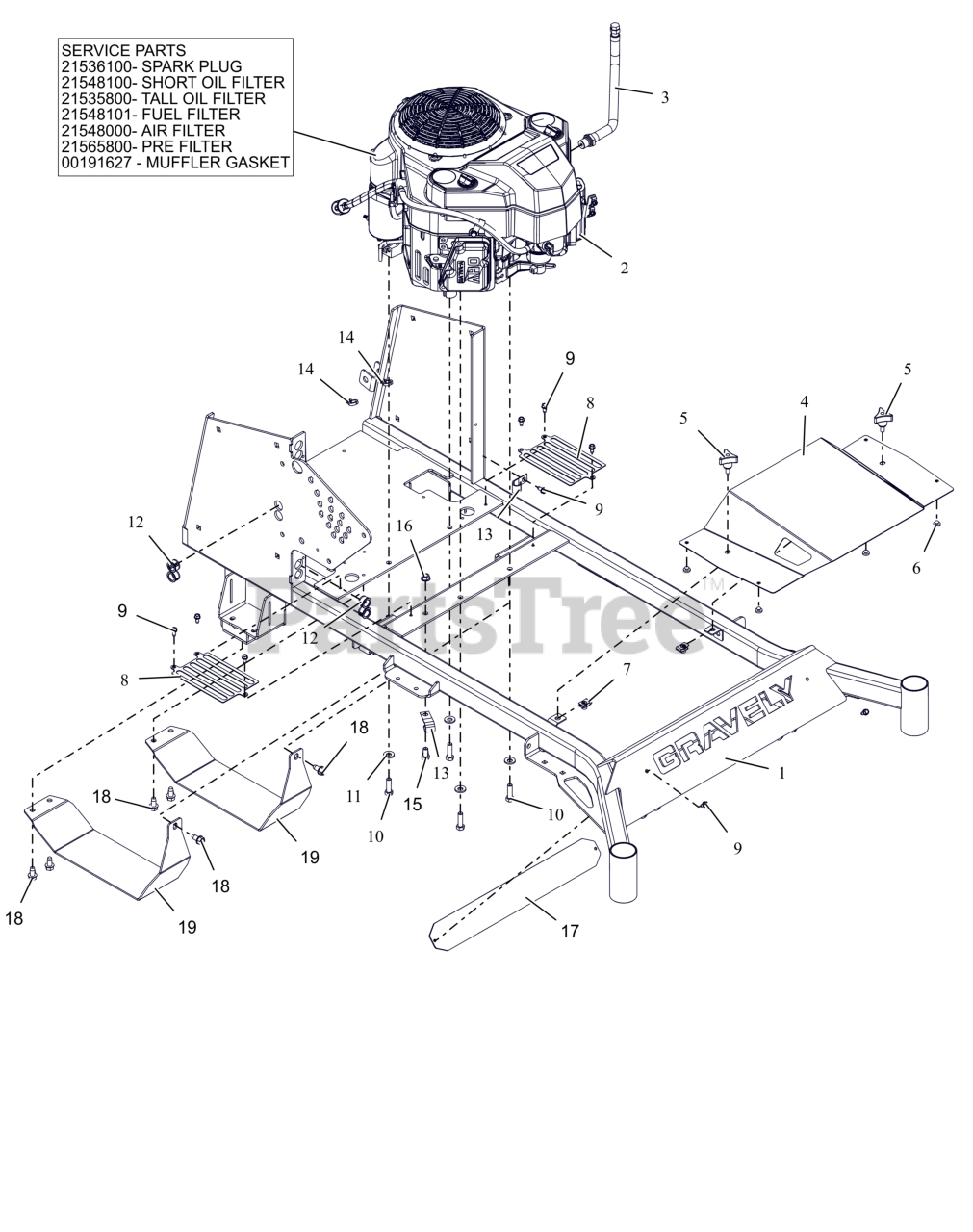

Engine and frame - 48" and 52" Parts Diagram

  • Title

1

Gravely 59407400

48-52" MAIN FRM WLDMT W/SAFRTY

$1293.99

$

Usually ships in 4-12 days

0

2

Gravely 08201423

ENGINE- KAW FS651V

$

$

Currently unavailable

2

Gravely 21536100

PLUG, SPARK

Note: Service Part Component

$3.49

$

In Stock, only 2 left!

0

2

Gravely 21548100

OIL FILTER, KAWASAKI FR
(Superseded to 49065-0721)

Note: Service Part Component

$18.99

$

In Stock, Qty 20+

0

2

Gravely 21535800

FILTER,OIL - KAW
(Superseded to 49065-0724)

Note: Service Part Component

$18.99

$

In Stock, Qty 20+

0

2

Gravely 21548101

FUEL FILTER-KAWASAKI FR
(Superseded to 21573800)

Note: Service Part Component

$

$

Not available

2

Gravely 21548000

AIR FILTER, KAWASAKI FR

Note: Service Part Component

$17.99

$

In Stock, Qty 20+

0

2

Gravely 21565800

PRE FILTER, KAWASAKI FS

Note: Service Part Component

$8.99

$

Usually ships in 4-12 days

0

2

Gravely 00191627

GASKET, MUFFLER S/O

Note: Service Part Component

$7.99

$

In Stock, only 2 left!

0

3

Gravely 07001730

HOSE, OIL DRAIN

$21.99

$

Usually ships in 4-12 days

0

4

Gravely 59407500

48-52" BELT CVR W/SAFETY DCLS

$62.99

$

Usually ships in 4-12 days

0

5

Gravely 07500008

KNOB,WING STUD 5/16-18 X .75

$5.99

$

In Stock, Qty 20+

0

6

Gravely 07503100

BUMPER GROMMET

$3.49

$

In Stock, only 3 left!

0

7

Gravely 07000829

NUT-CLIP RETAINER 5/16-18X.56

$

$

Not available

8

Gravely 09499053

GUARD- TRANSAXLE FAN (RED)

$

$

Not available

9

Gravely 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

10

Gravely 05901808

BLT, HEX .38-16X1.25 G5 ZCC NT

$1.99

$

In Stock, Qty 11

0

11

Gravely 06400927

WASHER, 3/8" SPRING DISC

$3.49

$

In Stock, only 2 left!

0

12

Gravely 07500126

BUSH, PANEL SNAP .687X.875X.56

$3.99

$

In Stock, only 2 left!

0

13

Gravely 06916000

J-CLAMP

$2.49

$

Usually ships in 4-12 days

0

14

Gravely 07500515

CLIP- PUSH-IN X-MAS TREE CABLE

$

$

Not available

15

Gravely 05901702

BLT,HEX .38-16X.75 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

16

Gravely 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

17

Gravely 04386551

BUMPER LOGO BACKING PLATE -BLK

$

$

Not available

18

Gravely 07400129

SCR,TAP .375-16X.75 HWH TR ZCC

$1.49

$

In Stock, Qty 20+

0

19

Gravely 09499151

BRKT-48-52" SKID PLATE (BLACK)

$

$

Not available
