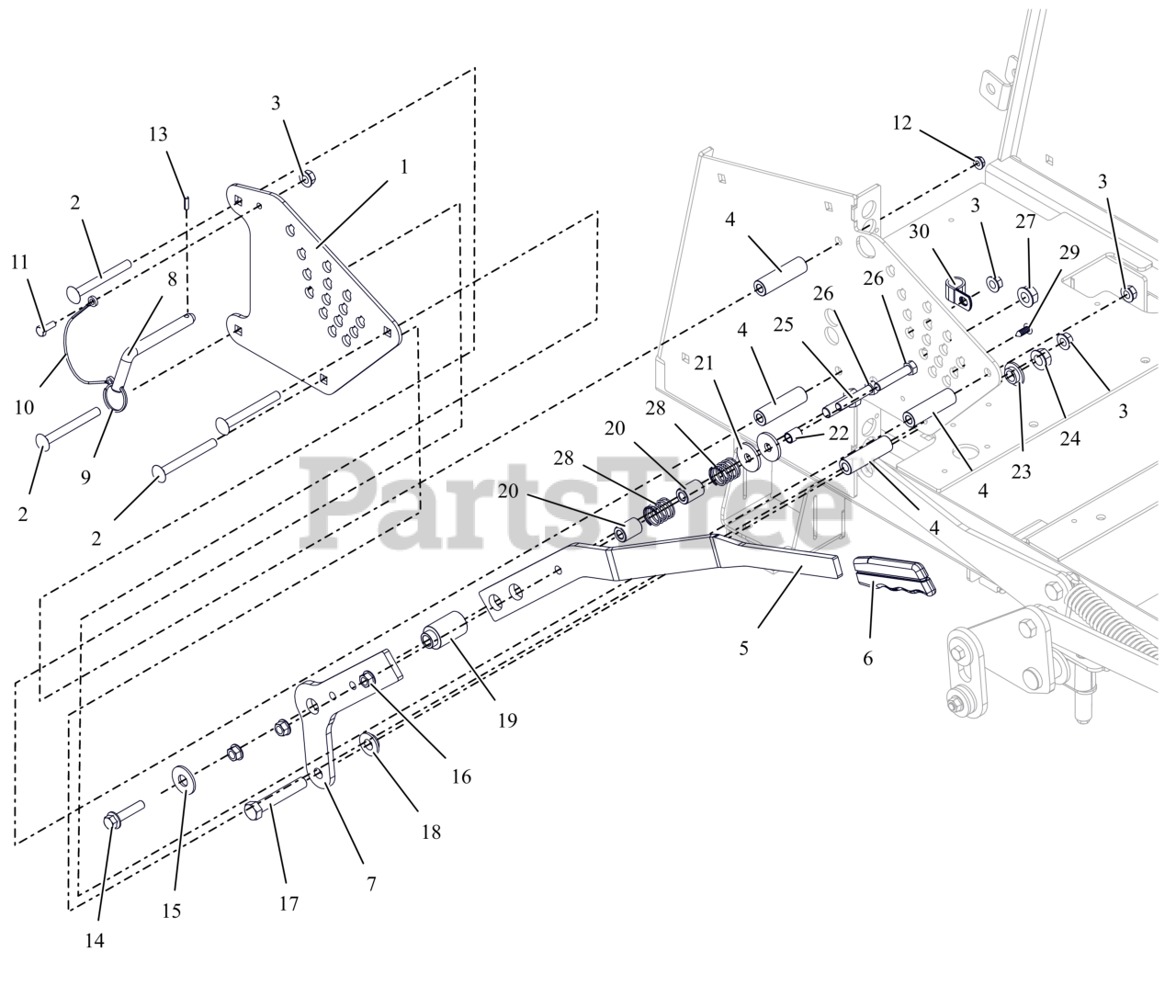

994158 - Gravely Z-Stance 52" Stand-On Mower, Kawasaki FS (SN: 000101 & Above) Height of Cut - 48" and 52" Parts Diagram

Z-Stance 52" Stand-On Mower, Kawasaki FS

Height of Cut - 48" and 52" Parts Diagram

  • Title
1

Gravely 09496553

PLATE- HOC PIN LOCATOR (RED)

$

$

Not available

2

Gravely 06200238

BLT,RHSSN .38-16X3.50 G5 ZCC

$3.99

$

In Stock, Qty 20+

0

3

Gravely 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

4

Gravely 05501503

SPCR- .390 X .750 X 2.646

$

$

Not available

5

Gravely 09497151

HANDLE- DECK LIFT UPPER(BLACK)

$

$

Not available

6

Gravely 05097200

GRIP, PARKING

$5.99

$

Usually ships in 4-12 days

0

7

Gravely 09496651

PLATE- HANDLE BASE (BLACK)

$

$

Not available

8

Gravely 07500517

PIN- HOC SELECTOR

$62.99

$

Usually ships in 4-12 days

0

9

Gravely 00967057

RING, WIRE - .080 X 1.25

$3.49

$

Usually ships in 4-12 days

0

10

Gravely 06900317

CABLE, 12.0 LANYARD, NYLON

$3.49

$

In Stock, only 2 left!

0

11

Gravely 05901716

BLT, HEX .25-20X.75 G5 ZCC

$0.99

$

In Stock, Qty 20+

0

12

Gravely 06500821

NUT-LK-CTR-FLG .25-20 ZC120

$0.99

$

In Stock, Qty 20+

0

13

Gravely 05806200

PIN-ROLL .188X.63

$5.99

$

Usually ships in 4-12 days

0

14

Gravely 05901719

BLT,HEX-FLG .38-16X1.75 G5 ZCC

$3.99

$

In Stock, only 4 left!

0

15

Gravely 06401012

WSHR,FLT .563X1.375X.109 ZCC

$2.49

$

In Stock, only 1 left!

0

16

Gravely 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

17

Gravely 05901737

BLT, HEX .50-13X3.00 G5 ZCC

$4.99

$

In Stock, only 1 left!

0

18

Gravely 03989100

BSHG-FLG .515X.750X.310X1.120

$3.49

$

In Stock, Qty 20+

0

19

Gravely 05501507

BSHG- SLV .515 X 1.125 X 2.013

$

$

Not available

20

Gravely 09655700

SPCR- .390 X .750 X 1.063

$

$

Not available

21

Gravely 06401121

WSHR,FLT .406X1.375X.135 ZCC

$5.99

$

In Stock, only 1 left!

0

22

Gravely 05501226

SPCR, SLV .385X.500X.652

$3.49

$

In Stock, only 2 left!

0

23

Gravely 03989100

BSHG-FLG .515X.750X.310X1.120

$3.49

$

In Stock, Qty 20+

0

24

Gravely 06500902

NUT-LK-CTR-FLG .500-13 GG ZCC

$1.49

$

In Stock, Qty 20+

0

25

Gravely 05901631

BLT,HEX .50-13X1.50 G5 ZCC

$3.99

$

In Stock, only 1 left!

0

26

Gravely 05901718

BLT,HEX .38-16X2.00 G5 ZCC

$2.99

$

In Stock, only 1 left!

0

27

Gravely 06500902

NUT-LK-CTR-FLG .500-13 GG ZCC

$1.49

$

In Stock, Qty 20+

0

28

Gravely 08300727

SPRING- COMPRESSION

$

$

Not available

29

Gravely 07500125

RIVET, .25 NYLON PANEL

$1.49

$

In Stock, Qty 18

0

30

Gravely 06900036

CLAMP, CUSHIONED STEEL .75

$5.99

$

Usually ships in 4-12 days

0
