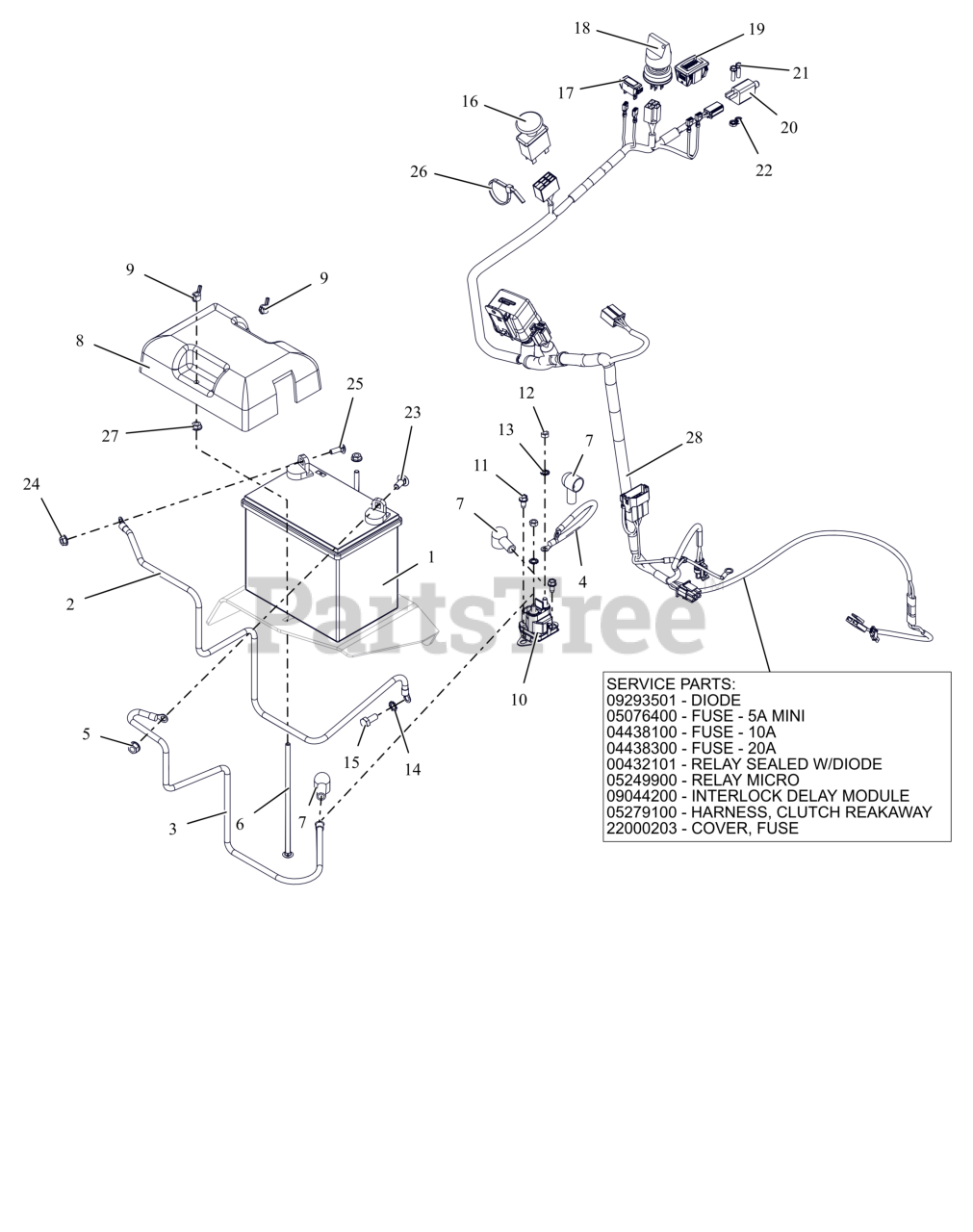

994158 - Gravely Z-Stance 52" Stand-On Mower, Kawasaki FS (SN: 000101 & Above) Electrical Parts Diagram

Z-Stance 52" Stand-On Mower, Kawasaki FS

Electrical Parts Diagram

  • Title

1

Gravely 01554800

BATTERY, 300 CCA 10U1L

$

$

Not available

2

Gravely 09449500

CABLE- GROUND

$

$

Not available

3

Gravely 09449300

CABLE- BATTERY

$

$

Not available

4

Gravely 03286000

CABLE-POSITIVE BATTERY 9.00"

$7.99

$

Usually ships in 4-12 days

0

5

Gravely 06500815

NUT,SPNLK-FLG .31-18 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

6

Gravely 06200424

BTL,RHSN .250-20 X 7.5 G5 ZCC

$4.99

$

In Stock, Qty 20+

0

7

Gravely 07533200

BOOT, EYELET TERMINAL

$3.49

$

In Stock, only 2 left!

0

8

Gravely 04912900

COVER, BATTERY

$11.99

$

In Stock, only 1 left!

0

9

Gravely 06500805

NUT, LK-WING .25-20 ZCC

$4.99

$

In Stock, Qty 11

0

10

Gravely 04781700

SOLENOID, STARTER (SEALED)

$44.99

$

In Stock, only 1 left!

0

11

Gravely 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

12

Gravely 06500925

NUT-STD M6-1.0 ZCC

$0.99

$

Usually ships in 4-12 days

0

13

Gravely 06300118

WSHR,LK-EXT.262X.502X.026 ZCC

$0.99

$

Usually ships in 4-12 days

0

14

Gravely 06300125

WSHR-LK-EXT 0.326X0.599X0.031 ZCC

$0.99

$

Usually ships in 4-12 days

0

15

Gravely 05901628

BLT, HEX M8-1.25X20 G8.8 ZCC

$1.49

$

Usually ships in 4-12 days

0

16

Gravely 01545600

SWITCH, CLUTCH

$26.99

$

In Stock, Qty 20+

0

17

Gravely 05128700

LIGHT, INDICATOR (RED)

$6.99

$

In Stock, only 1 left!

0

18

Gravely 04331600

SWITCH, IGNITION

$46.99

$

In Stock, Qty 20+

0

19

Gravely 09497400

HOUR METER

$23.99

$

In Stock, only 2 left!

0

20

Gravely 03657100

SWITCH- SINGLE POLE N.O.

$9.49

$

Usually ships in 4-12 days

0

21

Gravely 05901837

BLT, HWH #10-24X.75 ZCC

$2.49

$

In Stock, Qty 15

0

22

Gravely 06500934

NUT-KEPS 10-24

$3.99

$

Usually ships in 4-12 days

0

23

Gravely 06200232

BLT,RHSN .31-18X.75 G5 ZCC

$2.49

$

In Stock, Qty 20+

0

24

Gravely 06500824

NUT-SPNLK-FLG .25-20 ZC120

$0.99

$

In Stock, Qty 20+

0

25

Gravely 06200307

BLT, RHSN .25-20X.750 G5 ZCC

$0.99

$

In Stock, Qty 11

0

26

Gravely 07517300

CABLE TIE LG 5-1/2

$

$

Not available

27

Gravely 06500821

NUT-LK-CTR-FLG .25-20 ZC120

$0.99

$

In Stock, Qty 20+

0

28

Gravely 09445900

HARNESS, MAIN-ECON PRO-STANCE

$245.99

$

Usually ships in 0 days

0

28

Gravely 09293501

DIODE, CONNECTOR SHELL

Note: Service Part Component

$11.99

$

In Stock, only 2 left!

0

28

Gravely 05076400

FUSE, 5 AMP MINI-ATC

Note: Service Part Component

$2.49

$

Usually ships in 4-12 days

0

28

Gravely 04438100

FUSE,10 AMP MINI-ATC

Note: Service Part Component

$4.99

$

Usually ships in 4-12 days

0

28

Gravely 04438300

FUSE,20 AMP MINI ATC

Note: Service Part Component

$4.99

$

Usually ships in 4-12 days

0

28

Gravely 00432101

RELAY,SEALED W/DIODE

Note: Service Part Component

$22.99

$

In Stock, Qty 20+

0

28

Gravely 05249900

RELAY,SPNO,SEALED,ISO280,RESIS

Note: Service Part Component

$14.99

$

Usually ships in 4-12 days

0

28

Gravely 09044200

MODULE,INTERLOCK,DELAY, 1801

Note: Service Part Component

$71.99

$

In Stock, only 1 left!

0

28

Gravely 05279100

HARNESS, CLUTCH BREAKAWAY

Note: Service Part Component

$19.99

$

Usually ships in 4-12 days

0

28

Gravely 22000203

COVER, FUSE

Note: Service Part Component

$9.99

$

Usually ships in 4-12 days

0
