994158 - Gravely Z-Stance 52" Stand-On Mower, Kawasaki FS (SN: 000101 & Above) Drive Belt and Clutch - 48" and 52" Parts Diagram

Z-Stance 52" Stand-On Mower, Kawasaki FS

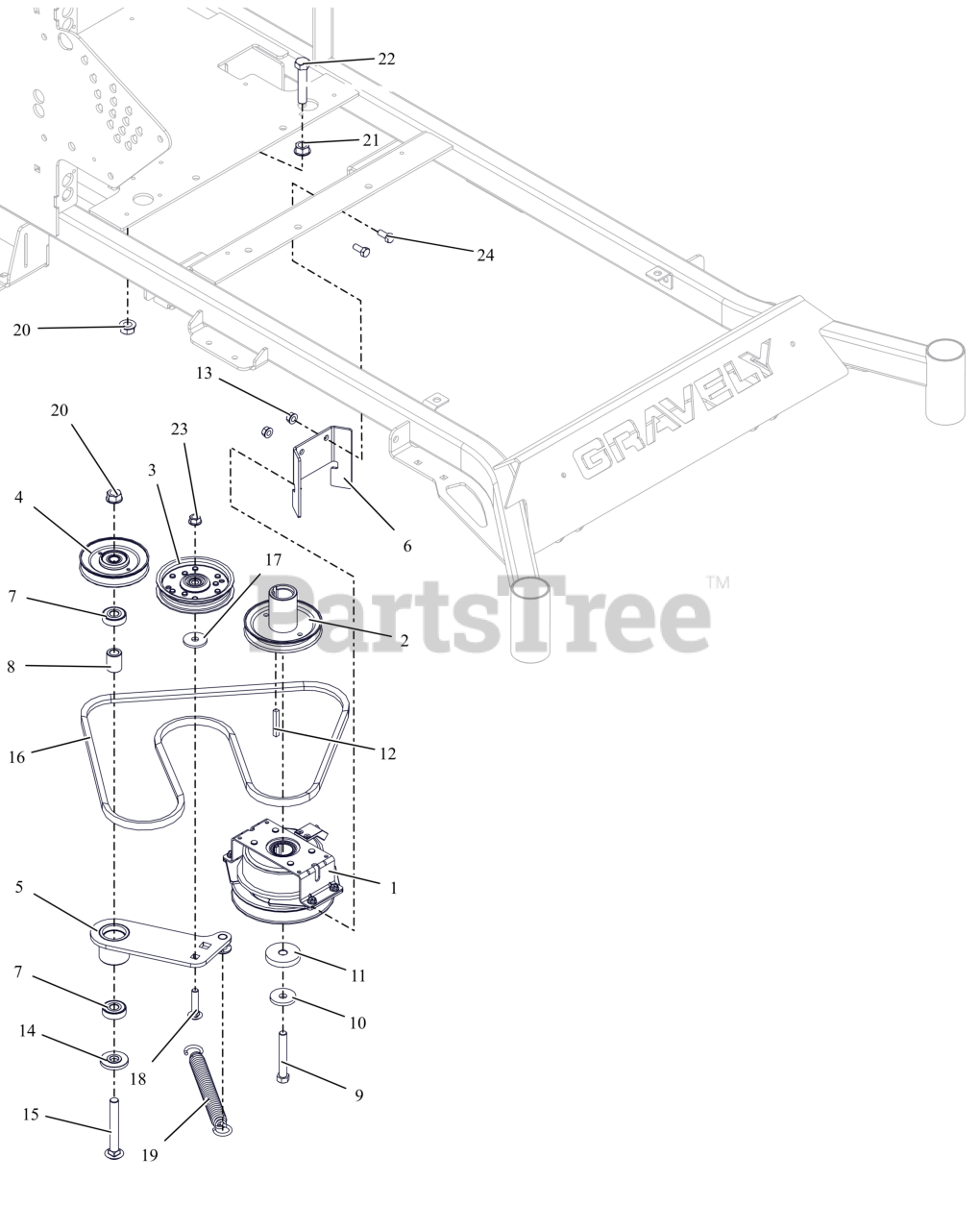

Drive Belt and Clutch - 48" and 52" Parts Diagram

  • Title
1

Gravely 05163000

CLUTCH, OGURA GT1.5-AR11(D)

$310.99

$

In Stock, only 1 left!

0

2

Gravely 07348600

SHEAVE, ENGINE 4.50 X 1.127

$113.99

$

Usually ships in 4-12 days

0

3

Gravely 07300101

ASM, 4" IDLER (.75 WIDE)

$62.99

$

In Stock, Qty 20+

0

4

Gravely 07344400

SHV, .50"ID X 4.00"OD V-IDLER

$35.99

$

Usually ships in 4-12 days

0

5

Gravely 09488800

WMT- HYDRO IDLER ARM

$74.99

$

Usually ships in 4-12 days

0

6

Gravely 09495853

BRKT- CLUTCH STOP (RED)

$

$

Not available

7

Gravely 05408000

BRG-BALL .500X1.38X.437

$5.99

$

In Stock, Qty 20+

0

8

Gravely 09357700

SPACER .510 X .867 X 1.1485

$4.99

$

In Stock, Qty 7

0

9

Gravely 05901819

BLT, HEX 0.4375-20X3 G8 ZCC NT

$5.99

$

In Stock, only 1 left!

0

10

Gravely 06400936

WASHER, 7/16" SPRING DISK

$11.99

$

In Stock, only 1 left!

0

11

Gravely 05501240

SPACER, .474/.459X2.00X.350

$14.99

$

In Stock, only 1 left!

0

12

Gravely 06601800

KEY-STR .25X1.75X.25

$3.99

$

In Stock, only 2 left!

0

13

Gravely 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

14

Gravely 04714600

SPACER, IDLER ARM

$5.99

$

In Stock, Qty 20+

0

15

Gravely 06200332

BTL,RHSN .500-13 X 3.75 G5 ZCC

$7.99

$

Usually ships in 4-12 days

0

16

Gravely 07200919

BELT- A SECTION

$62.99

$

Usually ships in 4-12 days

0

17

Gravely 06401121

WSHR,FLT .406X1.375X.135 ZCC

$5.99

$

In Stock, only 1 left!

0

18

Gravely 06200417

BLT, RHSN .38-16X1.75 G5 ZCC

$3.99

$

In Stock, only 2 left!

0

19

Gravely 08300728

SPRING- EXTENSION

$26.99

$

In Stock, Qty 20+

0

20

Gravely 06500902

NUT-LK-CTR-FLG .500-13 GG ZCC

$1.49

$

In Stock, Qty 20+

0

21

Gravely 06500928

NUT, SPNLK-FLG .50-13 G5 ZCC

$3.99

$

Usually ships in 4-12 days

0

22

Gravely 05901712

BLT, HEX .50-13X2.50 G5 ZCC

$3.99

$

In Stock, only 3 left!

0

23

Gravely 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

24

Gravely 05901704

BLT,HEX .31-18X.75 G5 ZCC

$1.49

$

In Stock, Qty 20+

0
