994158 - Gravely Z-Stance 52" Stand-On Mower, Kawasaki FS (SN: 000101 & Above) Deck Lift Linkage Parts Diagram

Z-Stance 52" Stand-On Mower, Kawasaki FS

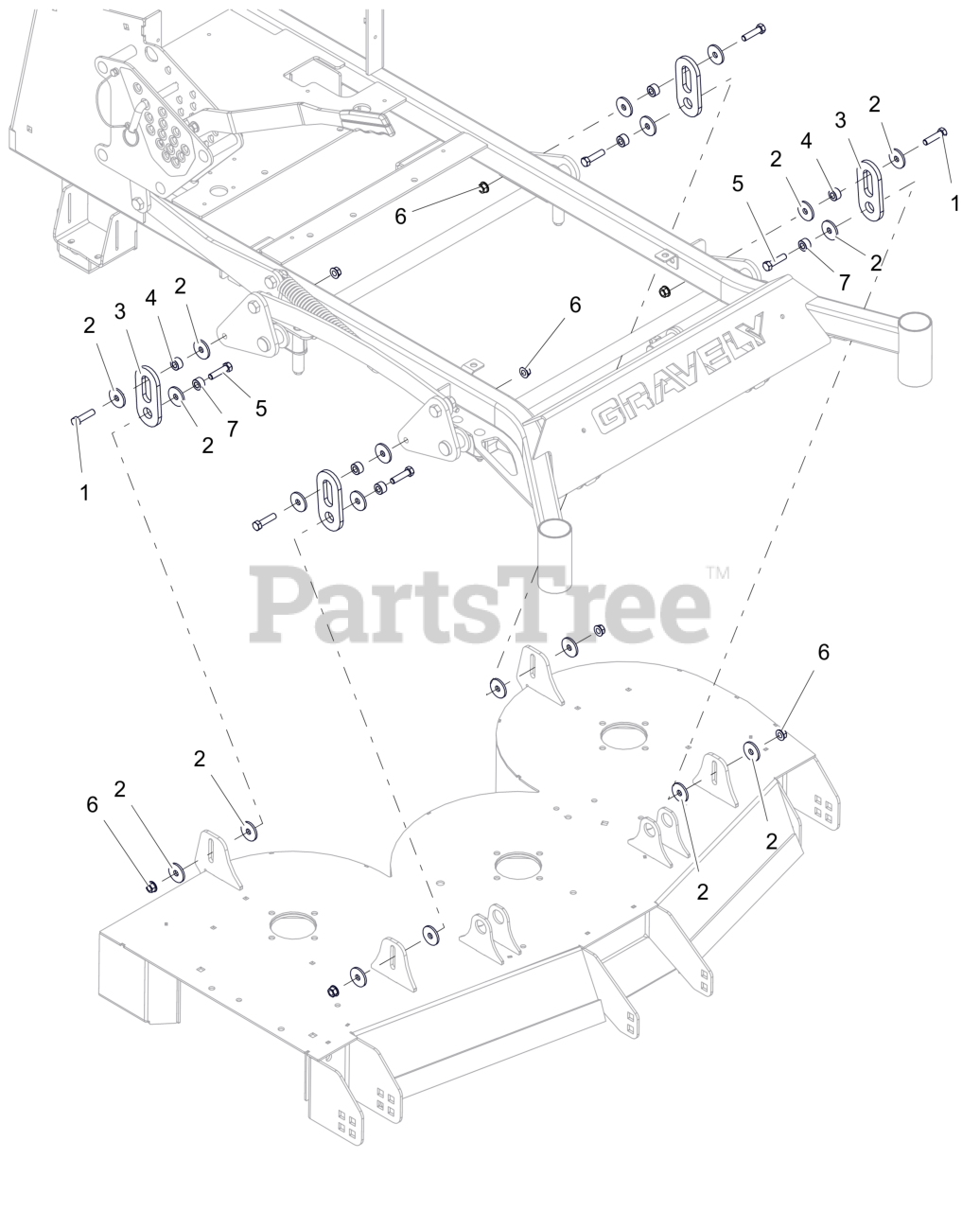

Deck Lift Linkage Parts Diagram

  • Title
1

Gravely 05901928

BLT, HEX .38-16X1.50 G5 ZCC

$1.49

$

In Stock, Qty 15

0

2

Gravely 06401121

WSHR,FLT .406X1.375X.135 ZCC

$5.99

$

In Stock, only 1 left!

0

3

Gravely 09496851

PLATE- DECK HANGER (BLACK)

$

$

Not available

4

Gravely 05501506

SPCR- .390 X .750 X .438

$13.99

$

Usually ships in 4-12 days

0

5

Gravely 05901928

BLT, HEX .38-16X1.50 G5 ZCC

$1.49

$

In Stock, Qty 15

0

6

Gravely 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

7

Gravely 05501506

SPCR- .390 X .750 X .438

$13.99

$

Usually ships in 4-12 days

0
