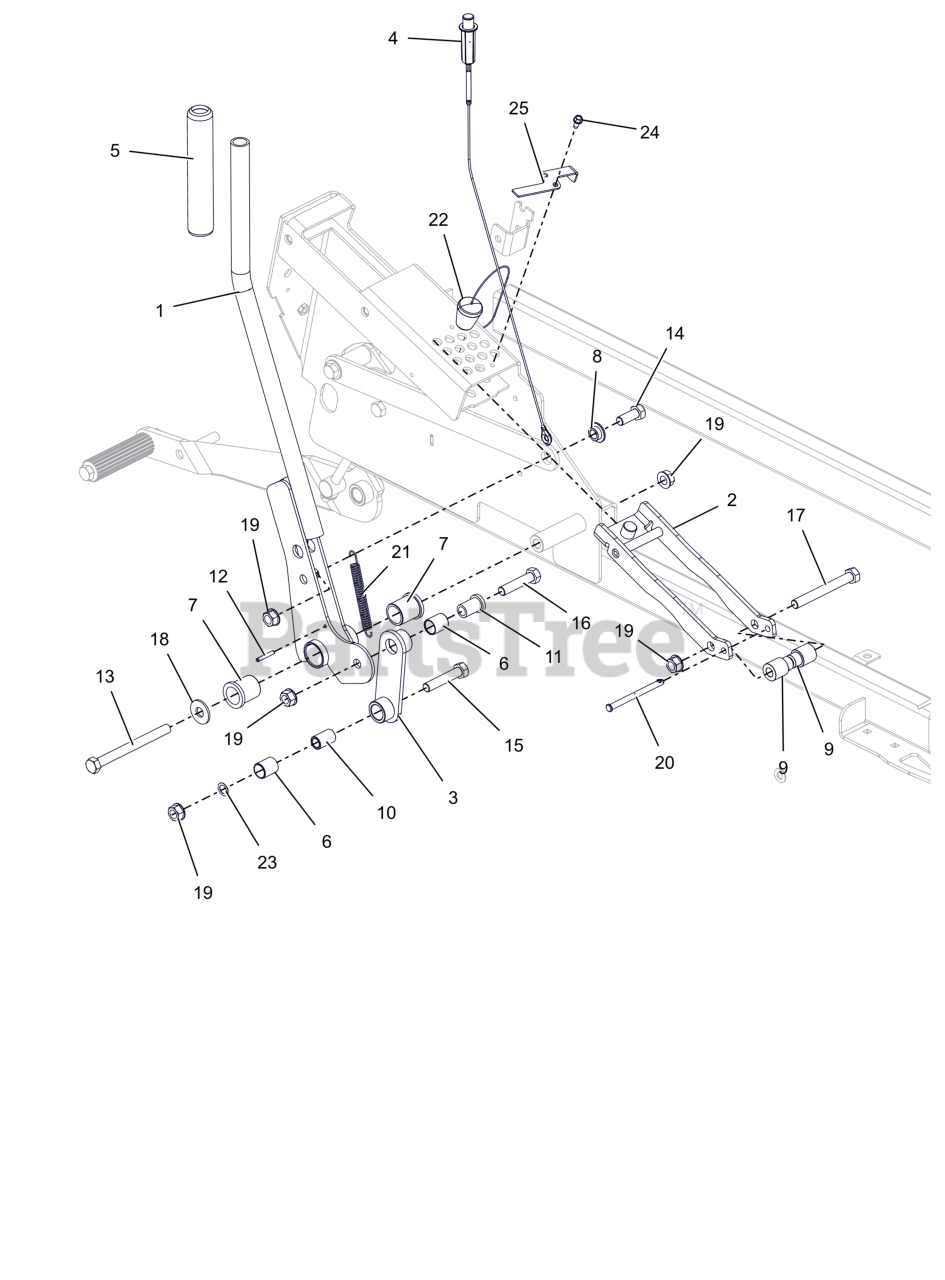

994157 - Gravely Pro-Stance 32" Stand-On Mower, Kawasaki FS (SN: 002000 & Above) Height of Cut Parts Diagram

Pro-Stance 32" Stand-On Mower, Kawasaki FS

Height of Cut Parts Diagram

  • Title

1

Gravely 05190551

WLDMT, HOC LEVER

$109.99

$

Usually ships in 4-12 days

0

2

Gravely 05193951

WLDMT, HOC BRACKET

$107.99

$

Usually ships in 4-12 days

0

3

Gravely 05198851

LINK, HOC LEVER

$33.99

$

Usually ships in 4-12 days

0

4

Gravely 06900718

CABLE, HOC PUSH CONTROL

$56.99

$

Usually ships in 4-12 days

0

5

Gravely 05242500

GRIP, DECK LIFT

$11.99

$

Usually ships in 4-12 days

0

6

Gravely 05400729

BRG, .750 X .875 X 1.000

$

$

Not available

7

Gravely 05500934

BSHG-FLG 1.00X1.25X1.50X1.50

$6.99

$

In Stock, Qty 20+

0

8

Gravely 05501135

BSHG, FLG .515X.750X.360X1.12

$18.99

$

Usually ships in 4-12 days

0

9

Gravely 05501333

BSHG,FLG

$21.99

$

Usually ships in 4-12 days

0

10

Gravely 05501338

SPCR, SLV .532 X .750 X 1.150

$22.99

$

Usually ships in 4-12 days

0

11

Gravely 05527200

BSHG-FLG .515X.746X1.290X1.000

$29.99

$

Usually ships in 4-12 days

0

12

Gravely 05800300

PIN-ROLL .188X1.25

$0.99

$

In Stock, Qty 20+

0

13

Gravely 05901632

BLT,HEX .50-13X5.50 G5 ZCC

$6.99

$

Usually ships in 4-12 days

0

14

Gravely 05901637

BLT,HEX .50-13X1.25 G5 ZCC

$3.49

$

In Stock, only 1 left!

0

15

Gravely 05901712

BLT, HEX .50-13X2.50 G5 ZCC

$3.99

$

In Stock, only 3 left!

0

16

Gravely 05901835

BLT, HEX .50-13X2.25 G5 ZCC

$3.49

$

In Stock, Qty 6

0

17

Gravely 05901906

BLT, HEX 0.5-13X4.25 GR5 ZCC

$4.99

$

In Stock, only 4 left!

0

18

Gravely 06401012

WSHR,FLT .563X1.375X.109 ZCC

$2.49

$

In Stock, only 2 left!

0

19

Gravely 06500902

NUT-LK-CTR-FLG .500-13 GG ZCC

$1.49

$

In Stock, Qty 20+

0

20

Gravely 06800204

PIN, SLIC-.3125X4.015X3.625 -ZCC

$17.99

$

Usually ships in 4-12 days

0

21

Gravely 08300516

SPRING,EXT,.061X.50X3.0

$14.99

$

In Stock, only 2 left!

0

22

Gravely 06800203

PIN, MAGNETIC .50X2.50
(Superseded to 06800218)

$22.99

$

Usually ships in 4-12 days

0

23

Gravely 06400015

WASHER, .500X.750X.020 THRUST

$1.49

$

In Stock, Qty 20+

0

24

Gravely 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

25

Gravely 09165251

BLOCK, HOC SELECTION (BLACK)

$

$

Not available
