994157 - Gravely Pro-Stance 32" Stand-On Mower, Kawasaki FS (SN: 002000 & Above) Fuel System Parts Diagram

Pro-Stance 32" Stand-On Mower, Kawasaki FS

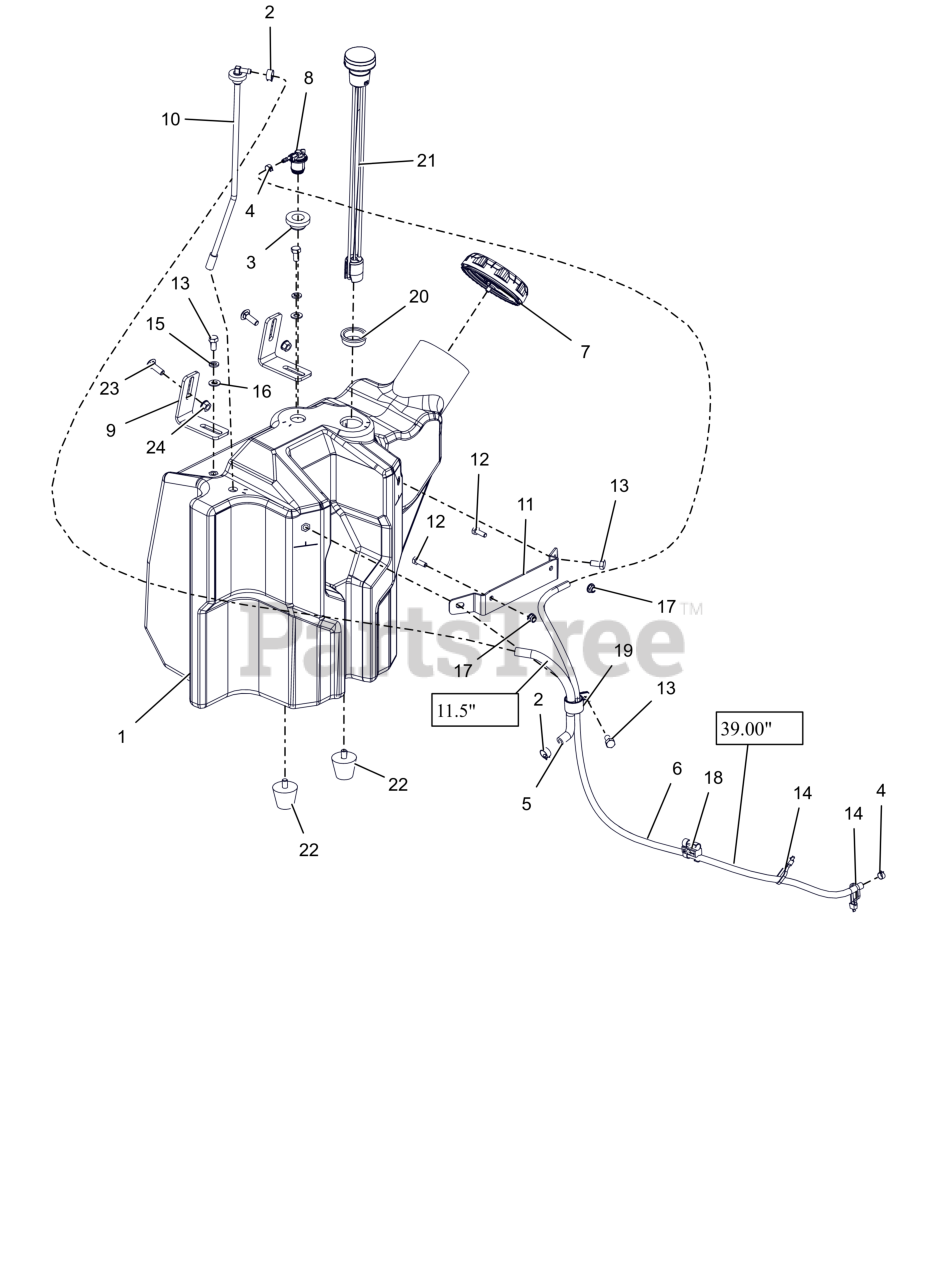

Fuel System Parts Diagram

  • Title

1

Gravely 05269100

ASM, 32-36" PROSTANCE FUEL TANK

$387.99

$

Usually ships in 4-12 days

0

2

Gravely 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 20+

0

3

Gravely 04082700

GROMMET, REMOTE VENT NITRILE

$3.49

$

In Stock, Qty 11

0

4

Gravely 04097700

CLAMP-HOSE, SPRING .188

$

$

Not available

5

Gravely 03278100

1 INCH OF HOSE, .25 LOW-PERM BULK GAS

$1.49

$

In Stock, Qty 20+

0

6

Gravely 03375900

HOSE, .188 LOW-PERM BULK GAS

$0.99

$

Usually ships in 4-12 days

0

7

Gravely 04558000

CAP, FUEL VENTIN AUTOLOCK
(Superseded to 09190300)

$33.99

$

In Stock, Qty 20+

0

8

Gravely 05185600

VALVE, COMBINATION VENT 3/16

$17.99

$

In Stock, only 1 left!

0

9

Gravely 05192553

BRKT, TANK HOLDDOWN

$56.99

$

Usually ships in 4-12 days

0

10

Gravely 05248300

ASM, PROSTANCE FUEL LINE PICK-UP

$

$

Not available

11

Gravely 05276951

BRKT, OVERFLOW MTG (BLACK)

$

$

Not available

12

Gravely 05901716

BLT, HEX .25-20X.75 G5 ZCC

$0.99

$

In Stock, Qty 20+

0

13

Gravely 05901832

BLT, HEX .31-18X.625 G5 ZCC

$

$

Not available

14

Gravely 00111910

CABLE TIE, .15 X 8.50

$

$

Not available

15

Gravely 06300119

WSHR,LK-REG .312X.078 ZCC

$0.99

$

In Stock, Qty 20+

0

16

Gravely 06401017

WSHR,FLT .344X.688X.065 ZCC

$0.99

$

In Stock, Qty 20+

0

17

Gravely 06500813

NUT,NYL-FLG .25-20 GF ZCC

$1.49

$

In Stock, Qty 15

0

18

Gravely 07001712

CLIP, T, .38-.50

$

$

Not available

19

Gravely 06917900

CLAMP, COUSHIONED STEEL REV

$14.99

$

Usually ships in 4-12 days

0

20

Gravely 07500221

GROMMET, FUEL GAUGE

$5.99

$

In Stock, only 1 left!

0

21

Gravely 07500311

GAUGE, REMOTE FUEL SEALED 15"

$

$

Not available

22

Gravely 07500428

BUMPER, STUD MOUNTED CONE SHAPED

$11.99

$

Usually ships in 4-12 days

0

23

Gravely 06200231

BLT,RHSN .31-18X1.00 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

24

Gravely 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0
