994157 - Gravely Pro-Stance 32" Stand-On Mower, Kawasaki FS (SN: 002000 & Above) Discharge Chute Parts Diagram

Pro-Stance 32" Stand-On Mower, Kawasaki FS

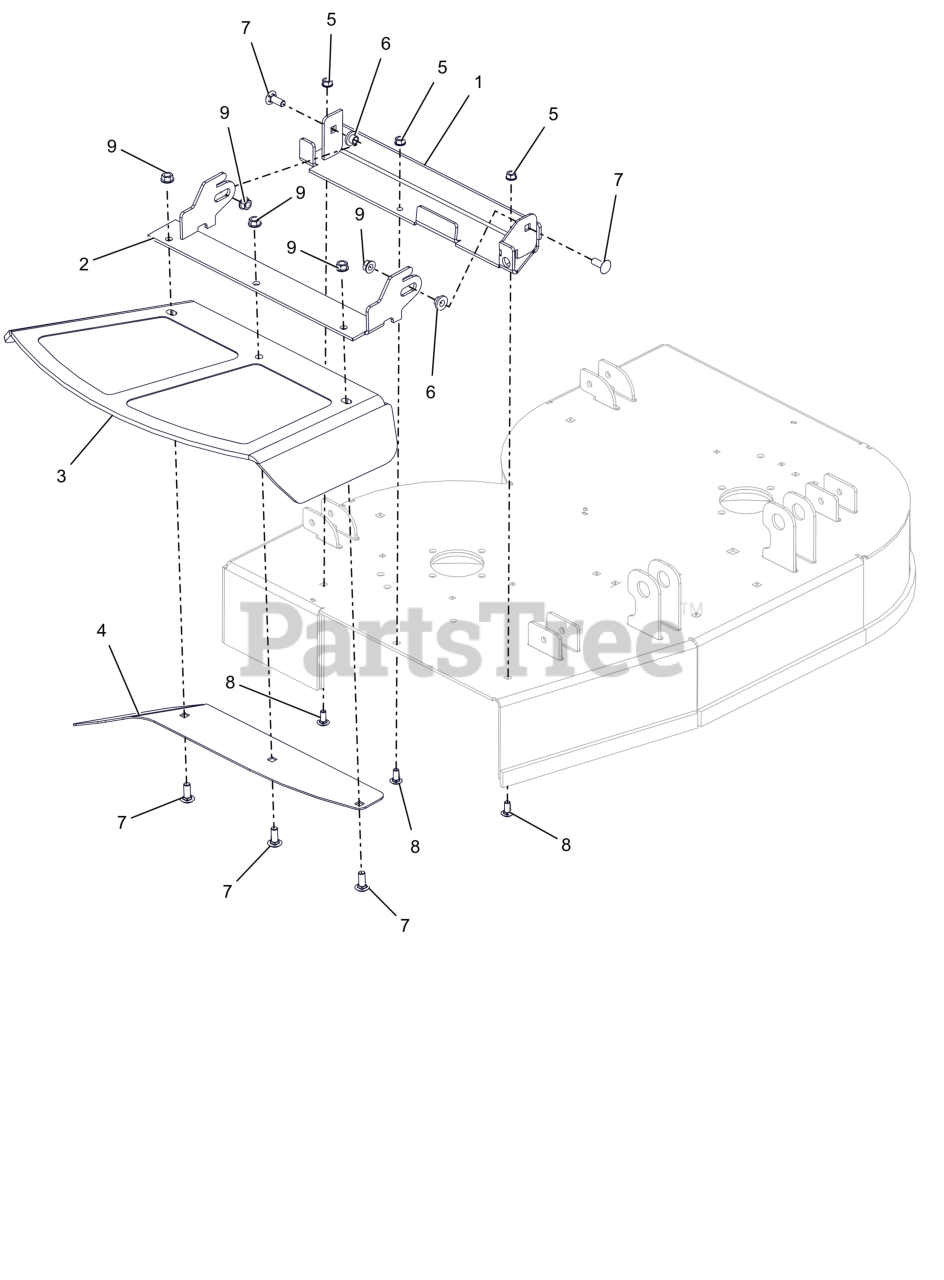

Discharge Chute Parts Diagram

  • Title
1

Gravely 05279753

WLDMT, DISCHARGE CHUTE (RED)

$

$

Not available

2

Gravely 05288753

WLDMT, 36" CHUTE MTG BRKT (RED)

$

$

Not available

3

Gravely 04881200

CHUTE,48-60" FRMD RUBBER DISCH

$75.99

$

In Stock, Qty 9

0

4

Gravely 09162451

PLATE, 32-36" DISCH CHUTE CLAMP (BLACK)

$

$

Not available

5

Gravely 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

6

Gravely 05500435

BSHG-FLG .385X.500X.875X.406

$2.49

$

In Stock, Qty 20+

0

7

Gravely 06200235

BLT,RHSSN .38-16X1.00 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

8

Gravely 06200309

BLT, RHSSN.31-18X.750 G5 ZCC

$2.49

$

In Stock, Qty 20+

0

9

Gravely 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0
