994157 - Gravely Pro-Stance 32" Stand-On Mower, Kawasaki FS (SN: 000101 - 001999) Tower and Dash Continued Parts Diagram

Pro-Stance 32" Stand-On Mower, Kawasaki FS

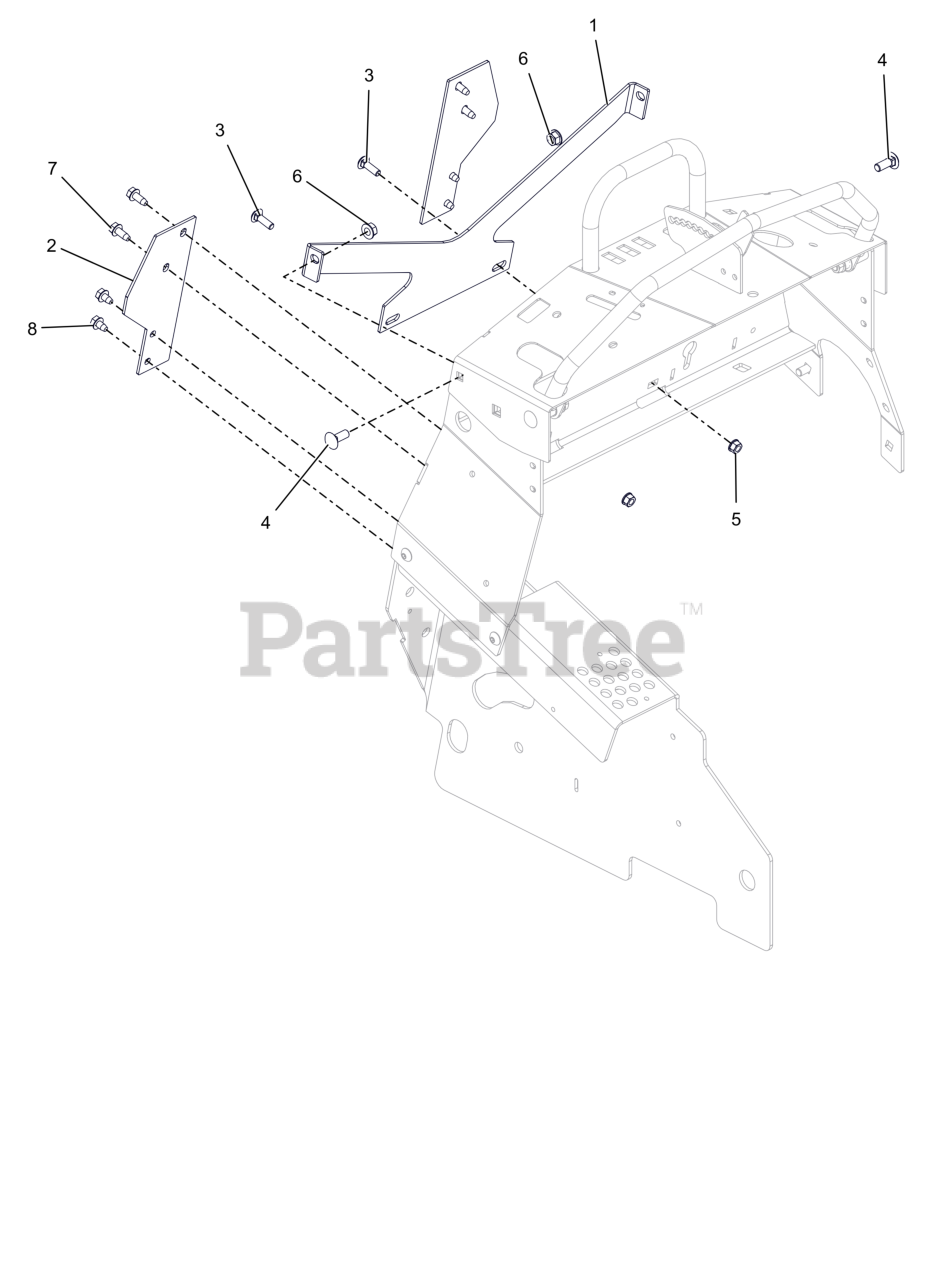

Tower and Dash Continued Parts Diagram

  • Title
1

Gravely 09165453

BRKT, UPPER REAR SUPPORT (RED)

$68.99

$

Usually ships in 4-12 days

0

2

Gravely 09165353

PLATE, LOWER REAR SUPPORT (RED)

$45.99

$

Usually ships in 4-12 days

0

3

Gravely 06200231

BLT,RHSN .31-18X1.00 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

4

Gravely 06200313

BLT, RHSN .38-16X1.00 G5 ZCC

$2.49

$

In Stock, Qty 10

0

5

Gravely 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

6

Gravely 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

7

Gravely 07400127

SCR,TAP .312-18X.75 HWH TR ZCC

$1.49

$

In Stock, Qty 11

0

8

Gravely 07400124

SCR,TAP .312-18X.50 HWH TR ZCC

$1.49

$

In Stock, Qty 20+

0
