994157 - Gravely Pro-Stance 32" Stand-On Mower, Kawasaki FS (SN: 000101 - 001999) Tower and Dash Parts Diagram

Pro-Stance 32" Stand-On Mower, Kawasaki FS

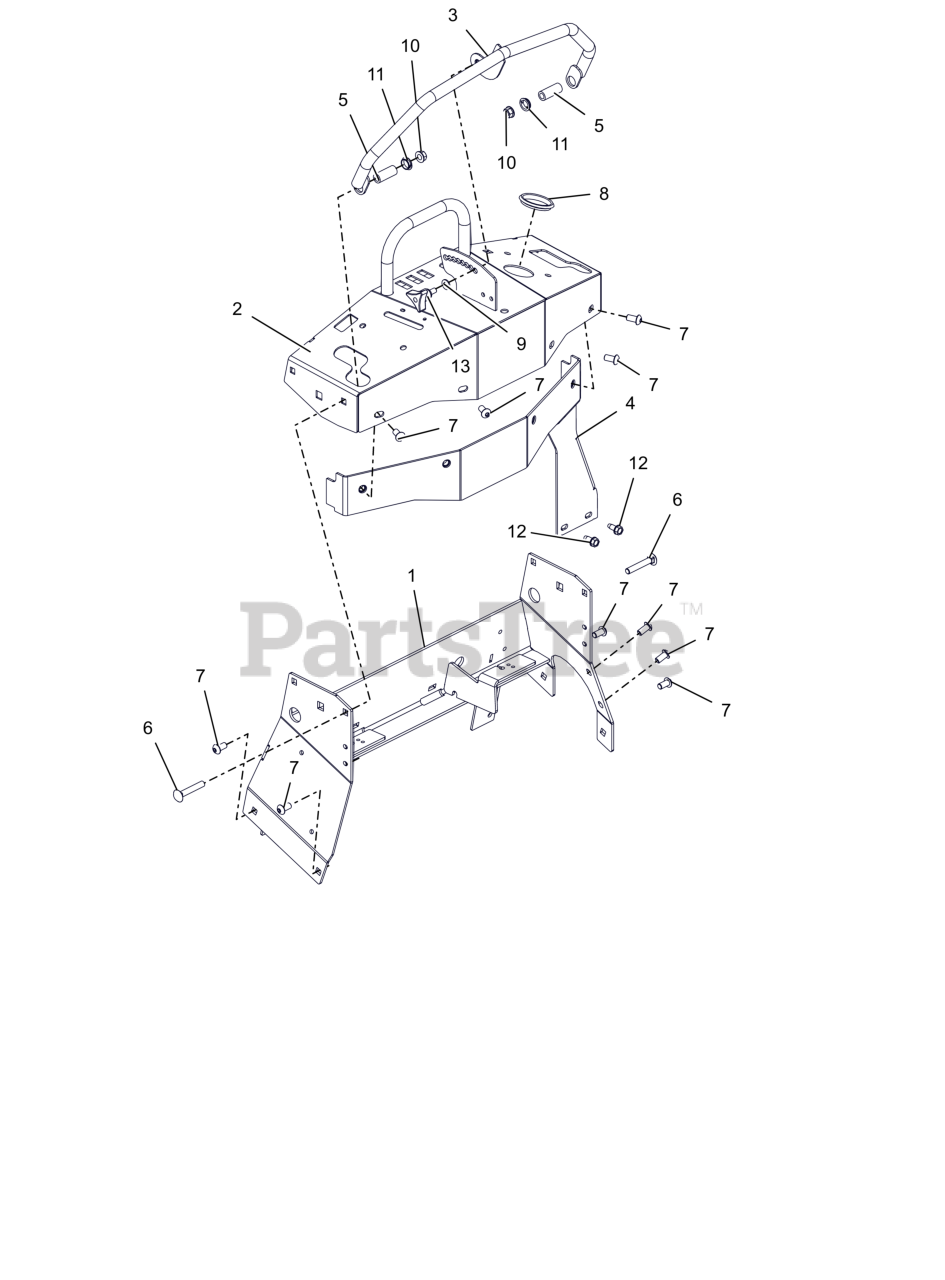

Tower and Dash Parts Diagram

  • Title

1

Gravely 09165953

WLDMT, TOWER (RED)

$142.99

$

Usually ships in 4-12 days

0

2

Gravely 09166053

WLDMT, DASH (RED)

$258.99

$

Usually ships in 4-12 days

0

3

Gravely 05190651

WLDMT, CRUISE BAR

$103.99

$

Usually ships in 4-12 days

0

4

Gravely 09165551

WLDMT, DASH ACCENT (BLACK)

$113.99

$

Usually ships in 4-12 days

0

5

Gravely 03954800

SPACER, .375 X .625 X 1.54

$6.49

$

Usually ships in 4-12 days

0

6

Gravely 06200301

BLT,RHSN .38-16X2.25 G5 ZCC

$3.99

$

In Stock, only 2 left!

0

7

Gravely 06100238

SCR,BTNHD .375-16X.75 ZCC

$3.99

$

Usually ships in 4-12 days

0

8

Gravely 07500433

GROMMET, RUBBER 1.89 ID

$

$

Not available

9

Gravely 06401017

WSHR,FLT .344X.688X.065 ZCC

$0.99

$

In Stock, Qty 20+

0

10

Gravely 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

11

Gravely 05500021

BUSHING, POLYLINER-.63 SNAPIN

$2.99

$

In Stock, Qty 13

0

12

Gravely 07400127

SCR,TAP .312-18X.75 HWH TR ZCC

$1.49

$

In Stock, Qty 11

0

13

Gravely 07500008

KNOB,WING STUD 5/16-18 X .75

$5.99

$

In Stock, Qty 20+

0
