994157 - Gravely Pro-Stance 32" Stand-On Mower, Kawasaki FS (SN: 000101 - 001999) Parking Brake Parts Diagram

Pro-Stance 32" Stand-On Mower, Kawasaki FS

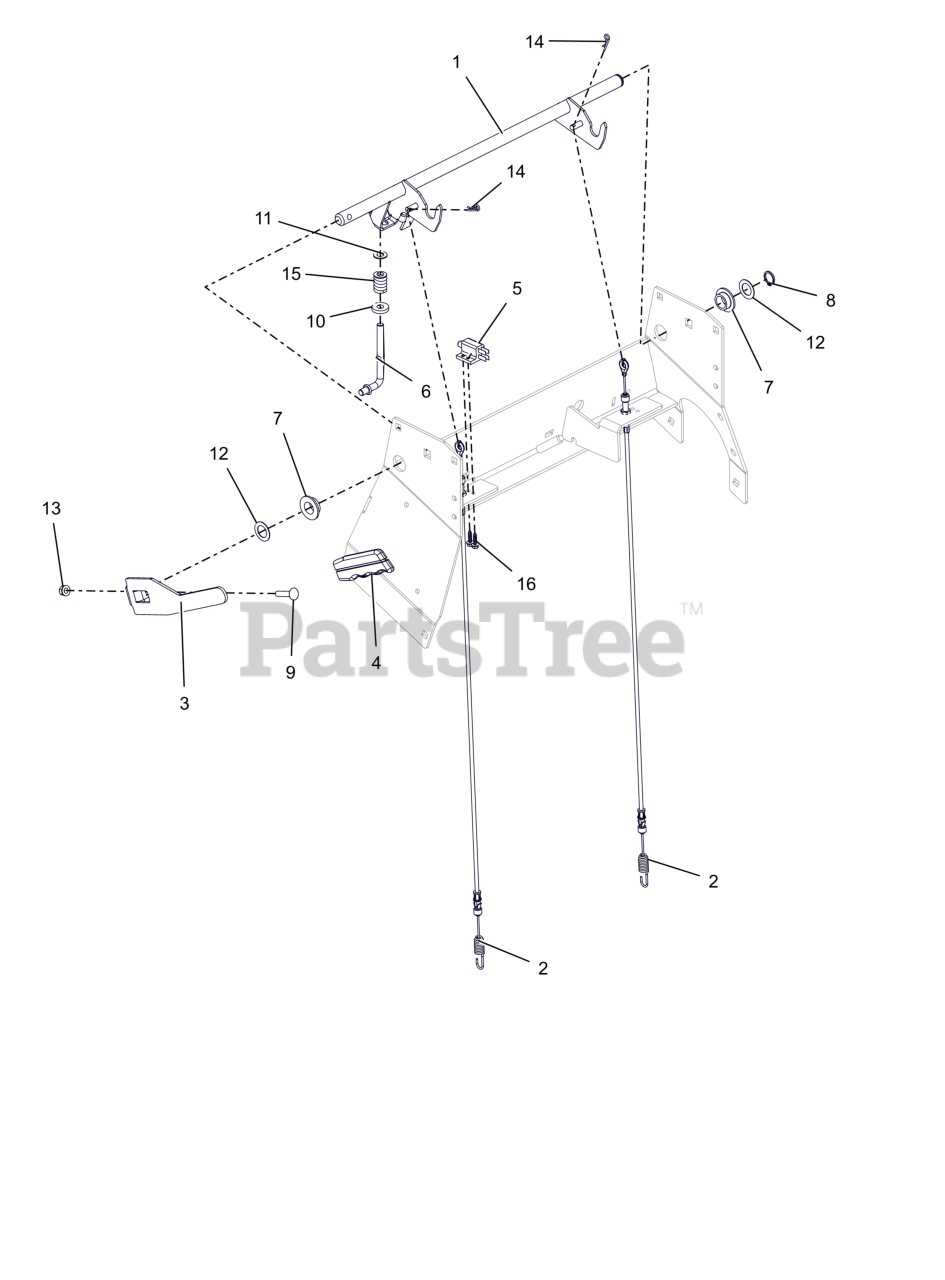

Parking Brake Parts Diagram

  • Title

1

Gravely 05190451

WLDMT, PARKING BRAKE SHAFT (BLACK)

$186.99

$

In Stock, only 1 left!

0

2

Gravely 06900719

CABLE, BREAK - PROSTANCE

$28.99

$

In Stock, only 1 left!

0

3

Gravely 05259951

HANDLE, PARK BRAKE (BLACK)

$

$

Not available

4

Gravely 03826900

GRIP, PARKING BRAKE (YELLOW)

$3.99

$

In Stock, only 1 left!

0

5

Gravely 03606600

SWITCH- DOUBLE POLE N.O./N.O.

$17.99

$

In Stock, only 1 left!

0

6

Gravely 05166900

LINK, OVER CENTER BRAKE

$4.99

$

In Stock, only 1 left!

0

7

Gravely 05525200

BSHG-FLG .762X1.48X.44 NYL
(Superseded to 05501517)

$

$

Not available

8

Gravely 05714600

RG-RTNG-EXT .689X.078

$2.49

$

In Stock, Qty 5

0

9

Gravely 06200233

BLT,RHSN .31-18X1.50 G5 ZCC

$1.49

$

In Stock, Qty 19

0

10

Gravely 06401108

WSHR, FLT .406X1.00X.188 ZCC

$2.49

$

In Stock, Qty 20+

0

11

Gravely 06401129

WSHR-FL-STL 0.406X0.812X0.055 HRD

$1.49

$

In Stock, Qty 5

0

12

Gravely 06401136

WSHR-FL-STL 0.76X1.225X0.032 ZCC

$3.99

$

Usually ships in 4-12 days

0

13

Gravely 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

14

Gravely 06700222

PIN, HAIR #213 .08X1.19 ZCC

$0.99

$

In Stock, Qty 20+

0

15

Gravely 08320900

SG-COMP .187X.56X1.62

$4.99

$

In Stock, Qty 18

0

16

Gravely 06100232

SCR, PLASTITE-HWH 0.2 X 0.75 ZC120

$

$

Not available
