994157 - Gravely Pro-Stance 32" Stand-On Mower, Kawasaki FS (SN: 000101 - 001999) Front Casters Parts Diagram

Pro-Stance 32" Stand-On Mower, Kawasaki FS

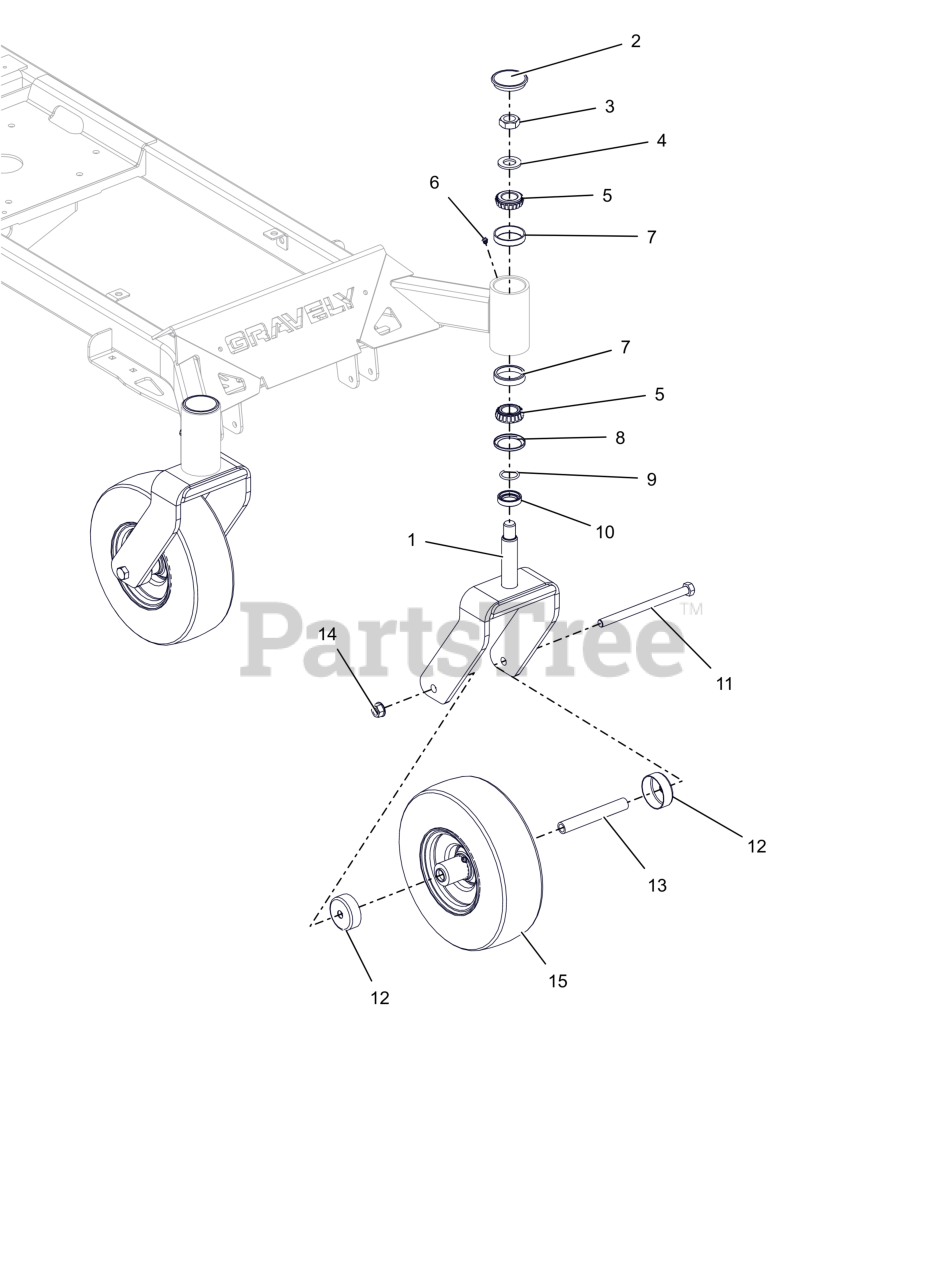

Front Casters Parts Diagram

  • Title

1

Gravely 05257053

WLDMT, CASTER FORK

$170.99

$

Usually ships in 4-12 days

0

2

Gravely 00456800

CAP, DUST

$18.99

$

In Stock, Qty 6

0

3

Gravely 06500933

NUT, JAM-TOPLOCK .750-16 ZCC

$3.99

$

In Stock, only 1 left!

0

4

Gravely 06401140

WSHR-FL-STL 0.812X1.469X0.134 ZCC

$1.49

$

In Stock, Qty 20+

0

5

Gravely 05406900

BRG-CONE 1.0X.58

$18.99

$

In Stock, Qty 20+

0

6

Gravely 07001727

FTG, .25-28 FLUSH MNT GREASE

$3.99

$

In Stock, only 1 left!

0

7

Gravely 05407000

BRG-CUP1.980X.420

$17.99

$

In Stock, Qty 20+

0

8

Gravely 00531400

BEARING SEAL 1.5 X 2 X .18

$10.99

$

In Stock, only 3 left!

0

9

Gravely 05610000

O-RING 1.000X1.250X

$3.99

$

In Stock, only 2 left!

0

10

Gravely 04720200

SPCR, CASTER FORK (1.00)

$15.99

$

In Stock, only 1 left!

0

11

Gravely 05901917

BLT, HEX 0.5-13X7 GR5 ZCC

$7.99

$

In Stock, only 1 left!

0

12

Gravely 09357800

SHIELD, WHEEL BEARING

$9.49

$

In Stock, Qty 20+

0

13

Gravely 00278500

SPACER, ROLLED WHEEL

$13.99

$

In Stock, Qty 20+

0

14

Gravely 06500902

NUT-LK-CTR-FLG .500-13 GG ZCC

$1.49

$

In Stock, Qty 20+

0

15

Gravely 07101233

ASM, WHL/TIRE 11X4.00-5

$

$

Not available
