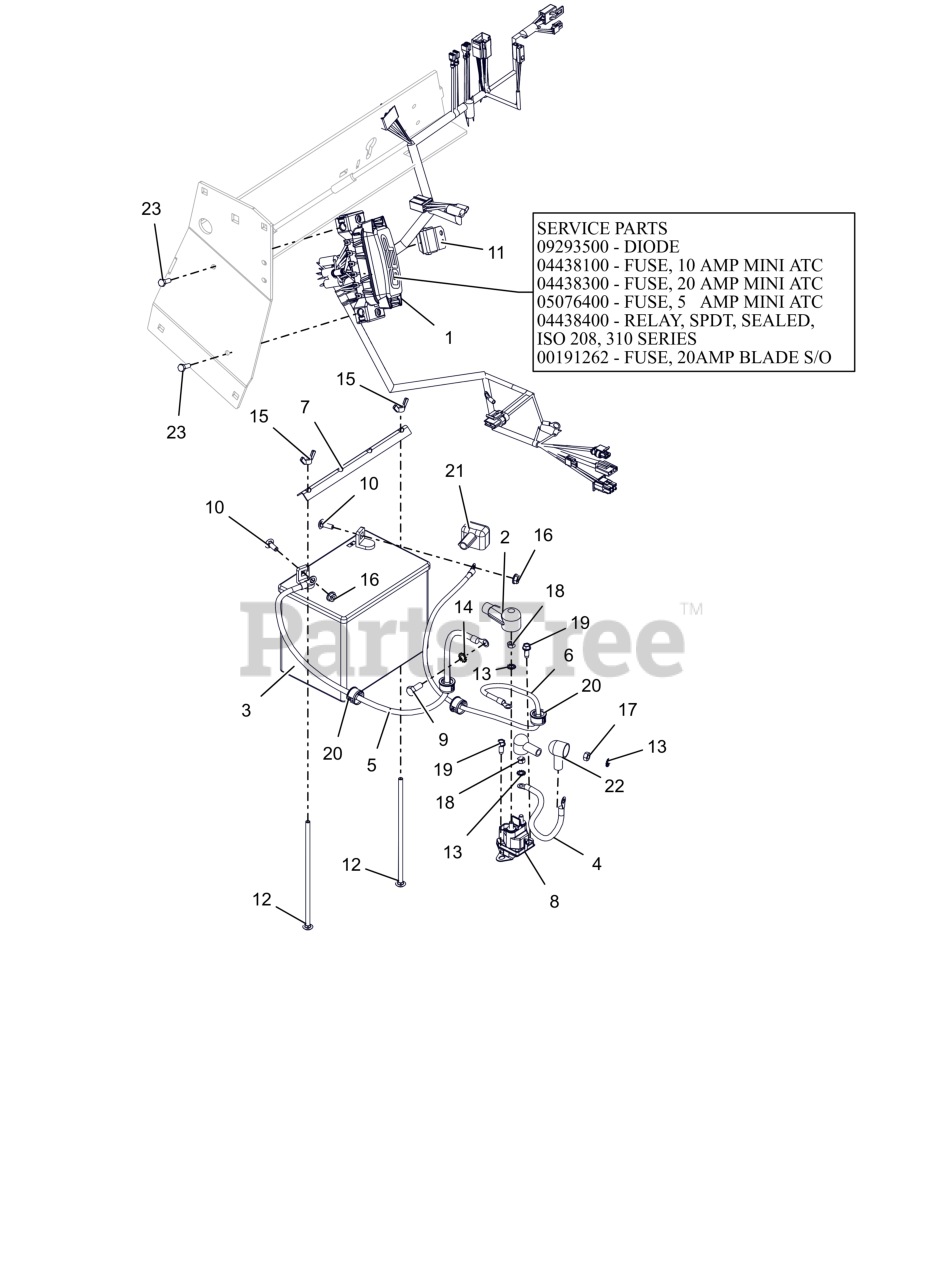

994157 - Gravely Pro-Stance 32" Stand-On Mower, Kawasaki FS (SN: 000101 - 001999) Electrical Parts Diagram

Pro-Stance 32" Stand-On Mower, Kawasaki FS

Electrical Parts Diagram

  • Title

1

Gravely 05189700

HARNESS, PROSTANCE

$323.99

$

Usually ships in 4-12 days

0

1

Gravely 09293500

DIODE, CONNECTOR SHELL
(Superseded to 09293501)

Note: Component Service Part

$11.99

$

In Stock, only 2 left!

0

1

Gravely 04438100

FUSE,10 AMP MINI-ATC

Note: Component Service Part

$4.99

$

Usually ships in 4-12 days

0

1

Gravely 04438300

FUSE,20 AMP MINI ATC

Note: Component Service Part

$

$

Not available

1

Gravely 05076400

FUSE, 5 AMP MINI-ATC

Note: Component Service Part

$

$

Not available

1

Gravely 04438400

RELAY,MICRO5 TERML W/RESISTOR

Note: Component Service Part

$19.99

$

In Stock, only 1 left!

0

1

Gravely 00191262

FUSE, 20 AMP BLADE S/O

Note: Component Service Part

$14.99

$

In Stock, only 1 left!

0

2

Gravely 00525800

BOOT, BATTERY TERMINAL-RED

$7.99

$

Usually ships in 4-12 days

0

3

Gravely 01554800

BATTERY, 300 CCA 10U1L

$

$

Not available

4

Gravely 03286000

CABLE-POSITIVE BATTERY 9.00"

$7.99

$

Usually ships in 4-12 days

0

5

Gravely 03288100

CABLE-NEGATIVE BATTERY 24.00"

$17.99

$

In Stock, only 2 left!

0

6

Gravely 03288400

CABLE-POSITIVE BATTERY 26.00"

$18.99

$

Usually ships in 4-12 days

0

7

Gravely 03494051

HOLD DOWN

$11.99

$

In Stock, only 2 left!

0

8

Gravely 04781700

SOLENOID, STARTER (SEALED)

$44.99

$

In Stock, only 1 left!

0

9

Gravely 05901628

BLT, HEX M8-1.25X20 G8.8 ZCC

$

$

Not available

10

Gravely 06200307

BLT, RHSN .25-20X.750 G5 ZCC

$0.99

$

In Stock, Qty 13

0

11

Gravely 09044200

MODULE,INTERLOCK,DELAY, 1801

$71.99

$

In Stock, only 1 left!

0

12

Gravely 06200424

BTL,RHSN .250-20 X 7.5 G5 ZCC

$4.99

$

In Stock, Qty 20+

0

13

Gravely 06300118

WSHR,LK-EXT.262X.502X.026 ZCC

$0.99

$

Usually ships in 4-12 days

0

14

Gravely 06300125

WSHR-LK-EXT 0.326X0.599X0.031 ZCC

$0.99

$

Usually ships in 4-12 days

0

15

Gravely 06500805

NUT, LK-WING .25-20 ZCC

$4.99

$

In Stock, Qty 13

0

16

Gravely 06500824

NUT-SPNLK-FLG .25-20 ZC120

$0.99

$

In Stock, Qty 20+

0

17

Gravely 06500916

NUT-STD .250-20 G2 ZCC

$0.99

$

In Stock, Qty 13

0

18

Gravely 06500925

NUT-STD M6-1.0 ZCC

$

$

Not available

19

Gravely 07400135

SCR,TAP .25-20X.625 HWH ZCC

$2.49

$

In Stock, Qty 6

0

20

Gravely 07500126

BUSH, PANEL SNAP .687X.875X.56

$3.99

$

In Stock, only 2 left!

0

21

Gravely 07505700

INSULATOR

$9.49

$

Usually ships in 4-12 days

0

22

Gravely 07533200

BOOT, EYELET TERMINAL

$3.49

$

In Stock, only 2 left!

0

23

Gravely 05901610

BLT, HEX M6-1.0 X 20 G8.8 ZCC

$

$

Not available
