994157 - Gravely Pro-Stance 32" Stand-On Mower, Kawasaki FS (SN: 000101 - 001999) Drive Belt and Clutch Parts Diagram

Pro-Stance 32" Stand-On Mower, Kawasaki FS

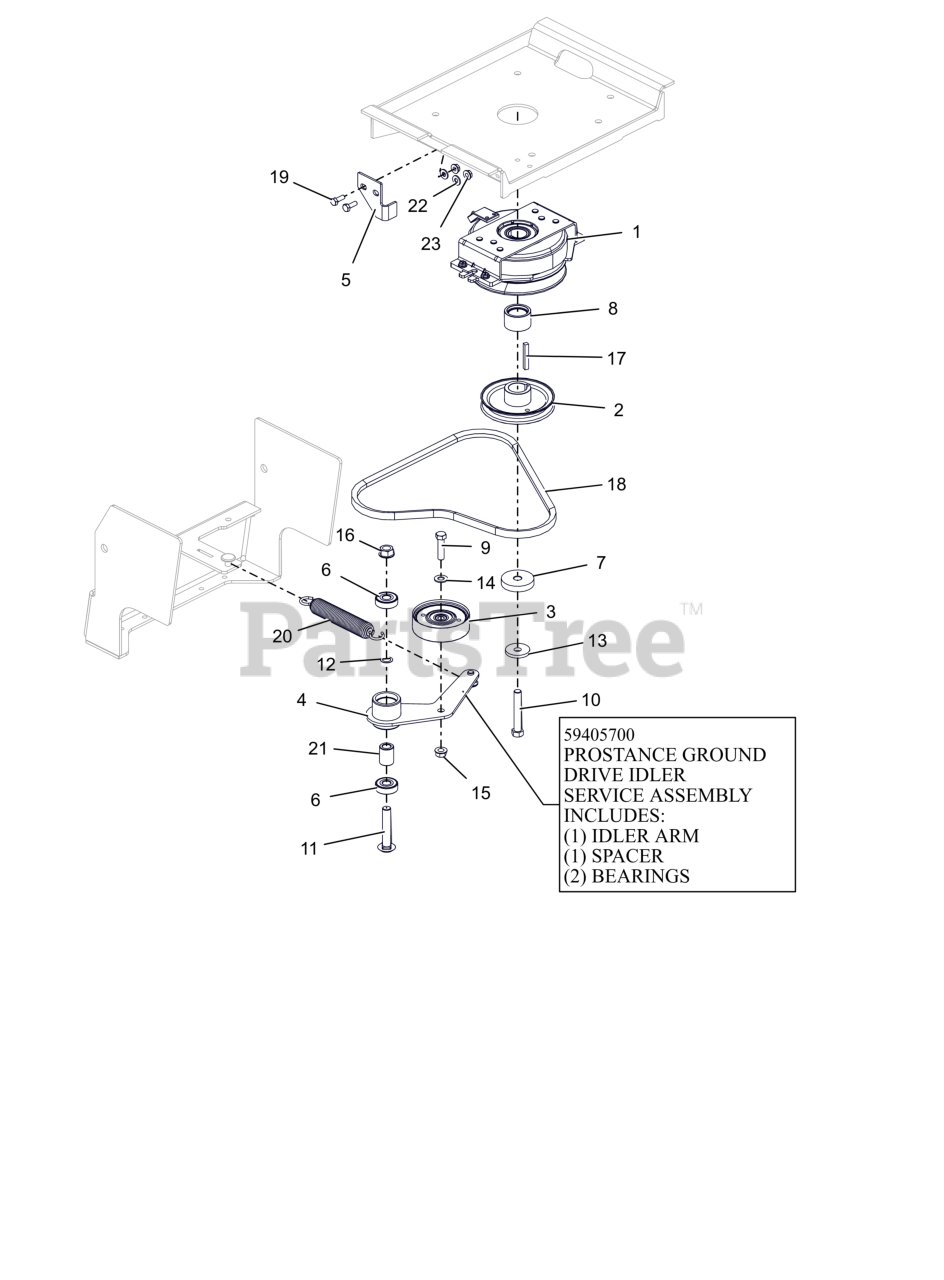

Drive Belt and Clutch Parts Diagram

  • Title

1

Gravely 05143700

CLUTCH, OGURA GT2.75-BBO1

$297.99

$

In Stock, only 1 left!

0

2

Gravely 07349151

SHEAVE, ENGINE 4.50 OD x 1.127 ID (BLACK)

$129.99

$

Usually ships in 4-12 days

0

3

Gravely 07341100

IDLER, FLAT 3.5" NO FLANGES

$113.99

$

In Stock, only 2 left!

0

4

Gravely 05252100

WLDMT, IDLER ARM

$56.99

$

Usually ships in 4-12 days

0

4

Gravely 59405700

Note: Service Component Assembly

$71.99

$

In Stock, only 2 left!

0

5

Gravely 09162351

BRKT, CLUTCH STOP (BLACK)

$

$

Not available

6

Gravely 05408000

BRG-BALL .500X1.38X.437

$5.99

$

In Stock, Qty 20+

0

7

Gravely 05501222

SPACER, .450X2.00X.396

$11.99

$

Usually ships in 4-12 days

0

8

Gravely 05501405

SPCR, CLUTCH

$34.99

$

Usually ships in 4-12 days

0

9

Gravely 05901928

BLT, HEX .38-16X1.50 G5 ZCC

$1.49

$

In Stock, Qty 14

0

10

Gravely 05902013

BLT, HEX 0.4375-20X2.75 G8 ZCC NT

$4.49

$

In Stock, Qty 11

0

11

Gravely 06200339

BTL,RHSSN .500-13 X 3.25 G5 ZCC

$3.99

$

In Stock, Qty 20+

0

12

Gravely 06400015

WASHER, .500X.750X.020 THRUST

$1.49

$

In Stock, Qty 20+

0

13

Gravely 06400936

WASHER, 7/16" SPRING DISK

$11.99

$

In Stock, only 1 left!

0

14

Gravely 06401013

WSHR,FLT .406X.812X.065 ZCC

$0.99

$

In Stock, Qty 20+

0

15

Gravely 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

16

Gravely 06500902

NUT-LK-CTR-FLG .500-13 GG ZCC

$1.49

$

In Stock, Qty 20+

0

17

Gravely 06601800

KEY-STR .25X1.75X.25

$3.99

$

In Stock, only 2 left!

0

18

Gravely 07200835

V-BELT, A -RAW EDGED LAMINATED

$

$

Not available

19

Gravely 05901716

BLT, HEX .25-20X.75 G5 ZCC

$0.99

$

In Stock, Qty 20+

0

20

Gravely 08300513

SPRING, EXTENSION 1.0 X 6.65

$34.99

$

In Stock, only 1 left!

0

21

Gravely 09357700

SPACER .510 X .75 X 1.1485

$4.99

$

In Stock, Qty 7

0

22

Gravely 06401001

WSHR,FLT .281X.625X.065 ZCC

$0.99

$

In Stock, Qty 20+

0

23

Gravely 06500903

NUT-LK-TOP-FLG .250-20 GF ZCC

$0.99

$

In Stock, Qty 20+

0
