994157 - Gravely Pro-Stance 32" Stand-On Mower, Kawasaki FS (SN: 000101 - 001999) Deck Belts Blades and Spindles - 32" Parts Diagram

Pro-Stance 32" Stand-On Mower, Kawasaki FS

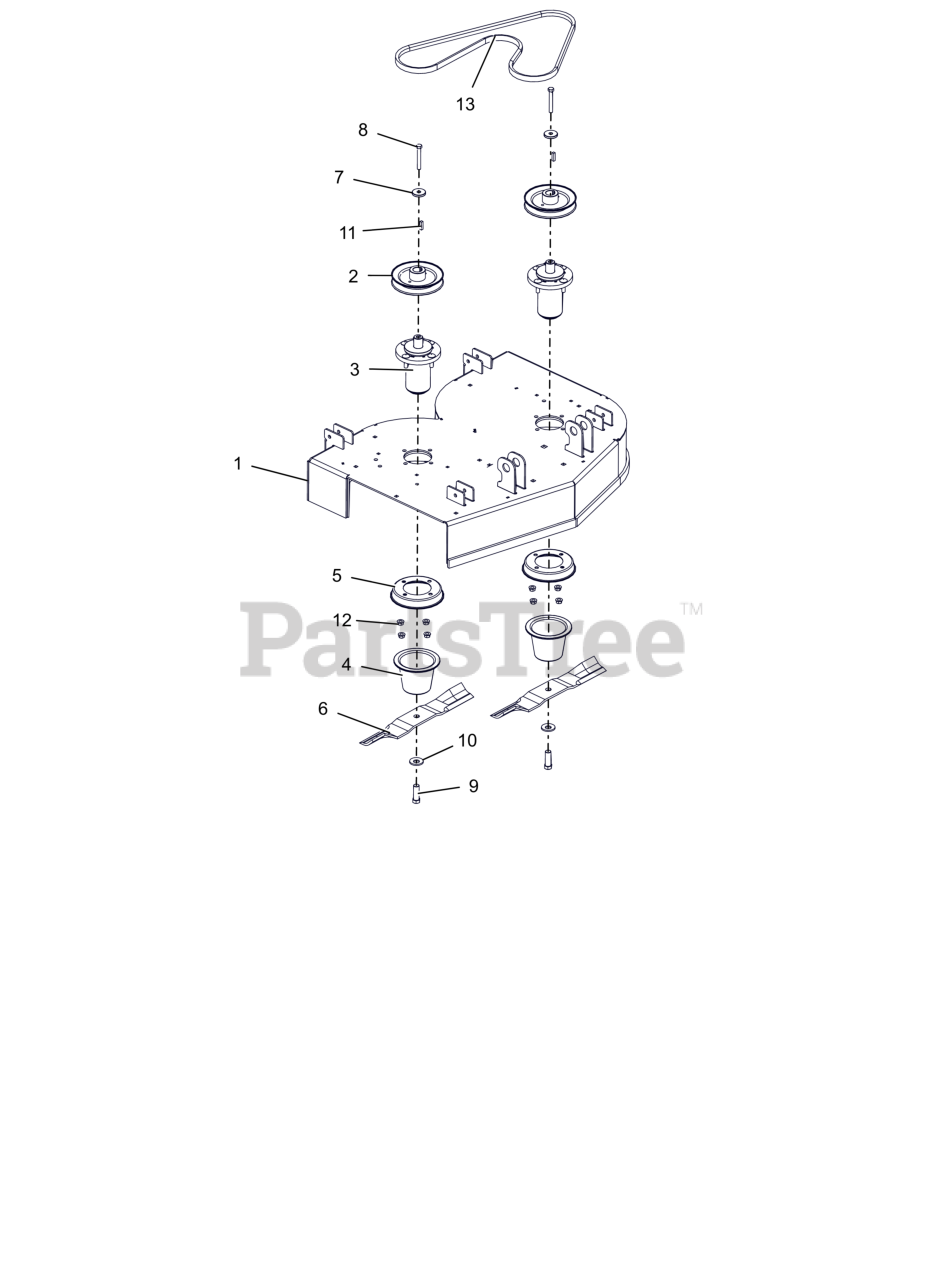

Deck Belts Blades and Spindles - 32" Parts Diagram

  • Title

1

Gravely 59405300

KIT, SVC 32" DECK W DECALS

$711.99

$

Usually ships in 4-12 days

0

2

Gravely 07349651

PULLEY, V-1.00 ID X 5.75 OD (BLACK)
(Superseded to 07349600)

$

$

Not available

3

Gravely 58810800

ASM, MAINT FREE ALUM SPINDLE

$239.99

$

In Stock, Qty 20+

0

4

Gravely 05011500

GUARD, SPINDLE LOWER

$

$

Not available

5

Gravely 05017000

GUARD, SPINDLE TOP

$

$

Not available

6

Gravely 00450200

BLADE, 16.19" MOWER (HI-LIFT)

$29.99

$

In Stock, Qty 20+

0

7

Gravely 04530500

RETAINER, SHEAVE

$7.99

$

In Stock, Qty 20+

0

8

Gravely 05901813

BLT, HEX .38-16X2.75 G8 ZCC

$1.49

$

In Stock, Qty 20+

0

9

Gravely 05901822

BLT, HEX .62-18X1.75 G8 ZCC

$3.49

$

In Stock, Qty 20+

0

10

Gravely 06445700

WSHR-BLVL .669X1.535X.138

$4.99

$

In Stock, only 3 left!

0

11

Gravely 06611200

KEY, SQ .25X.25X1.00 RC 40-50

$2.99

$

In Stock, Qty 15

0

12

Gravely 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

13

Gravely 07200833

V-BELT, 5L RAW EDGE EPDM

$52.99

$

In Stock, only 2 left!

0
