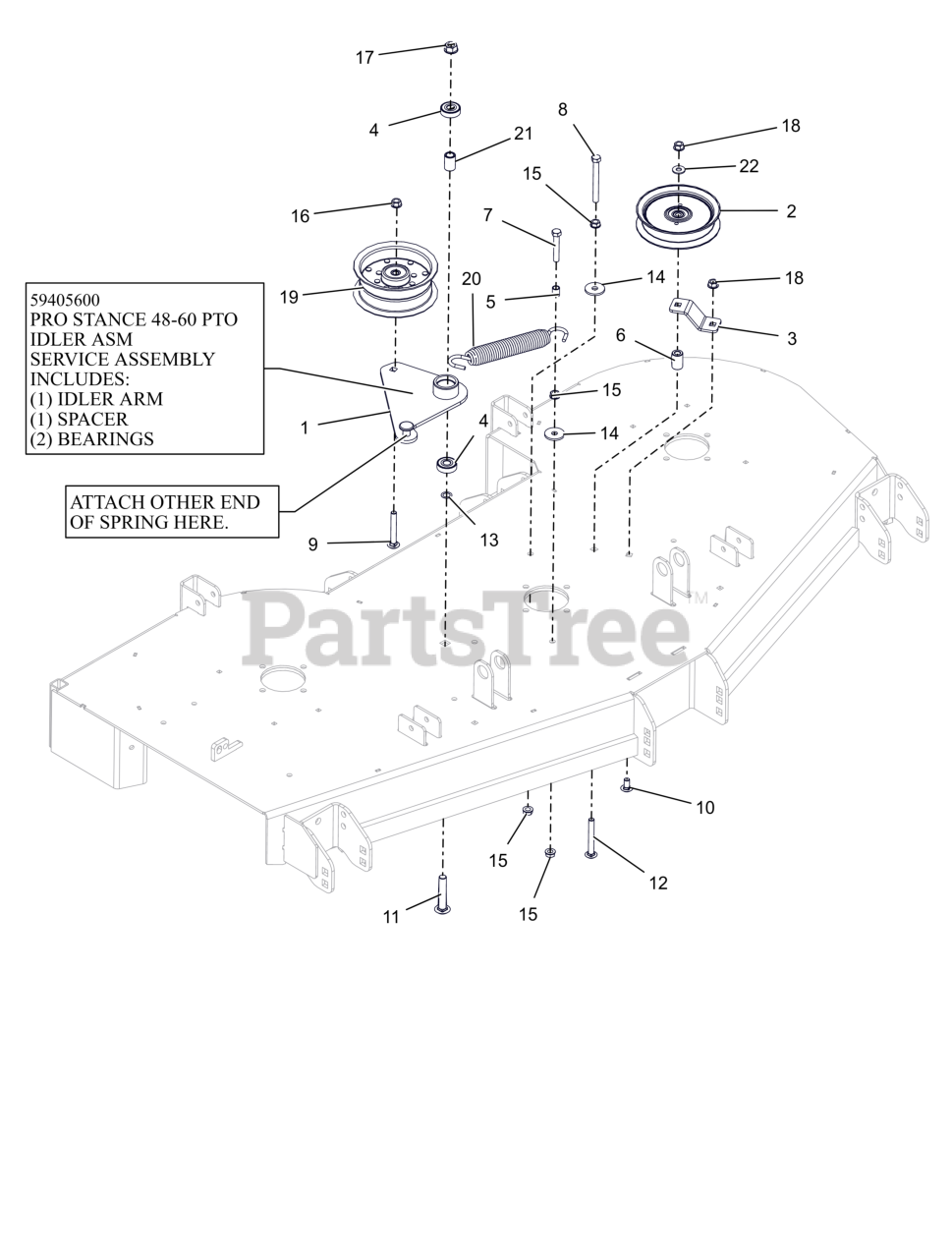

994154 - Gravely Pro-Stance 60" Stand-On Mower, Kawasaki FT EFI (SN: 000101 & Above) Idlers and Sheaves - 60" Parts Diagram

Pro-Stance 60" Stand-On Mower, Kawasaki FT EFI

Idlers and Sheaves - 60" Parts Diagram

  • Title
1

Gravely 05189400

WLDMT, PTO IDLER ARM

$85.99

$

Usually ships in 4-12 days

0

1

Gravely 59405600

PTO IDLER ASSEMBLY

Note: Service Part Assembly

$96.99

$

Usually ships in 4-12 days

0

2

Gravely 07345600

IDLER, FLAT 5.00"
(Superseded to 07351200)

$40.99

$

In Stock, Qty 16

0

3

Gravely 04981853

PTO FIXED IDLER MTG BRKT -RED

$9.49

$

In Stock, only 1 left!

0

4

Gravely 05408000

BRG-BALL .500X1.38X.437

$5.99

$

In Stock, Qty 15

0

5

Gravely 05501226

SPCR, SLV .385X.500X.652

$3.49

$

In Stock, only 2 left!

0

6

Gravely 05501308

BUSHING, SLV .380X.750X1.190

$4.99

$

In Stock, Qty 19

0

7

Gravely 05901640

BLT,HEX .38-16X2.25 G5 ZCC

$3.99

$

In Stock, Qty 20+

0

8

Gravely 05901818

BLT, HEX .38-16X3.50 G5 ZCC

$3.99

$

In Stock, Qty 20+

0

9

Gravely 06200316

BLT, RHSN .38-16X2.75 G5 ZCC

$3.99

$

In Stock, only 1 left!

0

10

Gravely 06200432

BTL,RHSSN .375-16 X 0.75 G5 FPB

$3.99

$

In Stock, only 1 left!

0

11

Gravely 06200433

BTL,RHSSN .500-13 X 2.75 G5 ZCC
(Superseded to 06200339)

$3.99

$

In Stock, Qty 20+

0

12

Gravely 06200434

BTL,RHSSN .375-16 X 3 G5 ZCC

$

$

Not available

13

Gravely 06400015

WASHER, .500X.750X.020 THRUST

$1.49

$

In Stock, Qty 20+

0

14

Gravely 06401121

WSHR,FLT .406X1.375X.135 ZCC

$5.99

$

In Stock, only 1 left!

0

15

Gravely 06500735

NUT, SPNLK-FLG .38-16 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

16

Gravely 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

17

Gravely 06500902

NUT-LK-CTR-FLG .500-13 GG ZCC

$1.49

$

In Stock, Qty 20+

0

18

Gravely 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

19

Gravely 07300532

PULLEY, FLAT 5.00X2.36X.375

$68.99

$

In Stock, Qty 12

0

20

Gravely 08300708

SPRING, EXTENSION

$19.99

$

In Stock, Qty 20+

0

21

Gravely 09357700

SPACER .510 X .75 X 1.1485

$4.99

$

In Stock, only 3 left!

0

22

Gravely 06401023

WSHR,FLT .375X.875X.083 ZCC

$1.49

$

In Stock, Qty 20+

0
