994152 - Gravely Pro-Stance 52" Stand-On Mower, Kawasaki FT EFI (SN: 000101 & Above) Anti-Scalp Wheels and Baffles - 52" Parts Diagram

Pro-Stance 52" Stand-On Mower, Kawasaki FT EFI

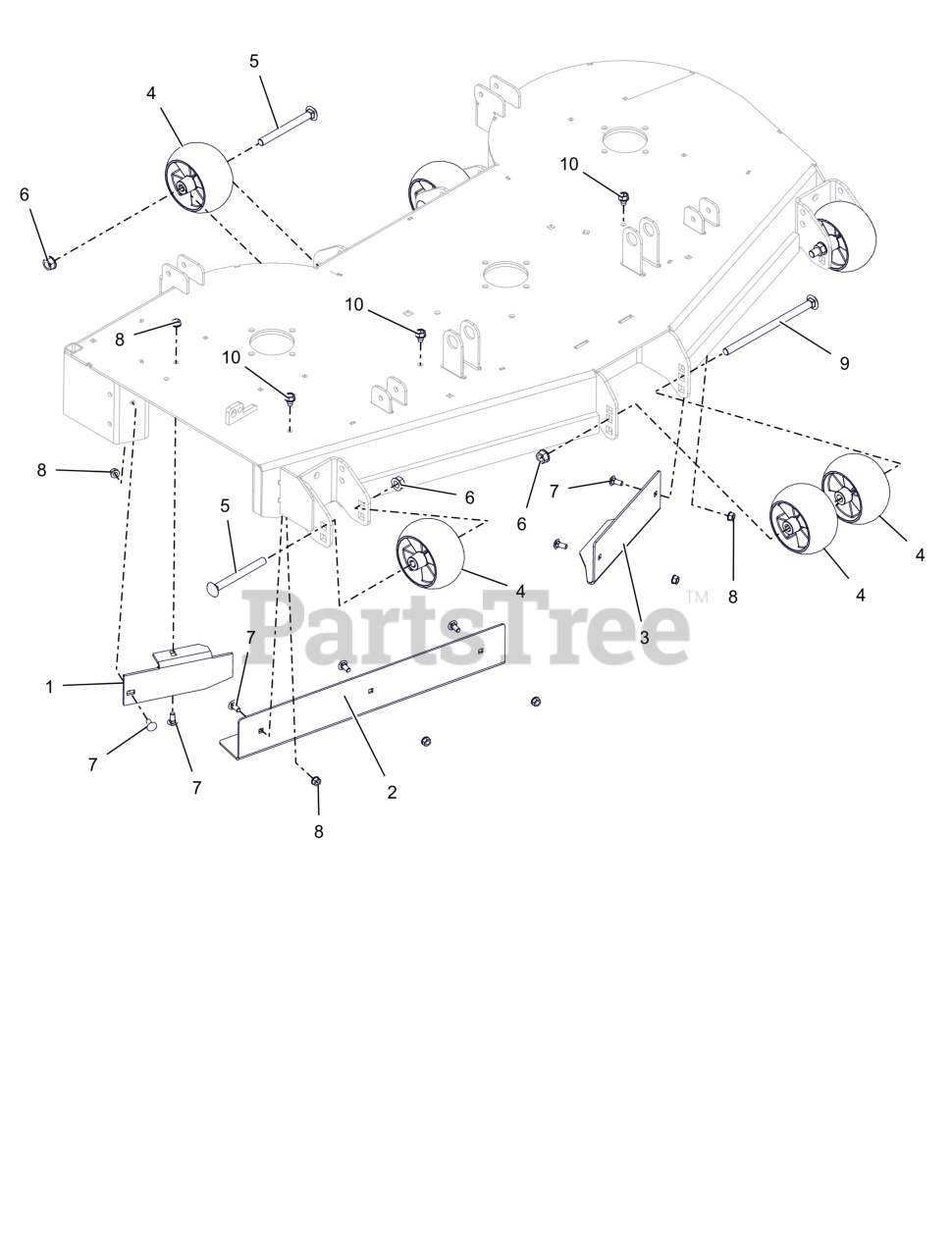

Anti-Scalp Wheels and Baffles - 52" Parts Diagram

  • Title
1

Gravely 00440853

52" DISCHARGE BAFFLE - RED

$37.99

$

Usually ships in 4-12 days

0

2

Gravely 05251753

BAFFLE, 52" RH VACUUM (RED)

$43.99

$

In Stock, only 1 left!

0

3

Gravely 05251853

BAFFLE, 52" LH VACUUM (RED)

$

$

Not available

4

Gravely 05268800

WHEEL, ANTI SCALP - 5X3 CTR W/RIBS

$11.99

$

In Stock, Qty 20+

0

5

Gravely 06200318

BLT, RHSN .50-13X5.00 G5 ZCC
(Superseded to 06200505)

$5.99

$

Usually ships in 4-12 days

0

6

Gravely 06500902

NUT-LK-CTR-FLG .500-13 GG ZCC

$1.49

$

In Stock, Qty 20+

0

7

Gravely 06200232

BLT,RHSN .31-18X.75 G5 ZCC

$2.49

$

In Stock, Qty 20+

0

8

Gravely 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

9

Gravely 06200436

BTL,RHSN .500-13 X 8.5S G5 ZCC
(Superseded to 06200506)

$6.99

$

Usually ships in 4-12 days

0

10

Gravely 07400126

SCR,TAP .375-16X.50 HWH TR ZCC

$1.49

$

In Stock, Qty 20+

0
