994150 - Gravely Pro-Stance 48" Stand-On Mower, Kawasaki FX (SN: 000101 & Above) Tower and Dash Parts Diagram

Pro-Stance 48" Stand-On Mower, Kawasaki FX

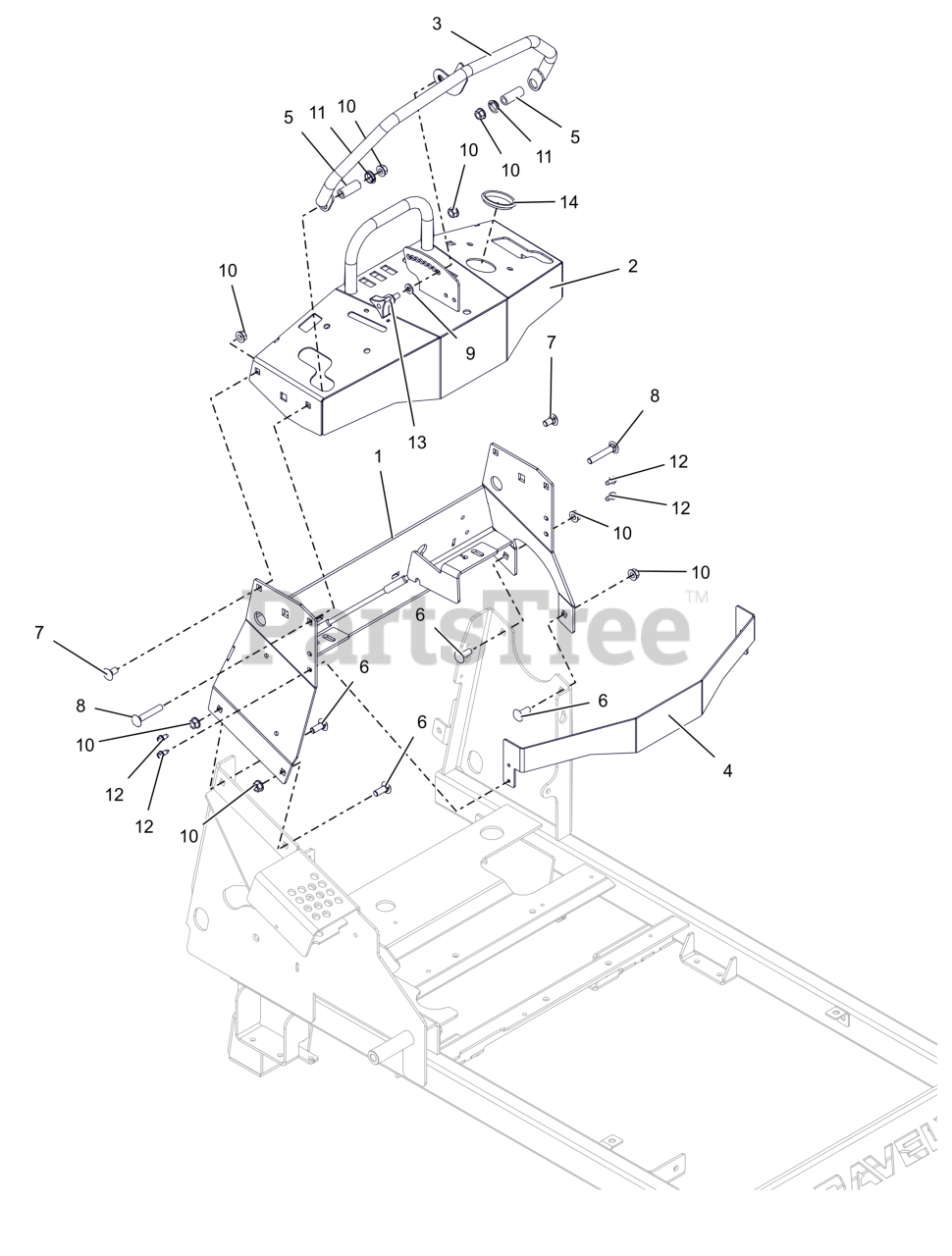

Tower and Dash Parts Diagram

  • Title

1

Gravely 59404900

KIT,PROSTANCE TOWER WITH DECAL

$

$

Not available

2

Gravely 59404700

WLDMT, DASH (RED)

$

$

Not available

3

Gravely 05190651

WLDMT, CRUISE BAR

$103.99

$

Usually ships in 4-12 days

0

4

Gravely 05259251

PLATE, DASH - ACCENT (BLACK)

$

$

Not available

5

Gravely 03954800

SPACER, .375 X .625 X 1.54

$6.49

$

Usually ships in 4-12 days

0

6

Gravely 06200235

BLT,RHSSN .38-16X1.00 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

7

Gravely 06200312

BLT, RHSN .38-16X.750 G5 ZCC

$1.49

$

In Stock, only 4 left!

0

8

Gravely 06200301

BLT,RHSN .38-16X2.25 G5 ZCC

$3.99

$

In Stock, only 2 left!

0

9

Gravely 06401017

WSHR,FLT .344X.688X.065 ZCC

$0.99

$

In Stock, Qty 20+

0

10

Gravely 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

11

Gravely 05500021

BUSHING, POLYLINER-.63 SNAPIN

$2.99

$

In Stock, Qty 13

0

12

Gravely 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

13

Gravely 07500008

KNOB,WING STUD 5/16-18 X .75

$5.99

$

In Stock, Qty 20+

0

14

Gravely 07500433

GROMMET, RUBBER 1.89 ID

$

$

Not available
