994149 - Gravely Pro-Stance 36" Stand-On Mower, Kawasaki FS (SN: 002000 & Above) Engine and Frame Parts Diagram

Pro-Stance 36" Stand-On Mower, Kawasaki FS

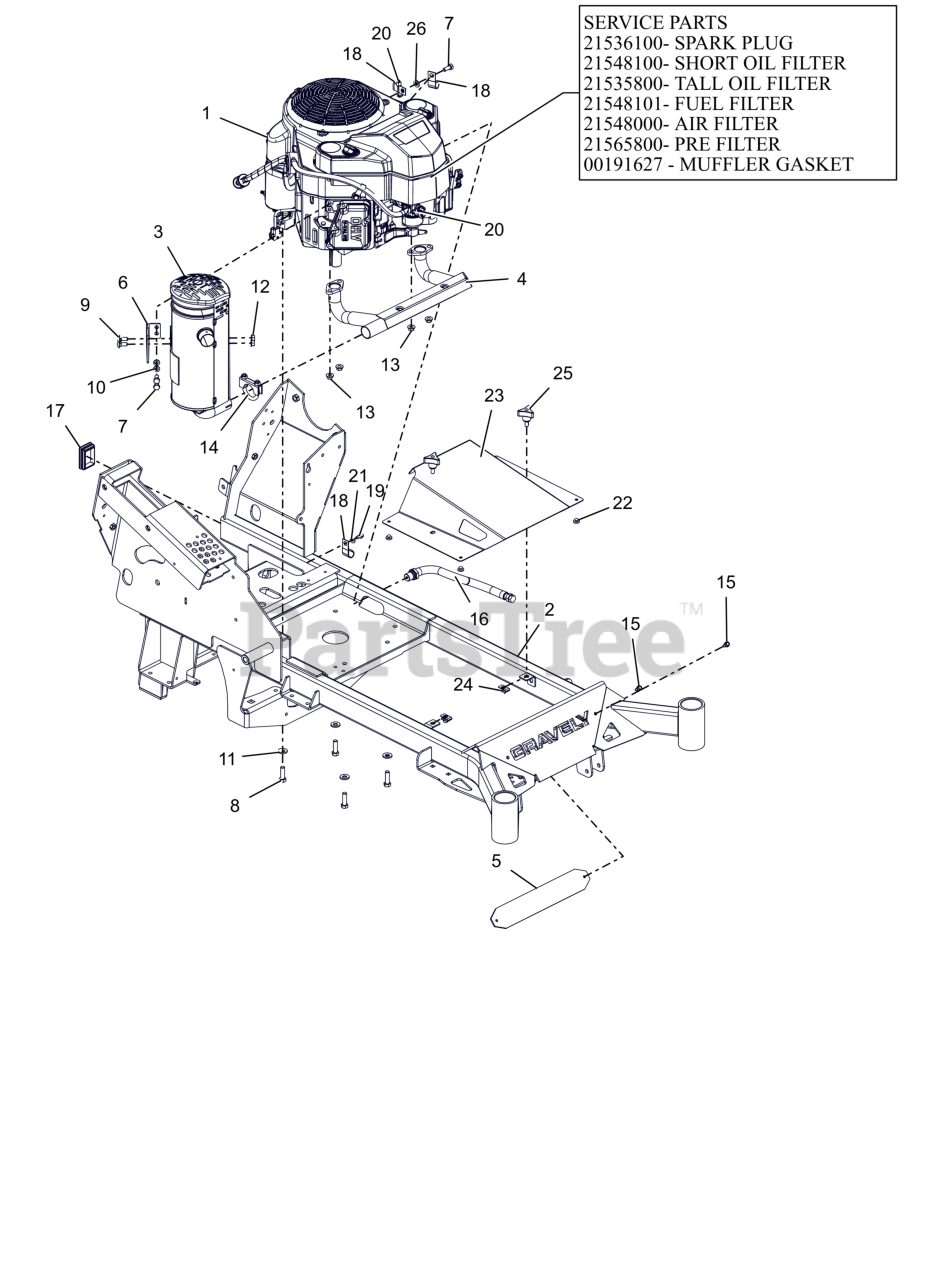

Engine and Frame Parts Diagram

  • Title

1

Gravely 08200921

ENG. KAW FS600

$

$

Not available

1

Gravely 21536100

PLUG, SPARK

Note: Service Part Component

$3.49

$

In Stock, only 2 left!

0

1

Gravely 21548100

OIL FILTER, KAWASAKI FR
(Superseded to 49065-0721)

Note: Service Part Component

$18.99

$

In Stock, Qty 20+

0

1

Gravely 21535800

FILTER,OIL - KAW
(Superseded to 49065-0724)

Note: Service Part Component

$18.99

$

In Stock, Qty 20+

0

1

Gravely 21548101

FUEL FILTER-KAWASAKI FR
(Superseded to 21573800)

Note: Service Part Component

$

$

Not available

1

Gravely 21548000

AIR FILTER, KAWASAKI FR

Note: Service Part Component

$17.99

$

In Stock, Qty 20+

0

1

Gravely 21565800

PRE FILTER, KAWASAKI FS

Note: Service Part Component

$8.99

$

Usually ships in 4-12 days

0

1

Gravely 00191627

GASKET, MUFFLER S/O

Note: Service Part Component

$7.99

$

In Stock, only 2 left!

0

2

Gravely 05246753

WLDMT, PRO STANCE 36" FRAME

$1450.99

$

Usually ships in 4-12 days

0

3

Gravely 05192200

MUFFLER, PROSTANCE

$238.99

$

Usually ships in 4-12 days

0

4

Gravely 05258900

MANIFOLD PRO STANCE 32-36" EXHAUST

$

$

Not available

5

Gravely 05171751

BACK, NAMEPLATE

$

$

Not available

6

Gravely 05192851

BRKT, MUFFLER MOUNT - FT730

$36.99

$

Usually ships in 4-12 days

0

7

Gravely 05901628

BLT, HEX M8-1.25X20 G8.8 ZCC

$

$

Not available

8

Gravely 05901808

BLT, HEX .38-16X1.25 G5 ZCC NT

$1.99

$

In Stock, Qty 11

0

9

Gravely 06200232

BLT,RHSN .31-18X.75 G5 ZCC

$2.49

$

In Stock, Qty 20+

0

10

Gravely 06300119

WSHR,LK-REG .312X.078 ZCC

$0.99

$

In Stock, Qty 20+

0

11

Gravely 06400927

WASHER, 3/8" SPRING DISC

$3.49

$

In Stock, only 2 left!

0

12

Gravely 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

13

Gravely 06500919

NUT-LK-TOP-FLG M8 ZCC

$2.49

$

In Stock, Qty 18

0

14

Gravely 06900722

CLAMP, MUFFLER - 1.438
(Superseded to 06920900)

$6.99

$

In Stock, only 1 left!

0

15

Gravely 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

16

Gravely 07001730

HOSE, OIL DRAIN

$21.99

$

Usually ships in 4-12 days

0

17

Gravely 07500432

PLUG, RECT 1.575 x 2.362

$11.99

$

Usually ships in 4-12 days

0

18

Gravely 06916000

J-CLAMP

$2.49

$

Usually ships in 4-12 days

0

19

Gravely 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

20

Gravely 00111910

CABLE TIE, .15 X 8.50

$

$

Not available

21

Gravely 06401001

WSHR,FLT .281X.625X.065 ZCC

$0.99

$

In Stock, Qty 20+

0

22

Gravely 07503100

BUMPER GROMMET

$3.49

$

In Stock, only 3 left!

0

23

Gravely 05257100

COVER, BELT (RED)

$

$

Not available

24

Gravely 07000829

NUT-CLIP RETAINER 5/16-18X.56

$

$

Not available

25

Gravely 07500008

KNOB,WING STUD 5/16-18 X .75

$5.99

$

In Stock, Qty 20+

0

26

Gravely 06401017

WSHR,FLT .344X.688X.065 ZCC

$0.99

$

In Stock, Qty 20+

0
