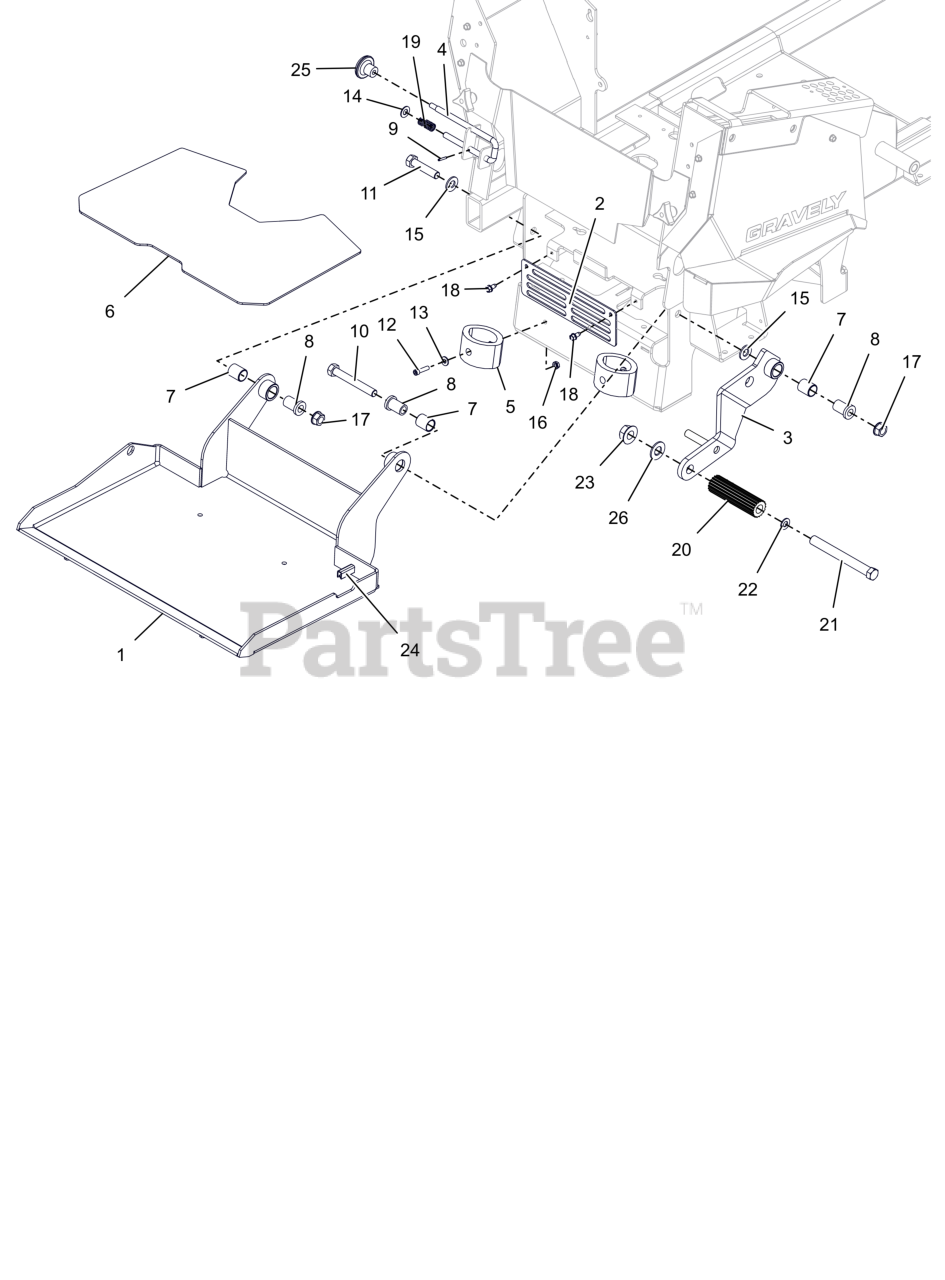

994149 - Gravely Pro-Stance 36" Stand-On Mower, Kawasaki FS (SN: 000101 - 001999) operator Platform Parts Diagram

Pro-Stance 36" Stand-On Mower, Kawasaki FS

operator Platform Parts Diagram

  • Title

1

Gravely 05260151

PLATFORM, 32-36" OPERATOR (BLACK)

$258.99

$

Usually ships in 4-12 days

0

2

Gravely 05268553

GUARD, FOOT (RED)

$34.99

$

Usually ships in 4-12 days

0

3

Gravely 05272651

WLDMT, DECK LIFT FOOT ASSIST (BLACK)

$155.99

$

Usually ships in 4-12 days

0

4

Gravely 05266400

PIN, PLATFORM LOCK

$26.99

$

In Stock, only 1 left!

0

5

Gravely 05255200

BUMPER, PLATFORM

$

$

Not available

6

Gravely 05258700

TAPE, OPERATOR PLATFORM GRIP

$113.99

$

Usually ships in 4-12 days

0

7

Gravely 05435900

BRG, .750 X .875 X 1.000

$5.99

$

In Stock, only 4 left!

0

8

Gravely 05527200

BSHG-FLG .515X.746X1.290X1.000

$29.99

$

Usually ships in 4-12 days

0

9

Gravely 05803400

PIN-ROLL .125X.75

$0.99

$

In Stock, Qty 16

0

10

Gravely 05901703

BLT,HEX .50-13X3.75 G5 ZCC

$5.99

$

Usually ships in 4-12 days

0

11

Gravely 05901835

BLT, HEX .50-13X2.25 G5 ZCC

$3.49

$

In Stock, Qty 6

0

12

Gravely 05902033

SCR, SKH .25-20X1.00

$1.49

$

Usually ships in 4-12 days

0

13

Gravely 06401001

WSHR,FLT .281X.625X.065 ZCC

$0.99

$

In Stock, Qty 20+

0

14

Gravely 06401129

WSHR-FL-STL 0.406X0.812X0.055 HRD

$1.49

$

In Stock, Qty 5

0

15

Gravely 06401015

WSHR,FLT .531X1.062X.095 ZCC

$0.99

$

In Stock, Qty 20+

0

16

Gravely 06500921

NUT-KEPS .250-20 ZCC

$1.49

$

In Stock, only 1 left!

0

17

Gravely 06500902

NUT-LK-CTR-FLG .500-13 GG ZCC

$1.49

$

In Stock, Qty 20+

0

18

Gravely 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

19

Gravely 08300028

SPRING, COMPRESSION

$4.99

$

In Stock, Qty 7

0

20

Gravely 05120951

ROD, FOOT PEDAL (BLACK)

$

$

Not available

21

Gravely 05901730

BLT, HEX .62-11X5.50 G5 FBP

$6.99

$

Usually ships in 4-12 days

0

22

Gravely 06401013

WSHR,FLT .406X.812X.065 ZCC

$0.99

$

In Stock, Qty 20+

0

23

Gravely 06500835

NUT,FLG-TOP LK .625-11 FBP

$6.99

$

Usually ships in 4-12 days

0

24

Gravely 00918200

STRIP, COWL

$5.99

$

Usually ships in 4-12 days

0

25

Gravely 07539900

KNOB, PUSH-PULL .312-18

$6.99

$

In Stock, only 1 left!

0

26

Gravely 06401039

WSHRFLT 5/8SAE CARBHARD FBP

$3.99

$

Usually ships in 4-12 days

0
