994149 - Gravely Pro-Stance 36" Stand-On Mower, Kawasaki FS (SN: 000101 - 001999) Drive Controls Parts Diagram

Pro-Stance 36" Stand-On Mower, Kawasaki FS

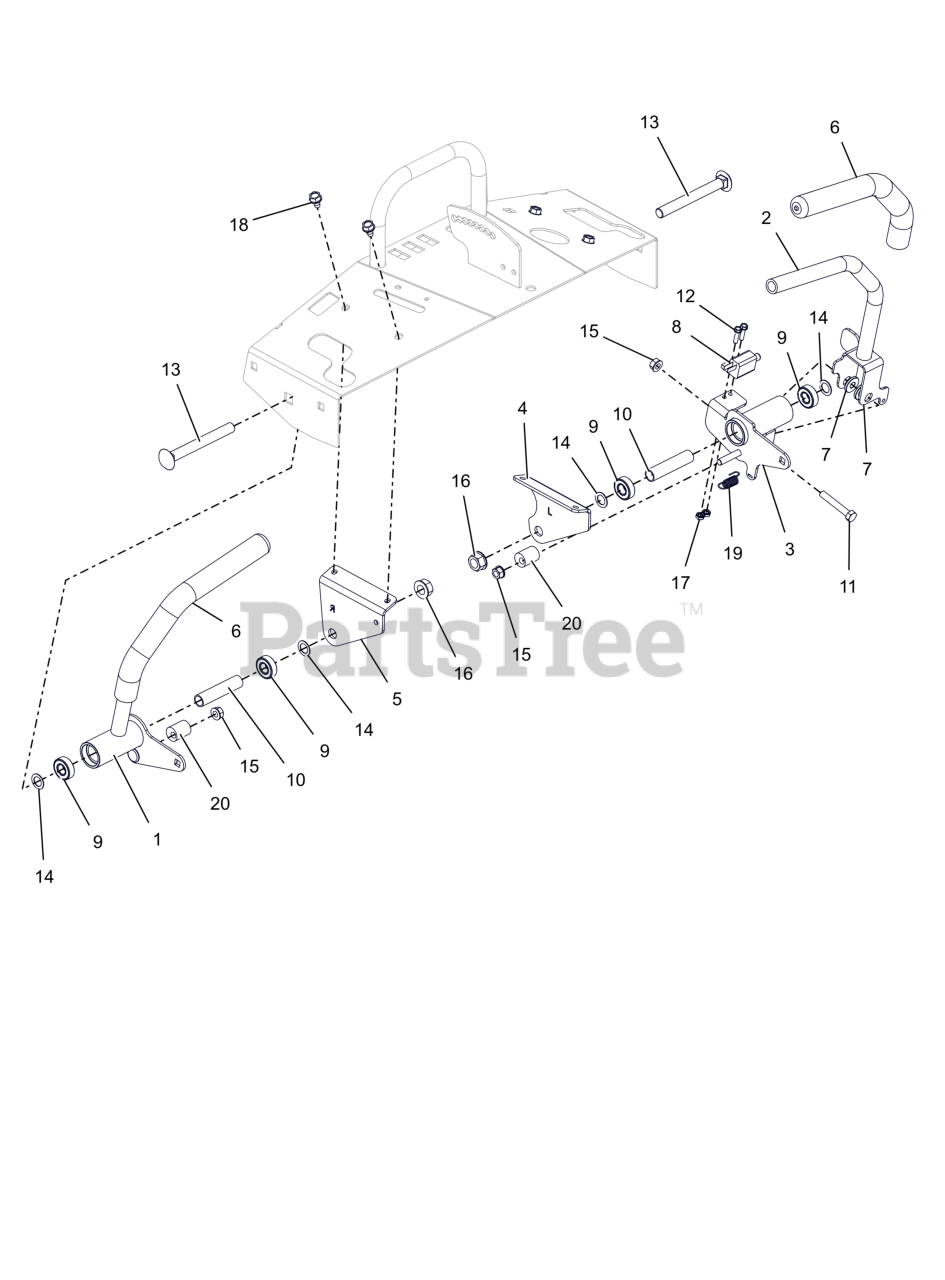

Drive Controls Parts Diagram

  • Title

1

Gravely 05190751

WLDMT, RH DRIVE CONTROL (BLACK)

$201.99

$

Usually ships in 4-12 days

0

2

Gravely 05190851

WLDMT, LH HANDLE ASM (BLACK)

$139.99

$

Usually ships in 4-12 days

0

3

Gravely 05190951

WLDMT, LH DRIVE CONTROL (BLACK)

$155.99

$

Usually ships in 4-12 days

0

4

Gravely 05194251

BRKT, LH DRIVE CONTROL MTG

$22.99

$

Usually ships in 4-12 days

0

5

Gravely 05194351

BRKT, RH DRIVE CONTROL MTG

$22.99

$

Usually ships in 4-12 days

0

6

Gravely 00675200

GRIP, HANDLEBAR

$9.49

$

In Stock, only 1 left!

0

7

Gravely 01305900

BSHG, FLG .325X.499X.26X.88

$2.49

$

In Stock, only 1 left!

0

8

Gravely 03657100

SWITCH- SINGLE POLE N.O.

$9.49

$

In Stock, only 2 left!

0

9

Gravely 05400007

BEARING, .500X1.125X.375

$9.49

$

Usually ships in 4-12 days

0

10

Gravely 05501332

SPCR, .510 X .625 X 2.75

$17.99

$

Usually ships in 4-12 days

0

11

Gravely 05901805

BLT, HEX .31-18X2.00 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

12

Gravely 05901837

BLT, HWH #10-24X.75 ZCC

$2.49

$

In Stock, Qty 15

0

13

Gravely 06200240

BLT,RHSN .50-13X4.50 G5 ZCC
(Superseded to 06200505)

$5.99

$

Usually ships in 4-12 days

0

14

Gravely 06401133

WSHR-FL-STL 0.52X0.81X0.033 ZCC

$3.49

$

Usually ships in 4-12 days

0

15

Gravely 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

16

Gravely 06500902

NUT-LK-CTR-FLG .500-13 GG ZCC

$1.49

$

In Stock, Qty 20+

0

17

Gravely 06500934

NUT-KEPS 10-24

$3.99

$

Usually ships in 4-12 days

0

18

Gravely 07400124

SCR,TAP .312-18X.50 HWH TR ZCC

$1.49

$

In Stock, Qty 20+

0

19

Gravely 08300036

SPRING, EXT. .043X.438X1.64

$2.49

$

In Stock, only 4 left!

0

20

Gravely 09235700

ECCENTRIC

$4.99

$

Usually ships in 4-12 days

0
