994147 - Gravely Pro-Stance 60" Stand-On Mower, Kawasaki FX, CARB (SN: 020000 & Above) Deck, Belt, Blades and Spindles - 60" Parts Diagram

Pro-Stance 60" Stand-On Mower, Kawasaki FX, CARB

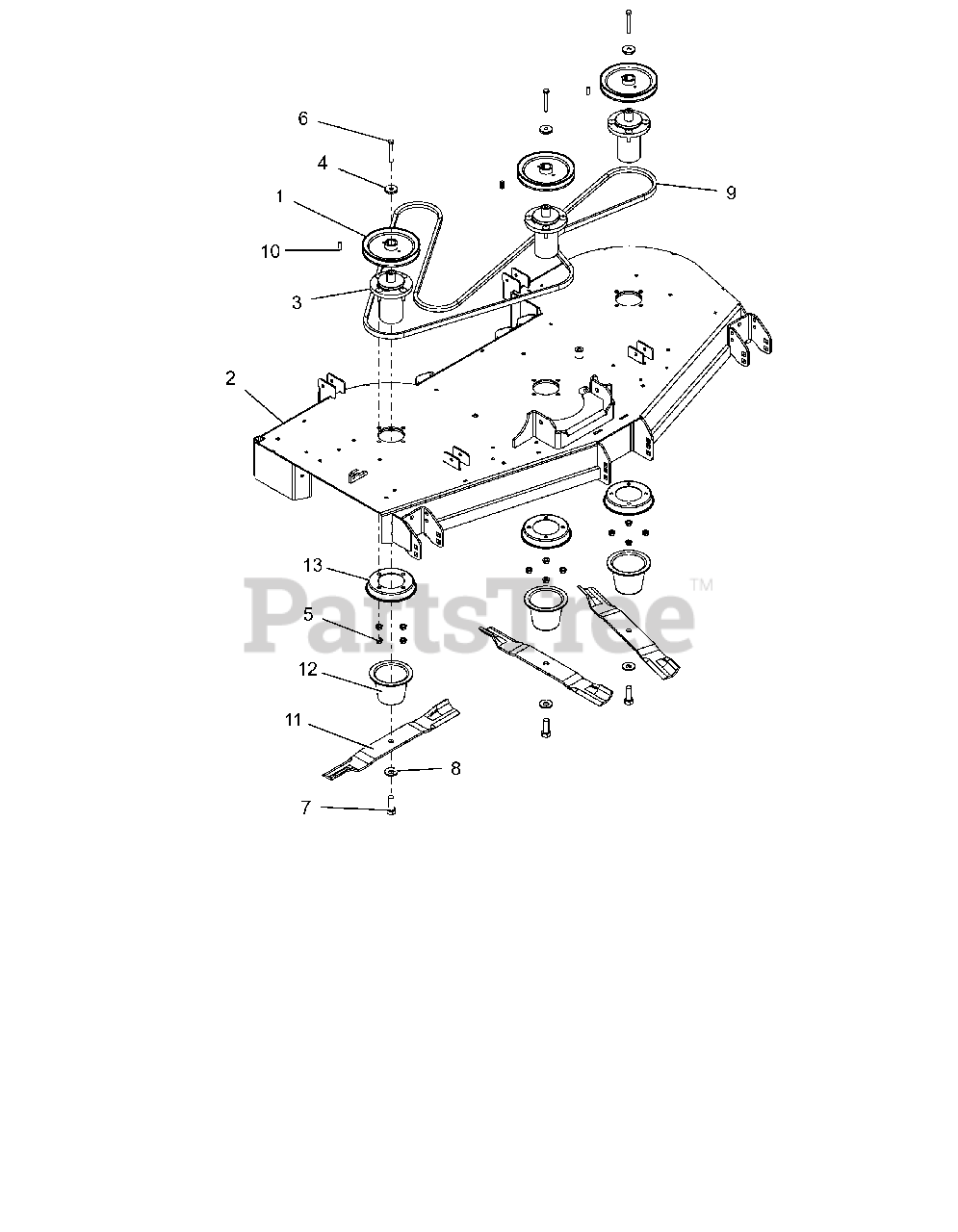

Deck, Belt, Blades and Spindles - 60" Parts Diagram

  • Title

1

Gravely 07343167

PULLEY, 1.00 ID X 6.75 OD

$68.99

$

Usually ships in 4-12 days

0

2

Gravely 59404200

KIT, 60" MOWER DECK W DECALS

$1086.99

$

Usually ships in 4-12 days

0

3

Gravely 68830300

ASM, ALUM SPINDLE

$

$

Currently unavailable

4

Gravely 04530500

RETAINER, SHEAVE

$7.99

$

In Stock, Qty 20+

0

5

Gravely 06534800

NUT-LK-CTR-FLG .38-16 YWZC
(Superseded to 06500901)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 05900013

BLT-HEX .38-16X1.0 GR8 YZ EP30
(Superseded to 05901721)

$1.99

$

In Stock, Qty 20+

0

7

Gravely 05978900

BLT-HEX .62-18X1.75 GR8 YWZC
(Superseded to 05901822)

$3.49

$

In Stock, Qty 20+

0

8

Gravely 06445700

WSHR-BLVL .669X1.535X.138

$4.99

$

In Stock, Qty 6

0

9

Gravely 07200713

BELT, B-SECTION EPDM RAW EDGE

$131.99

$

In Stock, only 2 left!

0

10

Gravely 06611200

KEY, SQ .25X.25X1.00 RC 40-50

$2.99

$

In Stock, Qty 16

0

11

Gravely 09081200

BLADE, MOWER (20.50")

$29.99

$

In Stock, Qty 20+

0

12

Gravely 05011500

GUARD, SPINDLE LOWER

$

$

Not available

13

Gravely 05017000

GUARD, SPINDLE TOP

$

$

Not available
