994144 - Gravely Pro-Stance 48" Stand-On Mower, Kawasaki FX, CARB (SN: 000101 - 019999) Deck, Belt, Blades And Spindles - 48" Parts Diagram

Pro-Stance 48" Stand-On Mower, Kawasaki FX, CARB

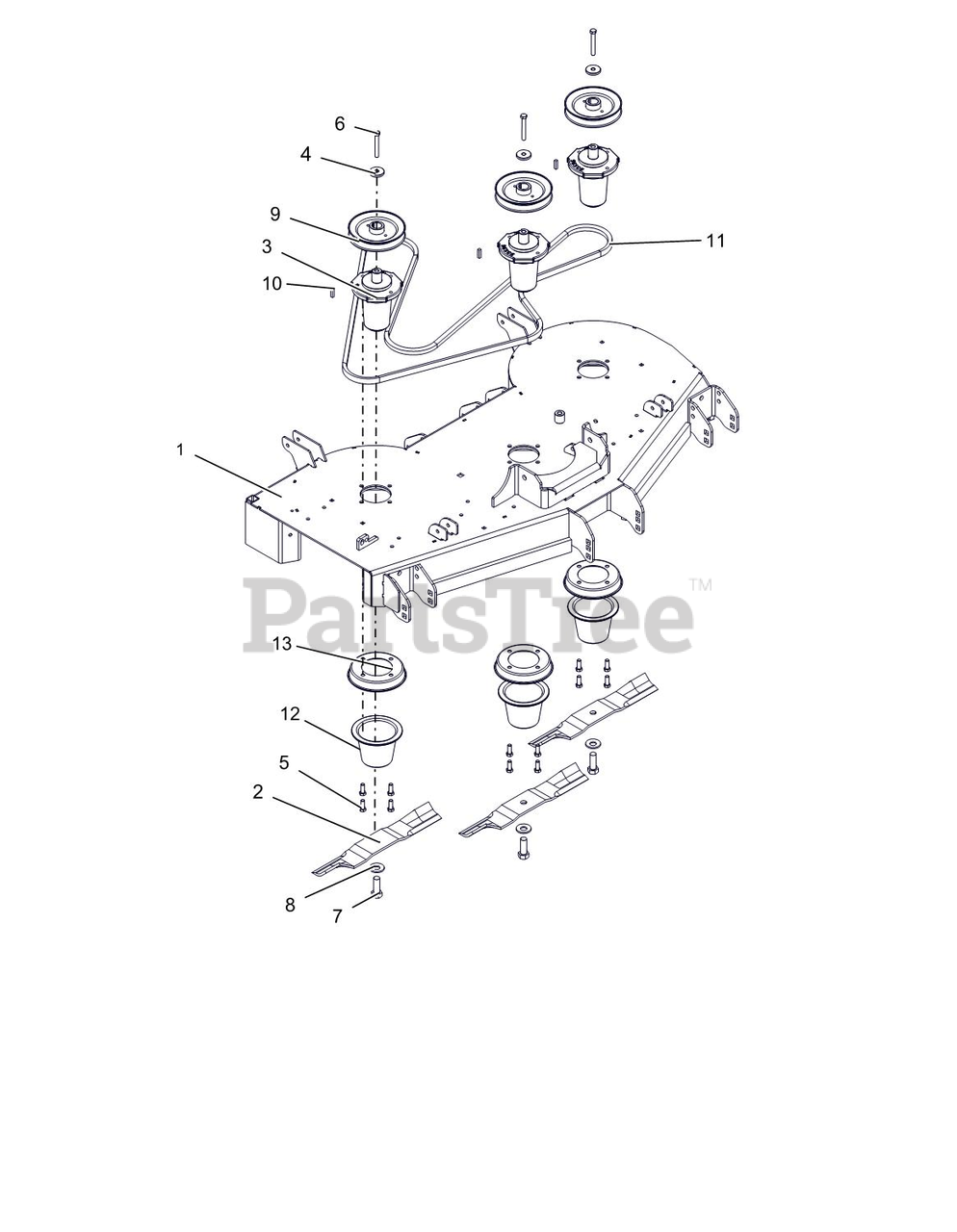

Deck, Belt, Blades And Spindles - 48" Parts Diagram

  • Title

1

Gravely 59404000

KIT, 48" MOWER DECK W DECALS

$828.99

$

Usually ships in 4-12 days

0

2

Gravely 00450200

BLADE, 16.19" MOWER (HI-LIFT)

$29.99

$

In Stock, Qty 20+

0

3

Gravely 59225700

ASM, MAINT FREE SPINDLE
(Superseded to 58810800)

$239.99

$

In Stock, Qty 20+

0

4

Gravely 04530500

RETAINER, SHEAVE

$7.99

$

In Stock, Qty 20+

0

5

Gravely 05900013

BLT-HEX .38-16X1.0 GR8 YZ EP30
(Superseded to 05901721)

$1.99

$

In Stock, Qty 20+

0

6

Gravely 05963000

BLT-HEX .38-16X2.75 GR8 YWZC
(Superseded to 05901813)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 05978900

BLT-HEX .62-18X1.75 GR8 YWZC
(Superseded to 05901822)

$3.49

$

In Stock, Qty 20+

0

8

Gravely 06445700

WSHR-BLVL .669X1.535X.138

$4.99

$

In Stock, only 3 left!

0

9

Gravely 07343267

PULLEY, 1.00 ID X 5.75 OD
(Superseded to 07343251)

$91.99

$

Usually ships in 4-12 days

0

10

Gravely 06611200

KEY, SQ .25X.25X1.00 RC 40-50

$2.99

$

In Stock, Qty 15

0

11

Gravely 07200706

BELT, B-SECTI0N EPDM RAW EDGE

$116.99

$

In Stock, only 1 left!

0

12

Gravely 05011500

GUARD, SPINDLE LOWER

$

$

Not available

13

Gravely 05017000

GUARD, SPINDLE TOP

$

$

Not available
