994142 - Gravely Pro-Stance 52" Stand-On Mower, Kohler EFI (SN: 000101 - 019999) Deck, Belt, Blades And Spindles - 52" Parts Diagram

Pro-Stance 52" Stand-On Mower, Kohler EFI

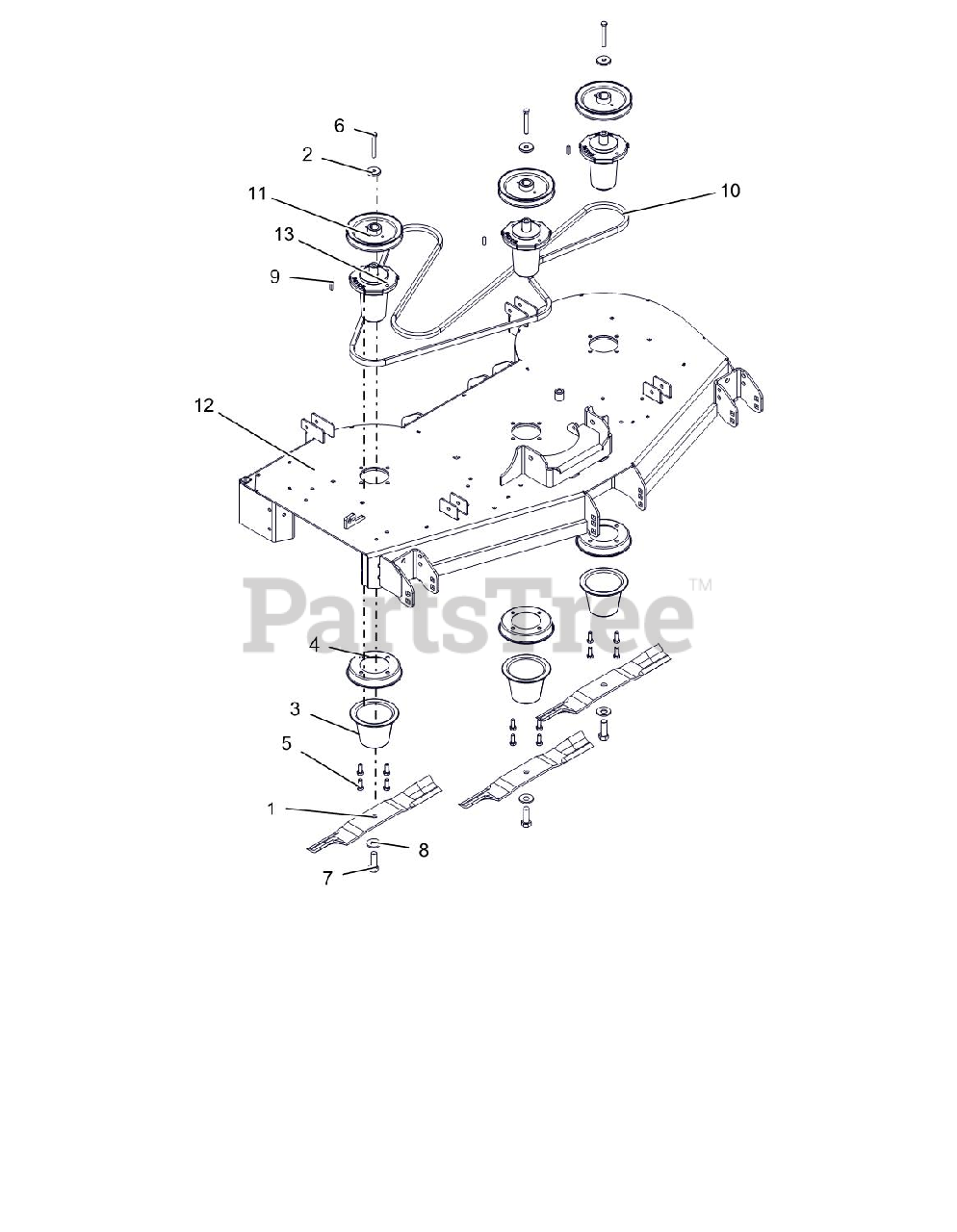

Deck, Belt, Blades And Spindles - 52" Parts Diagram

  • Title

1

Gravely 00450300

BLADE, 18.00" MOWER (HI-LIFT)

$29.99

$

In Stock, Qty 20+

0

2

Gravely 04530500

RETAINER, SHEAVE

$7.99

$

In Stock, Qty 20+

0

3

Gravely 05011500

GUARD, SPINDLE LOWER

$

$

Not available

4

Gravely 05017000

GUARD, SPINDLE TOP

$

$

Not available

5

Gravely 05900013

BLT-HEX .38-16X1.0 GR8 YZ EP30
(Superseded to 05901721)

$1.99

$

In Stock, Qty 20+

0

6

Gravely 05963000

BLT-HEX .38-16X2.75 GR8 YWZC
(Superseded to 05901813)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 05978900

BLT-HEX .62-18X1.75 GR8 YWZC
(Superseded to 05901822)

$3.49

$

In Stock, Qty 20+

0

8

Gravely 06445700

WSHR-BLVL .669X1.535X.138

$4.99

$

In Stock, only 3 left!

0

9

Gravely 06611200

KEY, SQ .25X.25X1.00 RC 40-50

$2.99

$

In Stock, Qty 15

0

10

Gravely 07200712

BELT, B-SECTION EPDM RAW EDGE

$126.99

$

In Stock, only 1 left!

0

11

Gravely 07342967

PULLEY, 1.00 ID X 6.00 OD

$91.99

$

Usually ships in 4-12 days

0

12

Gravely 59404100

KIT, 52" MOWER DECK W DECALS

$1008.99

$

Usually ships in 4-12 days

0

13

Gravely 59225700

ASM, MAINT FREE SPINDLE
(Superseded to 58810800)

$239.99

$

In Stock, Qty 20+

0
