994139 - Gravely Pro-Stance 36" Stand-On Mower, Kawasaki FX, CARB (SN: 020000 & Above) Fuel System - CARB Parts Diagram

Pro-Stance 36" Stand-On Mower, Kawasaki FX, CARB

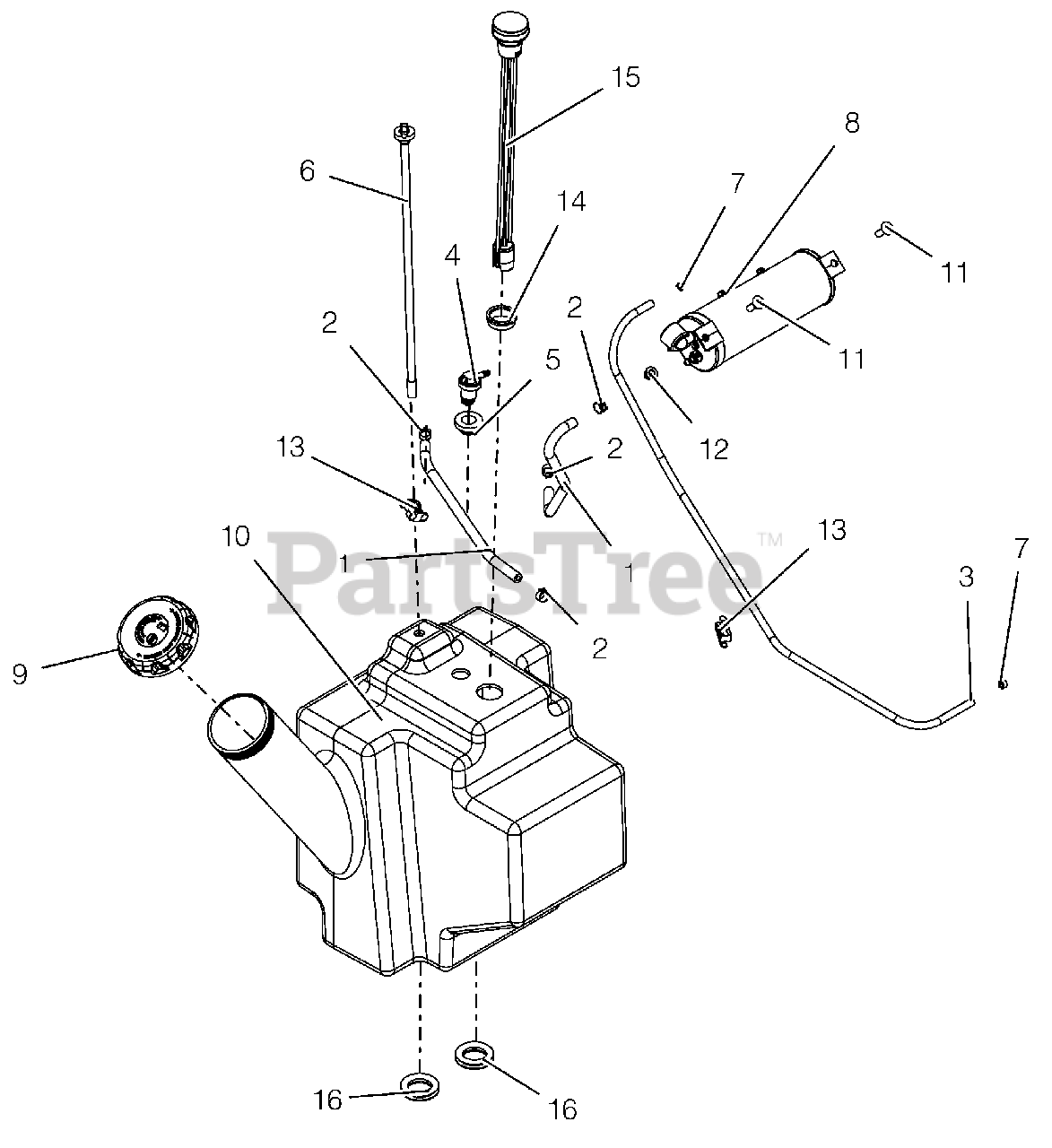

Fuel System - CARB Parts Diagram

  • Title

1

Gravely 03278100

HOSE, .25 LOW-PERM BULK GAS

$1.49

$

In Stock, Qty 20+

0

2

Gravely 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 20+

0

3

Gravely 03375900

HOSE, .188 LOW-PERM BULK GAS

$0.99

$

In Stock, Qty 10

0

4

Gravely 04068910

VALVE, COMBINATION
(Superseded to 05185600)

$17.99

$

In Stock, only 1 left!

0

5

Gravely 04082700

GROMMET, REMOTE VENT NITRILE

$3.49

$

In Stock, Qty 9

0

6

Gravely 04446900

ASS'Y, PROSTANCE FUEL PICK-UP

$

$

Not available

7

Gravely 04097700

CLAMP-HOSE, SPRING .188

$

$

Not available

8

Gravely 04545900

CANISTER, CARBON 9.3G CAP.

$78.99

$

Usually ships in 4-12 days

0

9

Gravely 04558100

CAP, FUEL NONVENT AUTOLOCK

$22.99

$

In Stock, only 1 left!

0

10

Gravely 04594700

ASM, FUEL TANK

$271.99

$

Usually ships in 4-12 days

0

11

Gravely 06216100

@BLT-RDHDSQNK .31-18X1.00 G5YZ
(Superseded to 06200231)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 07001712

CLIP, T, .38-.50

$

$

Not available

14

Gravely 07500221

GROMMET, FUEL GAUGE

$5.99

$

In Stock, only 1 left!

0

15

Gravely 07500311

GAUGE, REMOTE FUEL SEALED 15"

$

$

Not available

16

Gravely 07536800

GROMMET 1.25ID X 1.5OD

$12.99

$

Usually ships in 4-12 days

0
