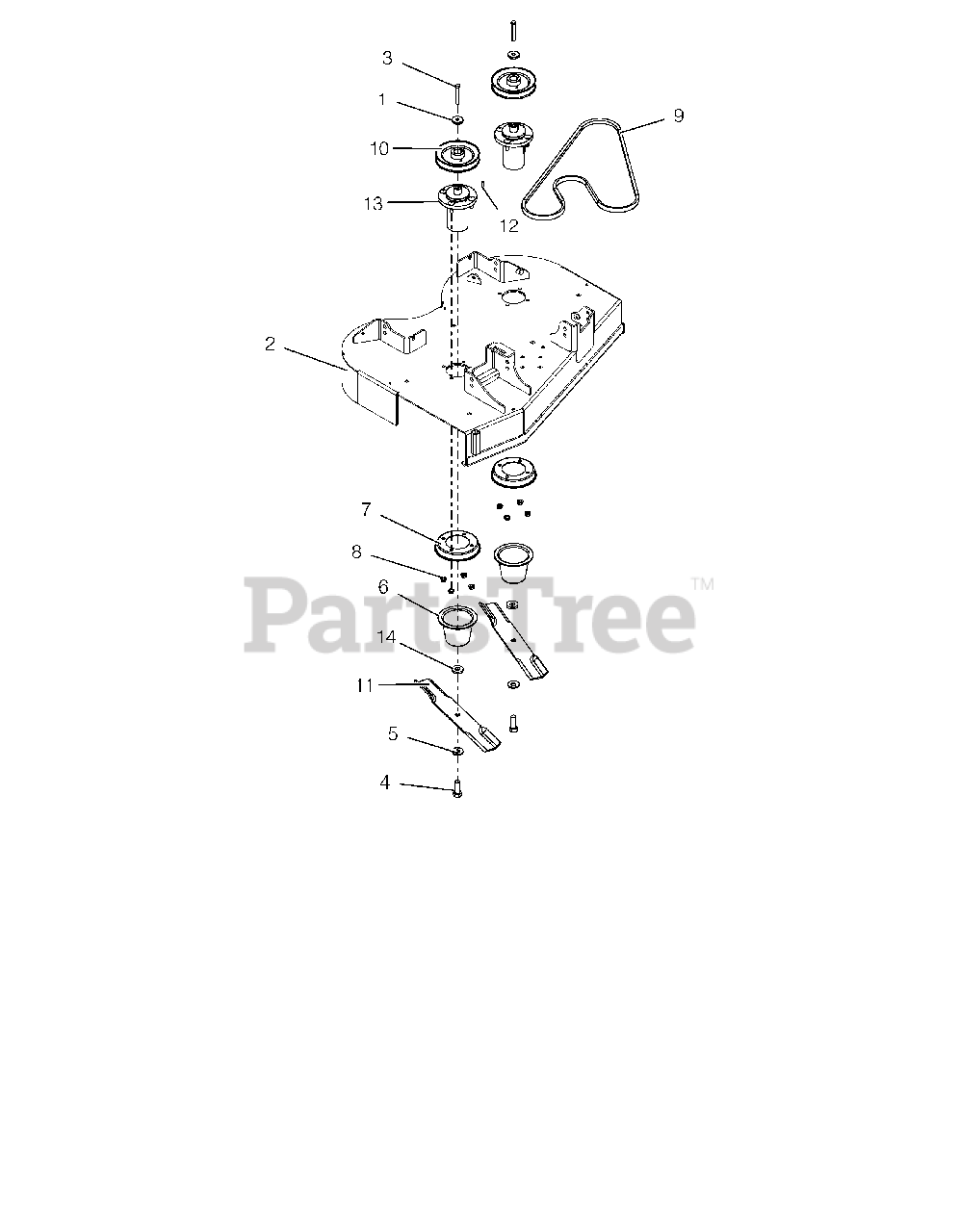

994139 - Gravely Pro-Stance 36" Stand-On Mower, Kawasaki FX, CARB (SN: 020000 & Above) Deck, Belt, Blades And Spindles Parts Diagram

Pro-Stance 36" Stand-On Mower, Kawasaki FX, CARB

Deck, Belt, Blades And Spindles Parts Diagram

  • Title

1

Gravely 04530500

RETAINER, SHEAVE

$7.99

$

In Stock, Qty 20+

0

2

Gravely 58809900

ASM, 36" DECK W/DECALS

$

$

Not available

3

Gravely 05963000

BLT-HEX .38-16X2.75 GR8 YWZC
(Superseded to 05901813)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 05978900

BLT-HEX .62-18X1.75 GR8 YWZC
(Superseded to 05901822)

$3.49

$

In Stock, Qty 20+

0

5

Gravely 06445700

WSHR-BLVL .669X1.535X.138

$4.99

$

In Stock, only 3 left!

0

6

Gravely 05011500

GUARD, SPINDLE LOWER

$

$

Not available

7

Gravely 05017000

GUARD, SPINDLE TOP

$

$

Not available

8

Gravely 06534800

NUT-LK-CTR-FLG .38-16 YWZC
(Superseded to 06500901)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 07200640

BELT, 5L

$64.99

$

In Stock, only 1 left!

0

10

Gravely 07337267

PULLEY, V-1"ID X 5.75" OD

$68.99

$

In Stock, only 2 left!

0

11

Gravely GDU10231

BLADE, 18.000 X .80 LIFT

$30.99

$

In Stock, Qty 20+

0

12

Gravely 06605500

KEY-STR .25X.75X.25

$2.99

$

In Stock, only 1 left!

0

13

Gravely 59114000

ASM, ALUMINUM SPINDLE (SHORT)

$262.99

$

In Stock, only 4 left!

0

14

Gravely 06400913

WSHR-FL-STL .630X1.50X.25 YWZC
(Superseded to 06401033)

$6.99

$

In Stock, only 1 left!

0
